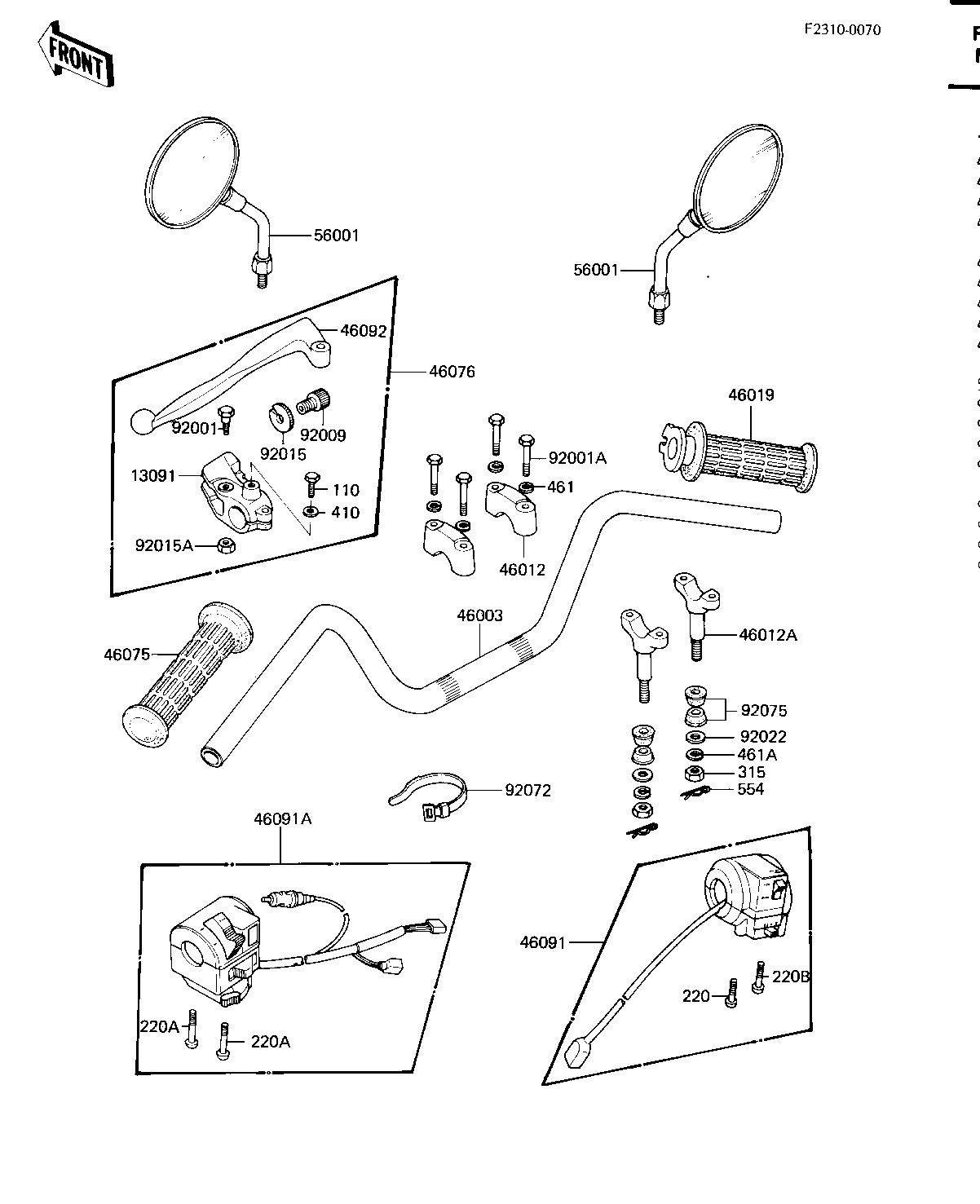

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,CLUTCH LEVER | 13091 | 13091-1046 | 1 | ||
| HANDLEBAR | 46003 | 46003-1098 | 1 | ||
| HOLDER-HANDLEBAR | 46012 | 46012-008 | 2 | ||
| HOLDER-HANDLEBAR LOW | 46012A | 46012-010 | 2 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1015 | 1 | ||
| GRIP,LH | 46075 | 46075-1022 | 1 | ||
| LEVER-ASSY-GRIP,CLTC | 46076 | 46076-1019 | 1 | ||
| HOUSING-ASSY-CNTRL,R | 46091 | 46091-1155 | 1 | ||
| HOUSING-ASSY-CONTROL | 46091A | 46091-1179 | 1 | ||
| LEVER,CLUTCH | 46092 | 46092-1005 | 1 | ||
| MIRROR-ASSY | 56001 | 56001-1340 | 2 | ||
| BOLT,CLUTCH LEVER FI | 92001 | 92001-1075 | 1 | ||
| BOLT 8X38 | 92001A | 92001-1405 | 4 | ||
| SCREW CABLE ADJUST | 92009 | 46055-003 | 1 | ||
| NUT-LOCK | 92015 | 46056-005 | 1 | ||
| NUT | 92015A | 92019-008 | 1 | ||
| WASHER-HANDLEBAR FIT | 92022 | 92022-196 | 2 | ||
| BAND,SHORT | 92072 | 92072-030 | 4 | ||
| DAMPER RUBBER,HANDLE | 92075 | 92075-275 | 4 | ||
| BOLT, HEX HEAD 6X22 | 110 | 110N0622 | 1 | ||
| SCREW PAN HEAD 5X30 | 220 | 220B0530 | 1 | ||
| SCREW-PAN-CROS | 220A | 220B0535 | 2 | ||
| SCREW-PAN-CROS | 220B | 220B0540 | 1 | ||
| NUT 10MM | 315 | 315B1000 | 2 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 1 | ||
| WASHER SPRING 10MM | 461 | 461F1000 | 4 | ||
| WASHER SPRING 10MM | 461A | 461F1000 | 2 | ||
| PIN,SNAP | 554 | 554A0800 | 2 |
