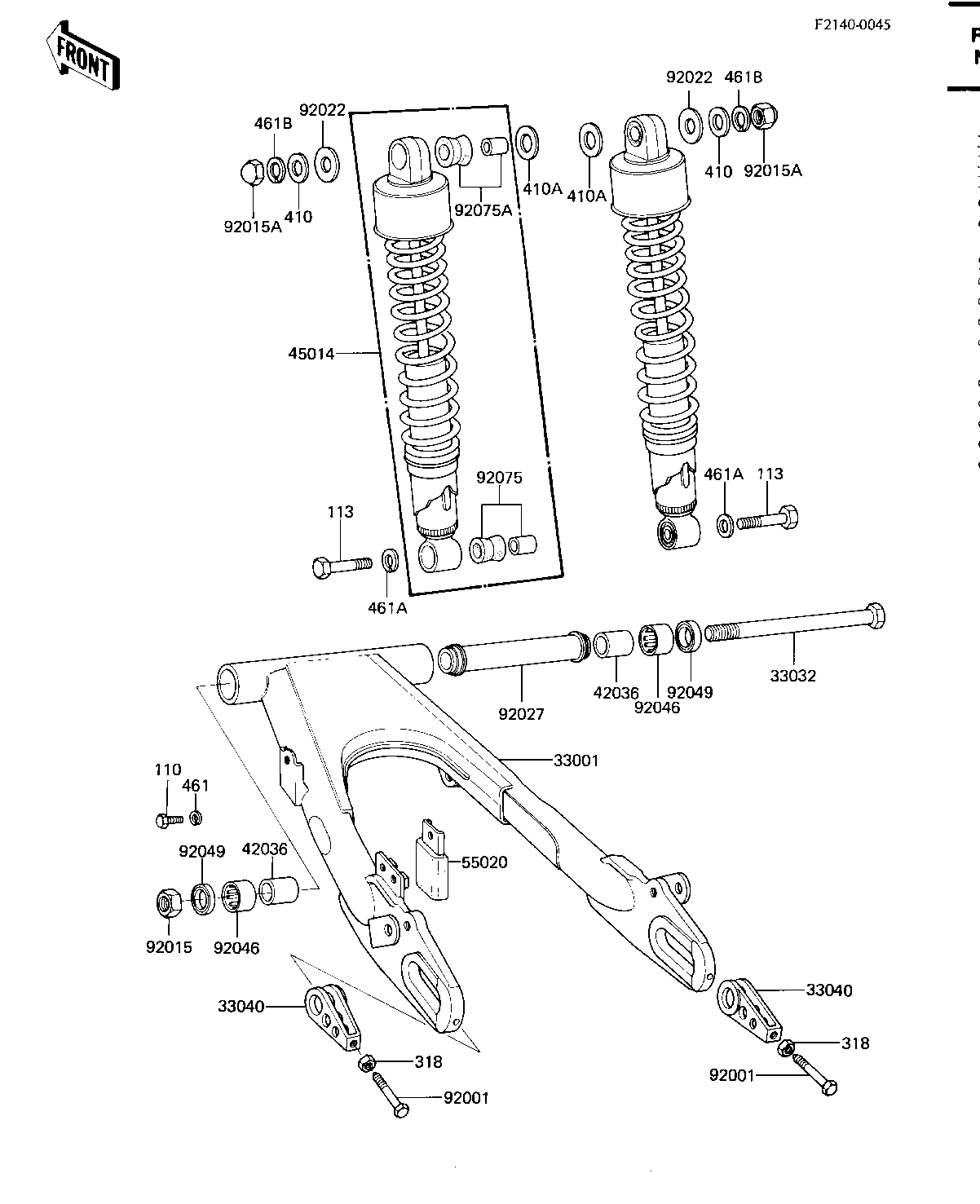

1982 CSR Twin - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-COMP-SWING 33001 33001-1115 1
SHAFT,SWING ARM PIVO 33032 33032-047 1
ADJUSTER,CHAIN 33040 33040-056 2
SLEEVE,SWING ARM 42036 42036-1040 2
SHOCK ABSBR RR 45014 45014-1161 2
GUARD,CHAIN 55020 55020-1152 1
BOLT,8X50 92001 92001-1399 2
NUT-SELF LOCKING 92015 92019-012 1
NUT 12MM 92015A 92020-014 2
WASHER,12.4X28X2.3 92022 92022-1239 2
COLLAR 92027 92027-1364 1
BEARING-NEEDLE 92046 92046-1035 2
SEAL-OIL 92049 92049-1060 2
BUSHING,SHOCK ABSORB 92075 45017-019 4
BUSHING,SHOCK ABSORB 92075A 92075-1141 4
BOLT-UPSET,6X12 110 112G0612 1
BOLT HEX HEAD 10X35 113 113N1035 2
NUT 8MM 318 318B0800 2
WASHER PLAIN 12MM 410 410B1200 2
WASHER PLAIN 14MM 410A 410B1400 2
WASHER SPRING 6MM 461 461F0600 1
WASHER SPRING 10MM 461A 461F1000 2
WASHER SPRING 12MM 461B 461F1200 2
