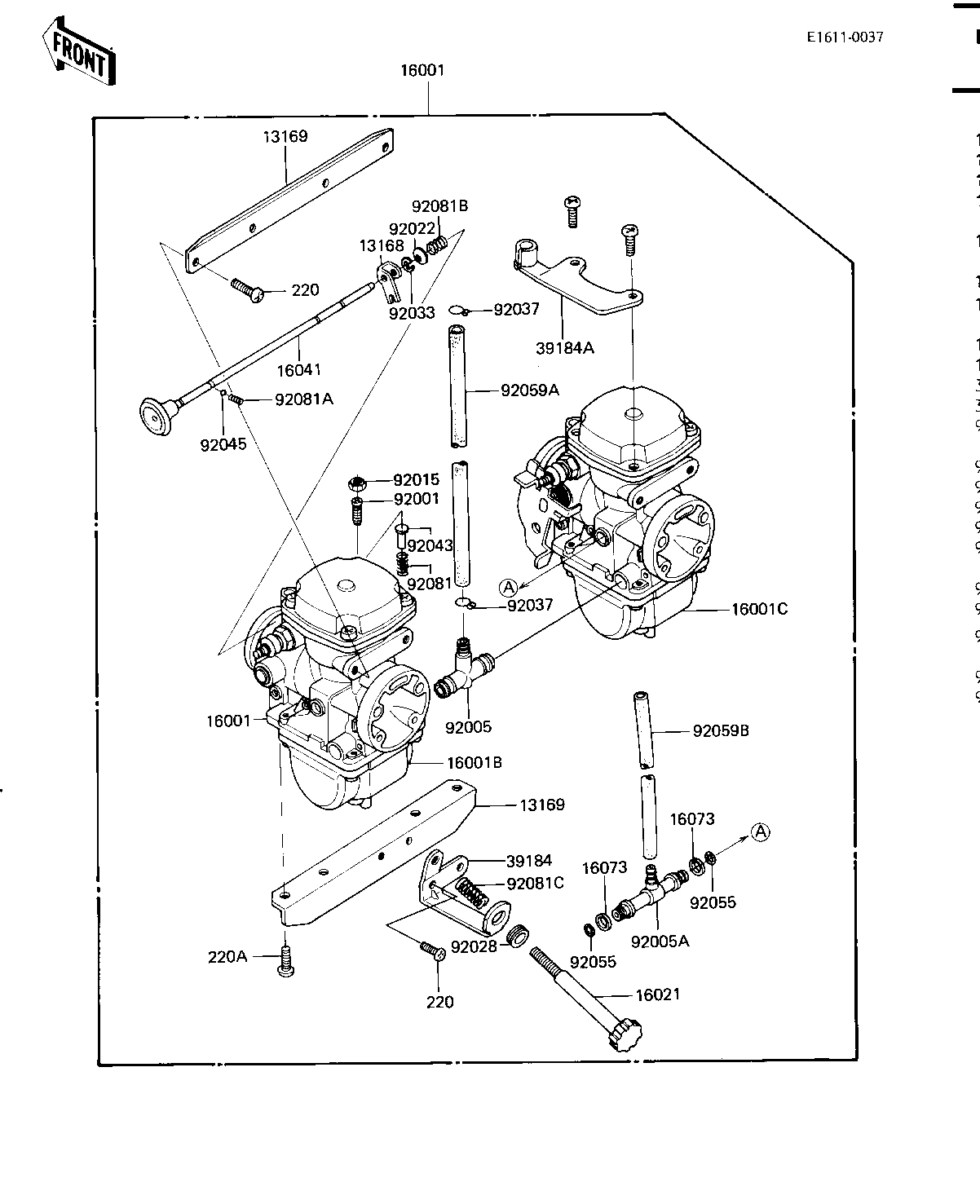

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER,CHOCK | 13168 | 13168-1091 | 2 | ||
| PLATE | 13169 | 13169-1466 | 1 | ||
| PLATE | 13169A | 13169-1467 | 1 | ||
| CARBURETOR | 16001 | 16001-1471 | 1 | ||
| CARBURETOR,L.H | 16001B | 16001-1473 | 1 | ||
| CARBURETOR,R.H | 16001C | 16001-1474 | 1 | ||
| SCREW-THROTTLE STOP | 16021 | 16021-1035 | 1 | ||
| SHAFT-CARBURETOR | 16041 | 16041-1025 | 1 | ||
| INSULATOR | 16073 | 16073-1013 | 2 | ||
| BRACKET-ASSY,IDLING | 39184 | 39184-1007 | 1 | ||
| BRACKET-ASSY | 39184A | 39184-1010 | 1 | ||
| BOLT,ADJUSTING | 92001 | 92001-1447 | 1 | ||
| FITTING | 92005 | 92005-1046 | 1 | ||
| FITTING | 92005A | 92005-1047 | 1 | ||
| NUT,THROTTLE VLV ADS | 92015 | 92015-1119 | 1 | ||
| WASHER,SPRING | 92022 | 92022-1255 | 2 | ||
| BUSHING | 92028 | 92028-1071 | 1 | ||
| RING-SNAP,E | 92033 | 92033-1066 | 2 | ||
| CLAMP,HOSE | 92037 | 92037-1184 | 2 | ||
| PIN,THROTTLE VALVE | 92043 | 92043-1079 | 1 | ||
| BALL,STEEL,1/8" | 92045 | 600A0400 | 2 | ||
| "0" RING | 92055 | 92055-510 | 2 | ||
| TUBE,7.5X12.5X250 | 92059A | 92059-1187 | 1 | ||
| TUBE | 92059B | 92059-1206 | 1 | ||
| SPRING,THROTTLE VALV | 92081 | 92081-1259 | 1 | ||
| SPRING,FAST IDLE SHF | 92081A | 92081-1260 | 2 | ||
| SPRING,CHOCK SHAFT | 92081B | 92081-1364 | 2 | ||
| SPRING | 92081C | 92081-1417 | 1 | ||
| SCREW PAN HEAD 5X8 | 220 | 220B0508 | 5 | ||
| SCREW PAN HEAD 6X14 | 220A | 220B0614 | 4 |
