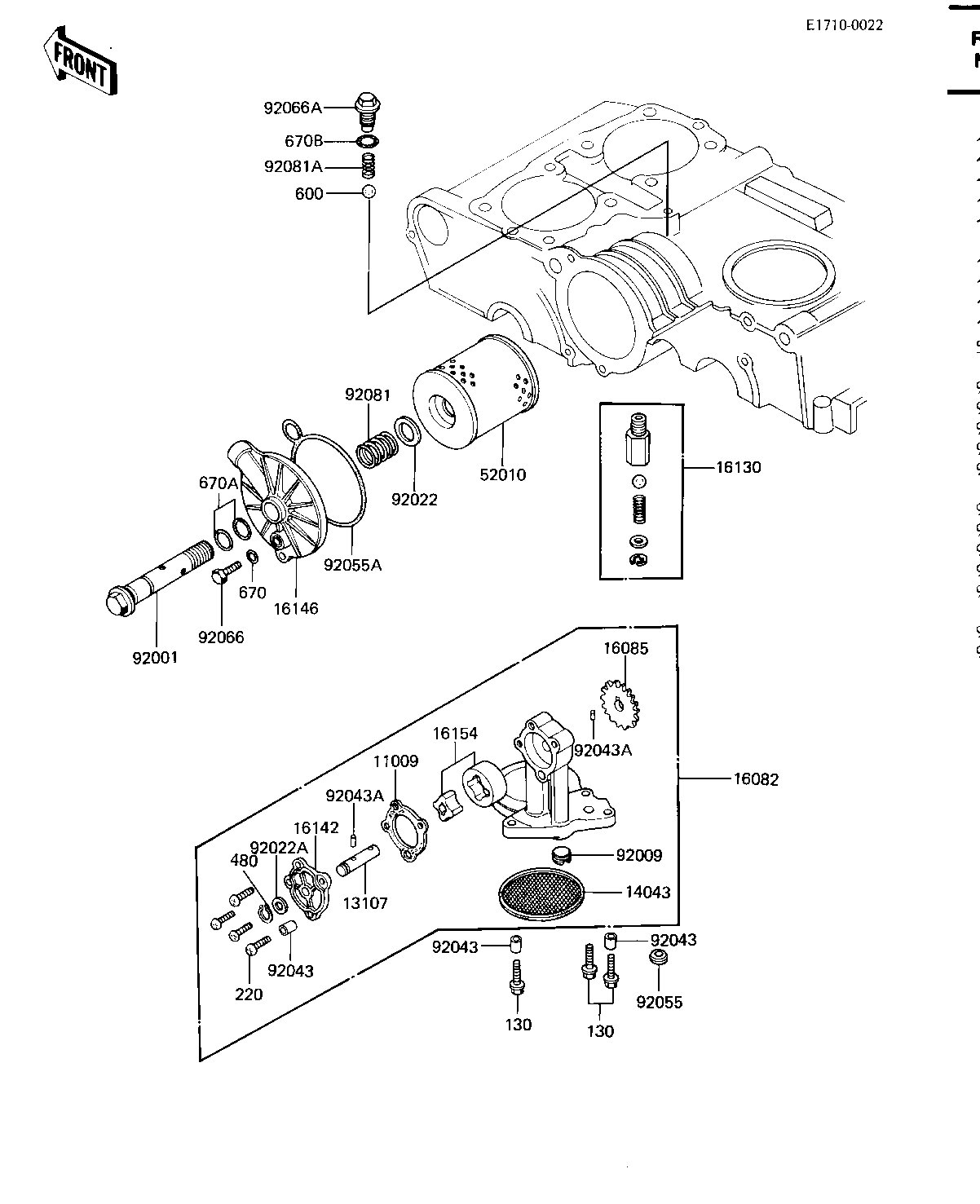

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,OIL PUMP | 11009 | 16145-003 | 1 | ||
| SHAFT,OIL PUMP | 13107 | 16086-004 | 1 | ||
| STRAINER,OIL PUMP | 14043 | 16111-004 | 1 | ||
| OIL PUMP ASSY | 16082 | 16082-062 | 1 | ||
| GEAR,OIL PUMP | 16085 | 16085-024 | 1 | ||
| RELEAF VALVE ASSY | 16130 | 16130-1001 | 1 | ||
| COVER,OIL PUMP | 16142 | 16142-004 | 1 | ||
| COVER,OIL FILTER | 16146 | 16146-002 | 1 | ||
| ROTOR ASSY,OIL PUMP | 16154 | 16154-003 | 1 | ||
| ELEMENT,OIL FILTER | 52010 | 16099-002 | 1 | ||
| BOLT,OIL FILTER | 92001 | 92003-189 | 1 | ||
| SCREW,SLOTTED | 92009 | 92013-008 | 1 | ||
| WASHER,20.5X30X1.0 | 92022 | 92022-1012 | 1 | ||
| WASHER,PLAIN | 92022A | 92022-311 | 1 | ||
| PIN,DOWEL,8X10 | 92043 | 92043-1302 | 3 | ||
| PIN,DOWEL | 92043A | 92042-041 | 2 | ||
| O RING,0.D=18MM | 92055 | 92055-048 | 2 | ||
| "O" RING | 92055A | 92055-084 | 1 | ||
| PLUG,OIL DRAIN | 92066 | 92066-024 | 1 | ||
| PLUG,FILTER COVER | 92066A | 92066-050 | 1 | ||
| SPRING,OIL FILTER | 92081 | 92081-1018 | 1 | ||
| SPRING | 92081A | 92081-109 | 1 | ||
| BOLT,FLANGED,6X40 | 130 | 130G0640 | 3 | ||
| SCREW PAN HEAD 6X22 | 220 | 220B0622 | 4 | ||
| CIRCLIP,11MM | 480 | 480J1100 | 1 | ||
| BALL STEEL 3/8' | 600 | 600A1200 | 1 | ||
| "O" RING,8MM | 670 | 670B1508 | 1 | ||
| "0" RING,16MM | 670A | 670B2016 | 2 | ||
| "0" RING,18MM | 670B | 670B2018 | 1 |
