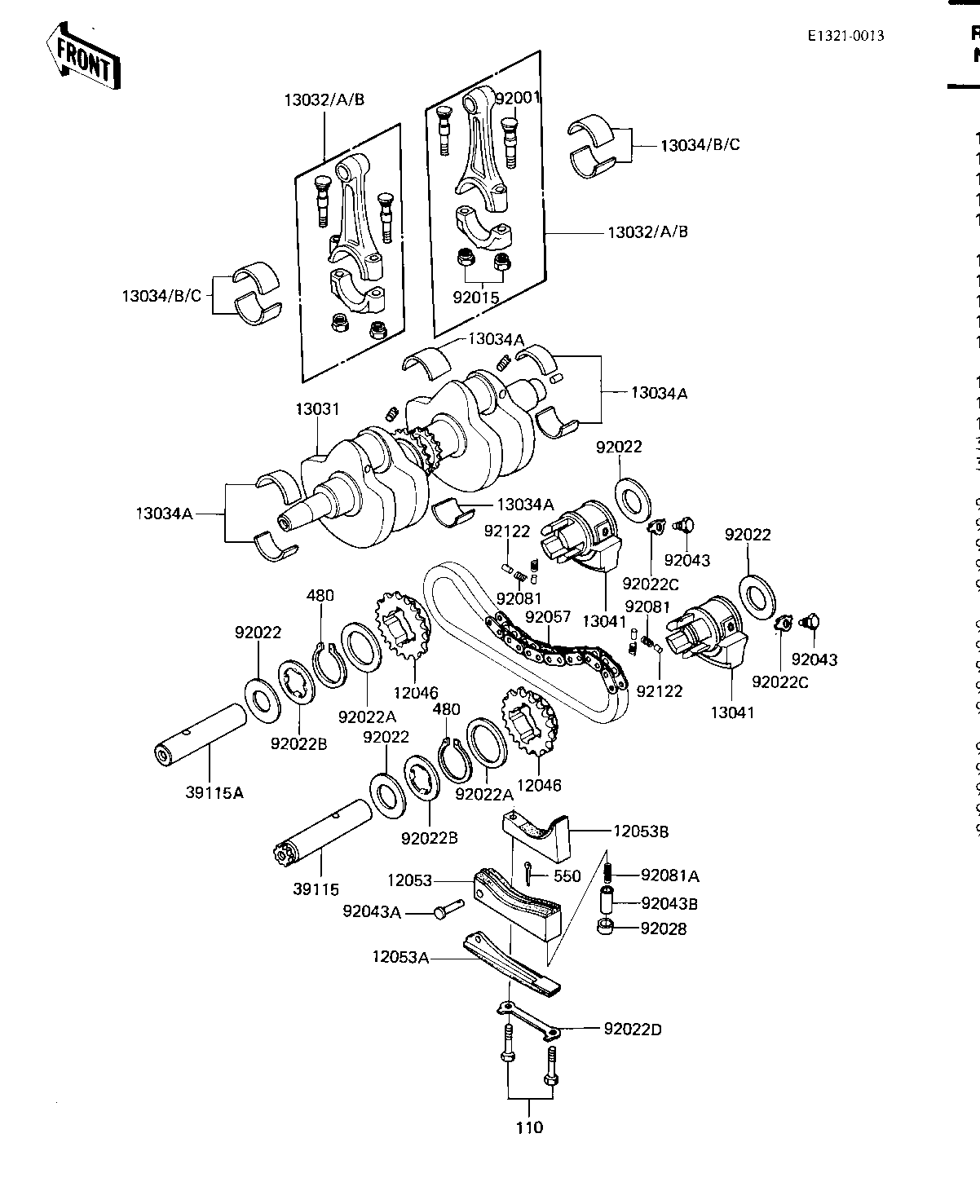

1982 CSR Twin - CRANKSHAFT/BALANCER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,BALANCER 12046 12046-008 2
SLIPPER,CAM CHAIN 12053 12053-013 1
SLIPPER,CAM CHAIN 12053A 12053-014 1
SLIPPER,CAM CHAIN 12053B 12053-022 1
CRANKSHAFT ASSY 13031 13031-1005 1
ROD-CONNECTING 13032 13032-051-MM 2
ROD-CONNECTING 13032A 13032-051-MM 2
ROD-CONNECTING 13032B 13032-051-MM 2
METAL,CON ROD BRG 13034 13034-043 4
METAL,CRANK BRG 13034A 13034-044 6
METAL,CON ROD BRG 13034B 13034-045 4
METAL,CON ROD BRG 13034C 13034-046 4 4
BALANCER 13041 13041-005 2
SHAFT BALANCER W-GEA 39115 12052-007 1
SHAFT,BALANCER 39115A 12052-008 1
BOLT,CONNECTING ROD 92001 92001-170 4
NUT,FLANGED,8MM 92015 92015-1311 4
WASHER,PLAIN 92022 92022-310 4
WASHER,PLAIN 92022A 92022-316 2
WASHER,LOCK 92022B 92024-071 2
WASHER LOCK 10MM 92022C 92031-001 2
WASHER,LOCK 92022D 92031-016 1
BUSHING,SLIPPER 92028 92028-185 1
PIN SELECT FORK GUID 92043 92043-016 2
PIN 92043A 92043-120 1
PIN,SLIPPER 92043B 92043-122 1
CHAIN,BALANCER 92057 21070-009 1
SPRING,BALANCER 92081 92081-142 8
SPRING 92081A 92081-146 1
PIN,DOWEL 92122 92122-005 8
BOLT,6X55 110 110G0655 2
CIRCLIP, 38MM 480 480J3800 2
PIN COTTER 1.6X15 550 550D1615 1
