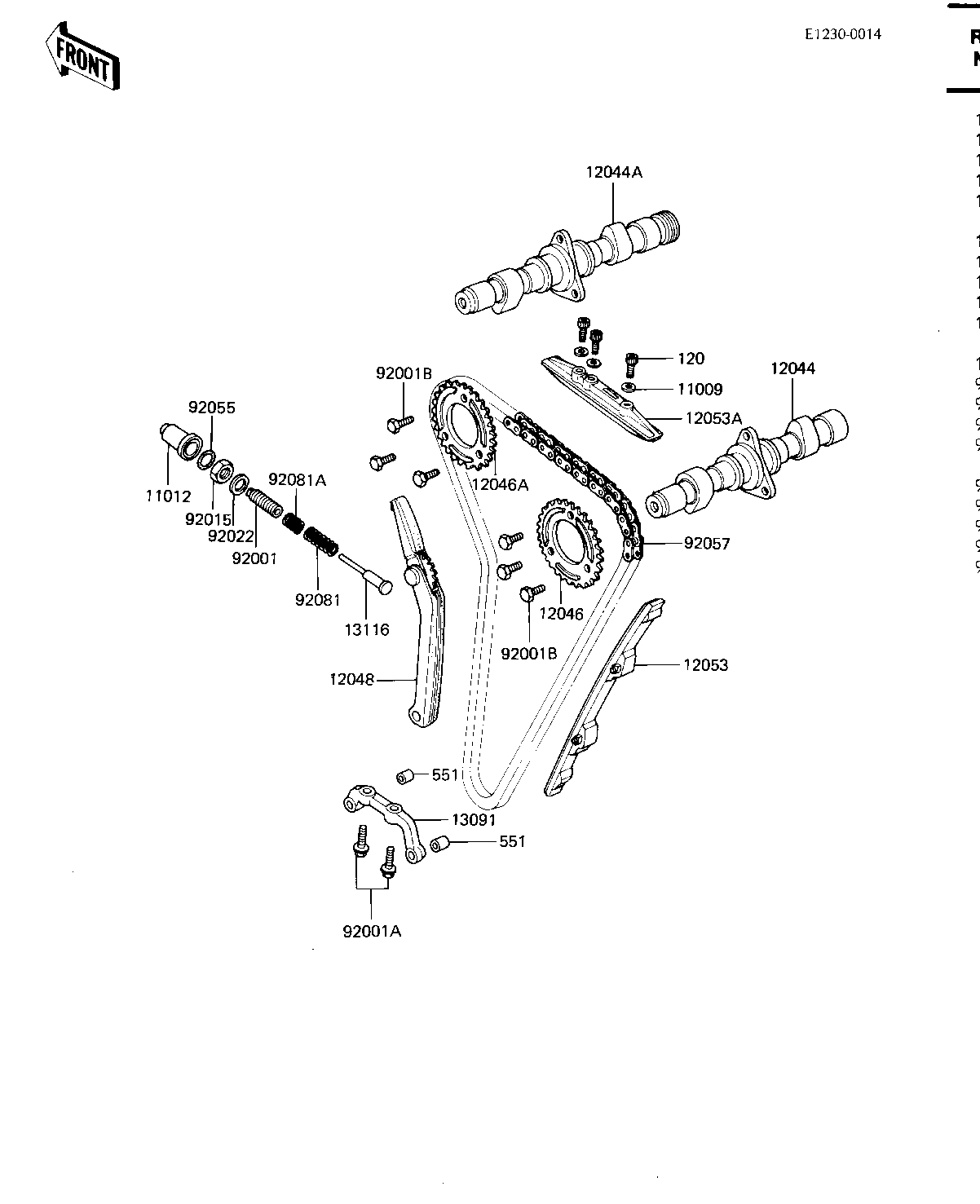

1982 CSR Twin - CAMSHAFTS/CHAIN/TENSIONER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FUEL COCK | 11009 | 92065-096 | 3 | ||
| CAP,CHN TENSIONER | 11012 | 12064-003 | 1 | ||
| CAM SHAFT,INLET | 12044 | 12044-010 | 1 | ||
| CAMSHAFT,EXHAUST | 12044A | 12044-020 | 1 | ||
| SPROCKET,CAM SFT,IN | 12046 | 12046-006 | 1 | ||
| SPROCKET,CAM SFT,EXH | 12046A | 12046-007 | 1 | ||
| TENSIONER ASSY,CAM | 12048 | 12048-005 | 1 | ||
| SLIPPER,CAM CHAIN | 12053 | 12053-015 | 1 | ||
| GUIDE-CHAIN | 12053A | 12053-1065 | 1 | ||
| HOLDER | 13091 | 14018-006 | 1 | ||
| ROD,PUSH | 13116 | 13116-1001 | 1 | ||
| BOLT,PUSH ROD | 92001 | 92001-1009 | 1 | ||
| BOLT | 92001A | 92003-202 | 2 | ||
| BOLT,SPROCKET FITTIN | 92001B | 92003-208 | 6 | ||
| NUT 18MM | 92015 | 92015-019 | 1 | ||
| WASHER,PLAIN | 92022 | 92022-320 | 1 | ||
| "O" RING | 92055 | 92055-095 | 1 | ||
| CHAIN,CAM | 92057 | 21070-011 | 1 | ||
| SPRING,PUSH ROD | 92081 | 92081-1007 | 1 | ||
| SPRING | 92081A | 92081-1008 | 1 | ||
| BOLT,6X14 | 120 | 120P0614 | 3 | ||
| PIN,DOWEL,10X32 | 551 | 551A1032 | 2 |
