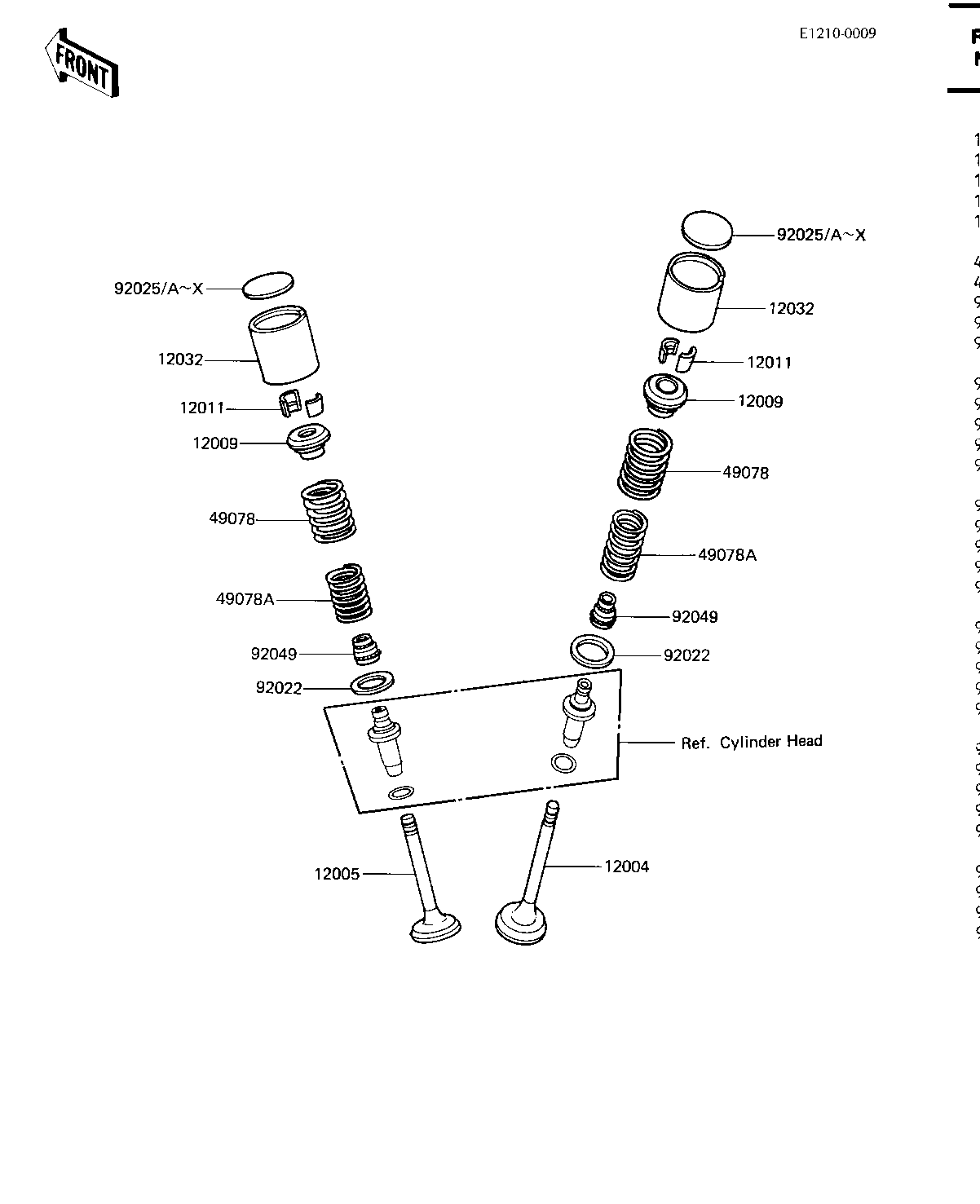

1982 CSR Twin - VALVES

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,INLET 12004 12004-014 2
VALVE,EXHAUST 12005 12005-007 2
RETAINER,VALVE SPRIN 12009 12009-007 4
COLLAR,VALVE SPRING 12011 12011-003 8
TAPPET 12032 12032-006 4
SPRING,OUTER VALVE 49078 12007-015 4
SPRING,INNER VALVE 49078A 12007-016 4
WASHER,PLAIN 92022 92022-309 4
SHIM,2.20T 92025 12037-051 AR
SHIM,2.25T 92025A 12037-052 AR
SHIM,2.30T 92025B 12037-053 AR
SHIM,2.35T 92025C 12037-054 AR
SHIM,2.40T 92025D 12037-055 AR
SHIM,2.45T 92025E 12037-056 AR
SHIM,2.50T 92025F 12037-057 AR
SHIM,2.55T 92025G 12037-058 AR
SHIM,2.60T 92025H 12037-059 AR
SHIM,2.65T 92025I 12037-060 AR
SHIM,2.70T 92025J 12037-061 AR
SHIM,2.75T 92025K 12037-062 AR
SHIM,2.80T 92025L 12037-063 AR
SHIM,2.85T 92025M 12037-064 AR
SHIM,2.90T 92025N 12037-065 AR
SHIM,2.95T 920250 12037-066 AR
SHIM,3.00T 92025P 12037-067 AR
SHIM,3.05T 92025Q 12037-068 AR
SHIM,3.10T 92025R 12037-069 AR
SHIM,3.15T 92025S 12037-070 AR
SHIM,3.20T 92025T 12037-071 AR
SHIM,3.25T 92025U 12037-072 AR
SHIM,3.30T 92025V 12037-073 AR
SHIM,3.35T 92025W 12037-074 AR
SHIM,3.40T 92025X 12037-075 AR
OIL SEAL,VALVE 92049 92049-017 4
