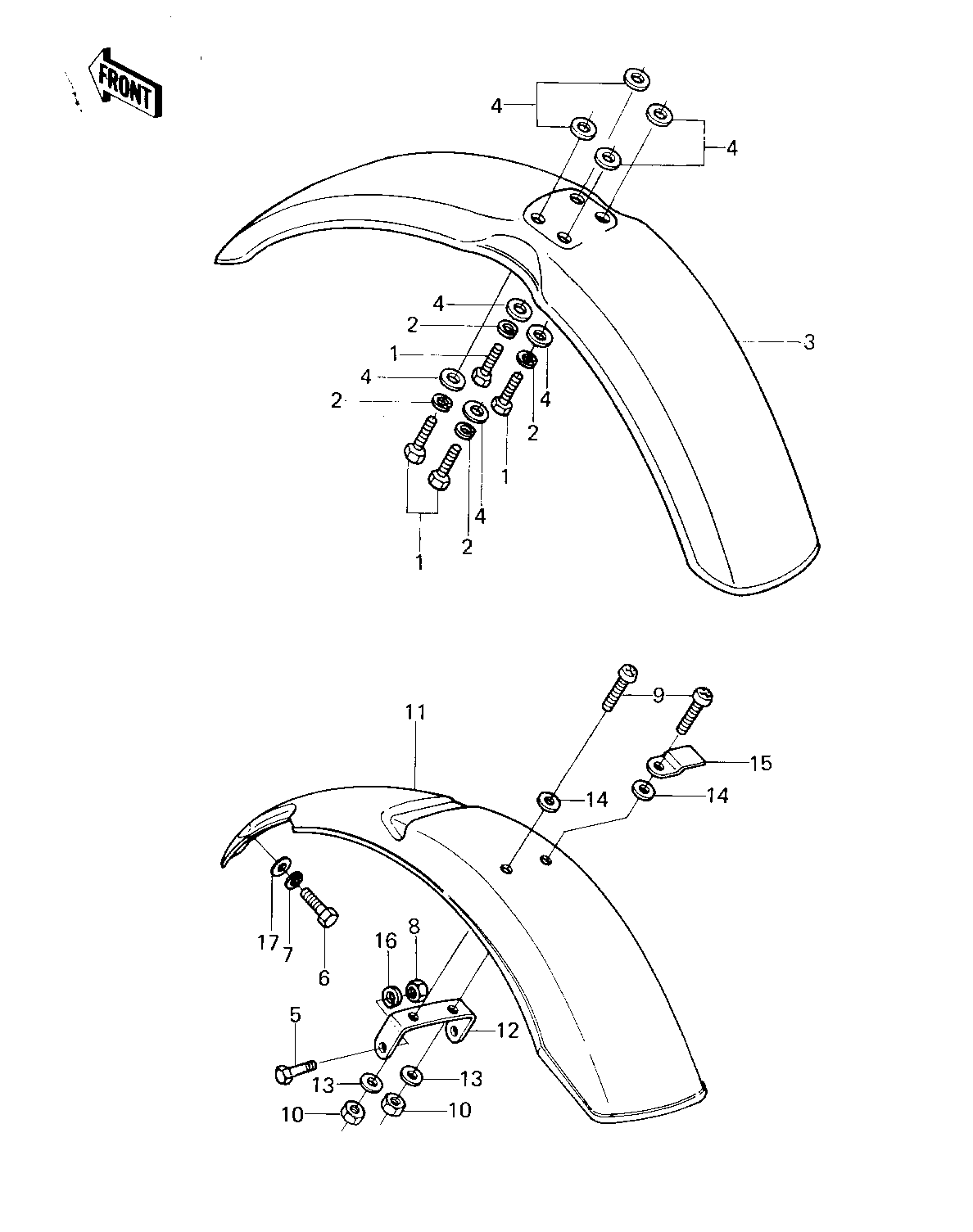

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET | 1 | 112G0618 | 4 | ||
| WASHER SPRING 6MM | 2 | 461F0600 | 4 | ||
| FENDER-FR,C.ORANGE | 3 | 35004-1043-6H | 1 | KD80-M1 | |
| FENDER-FR,F.RED | 3 | 35004-1043-6L | 1 | KD80-M2 | |
| FENDER-FR,B.BLUE | 3 | 35004-1043-6K | 1 | KD80-M2 | |
| WASHER 6.5X20X1.6T | 4 | 92022-125 | 8 | ||
| BOLT-SMALL-FINE | 5 | 113B1228 | 2 | ||
| BOLT-UPSET 6X14 | 6 | 112B0614 | 1 | ||
| WASHER SPRING 6MM | 7 | 461F0600 | 1 | ||
| NUT-HEX-FINE,12MM | 8 | 315B1200 | 2 | ||
| SCREW PAN HEAD 6X16 | 9 | 220B0616 | 2 | ||
| NUT 6MM | 10 | 311B0600 | 2 | ||
| FENDER-RR,C.ORANGE | 11 | 35022-1044-6H | 1 | ||
| FENDER-RR,F.RED | 11 | 35022-1044-6L | 1 | KD80-M2 | |
| FENDER-RR,B.BLUE | 11 | 35022-1044-6K | 1 | KD80-M2 | |
| BRACKET,REAR FENDER | 12 | 35025-025 | 1 | ||
| WASHER PLAIN 6MM | 13 | 410B0600 | 2 | ||
| WASHER 6.5X20X1.6T | 14 | 92022-125 | 2 | ||
| CLAMP CABLE | 15 | 92037-020 | 1 | ||
| WASHER SPRING 12MM | 16 | 461F1200 | 2 | ||
| WASHER 6.5X20X1.6T | 17 | 92022-125 | 1 |
