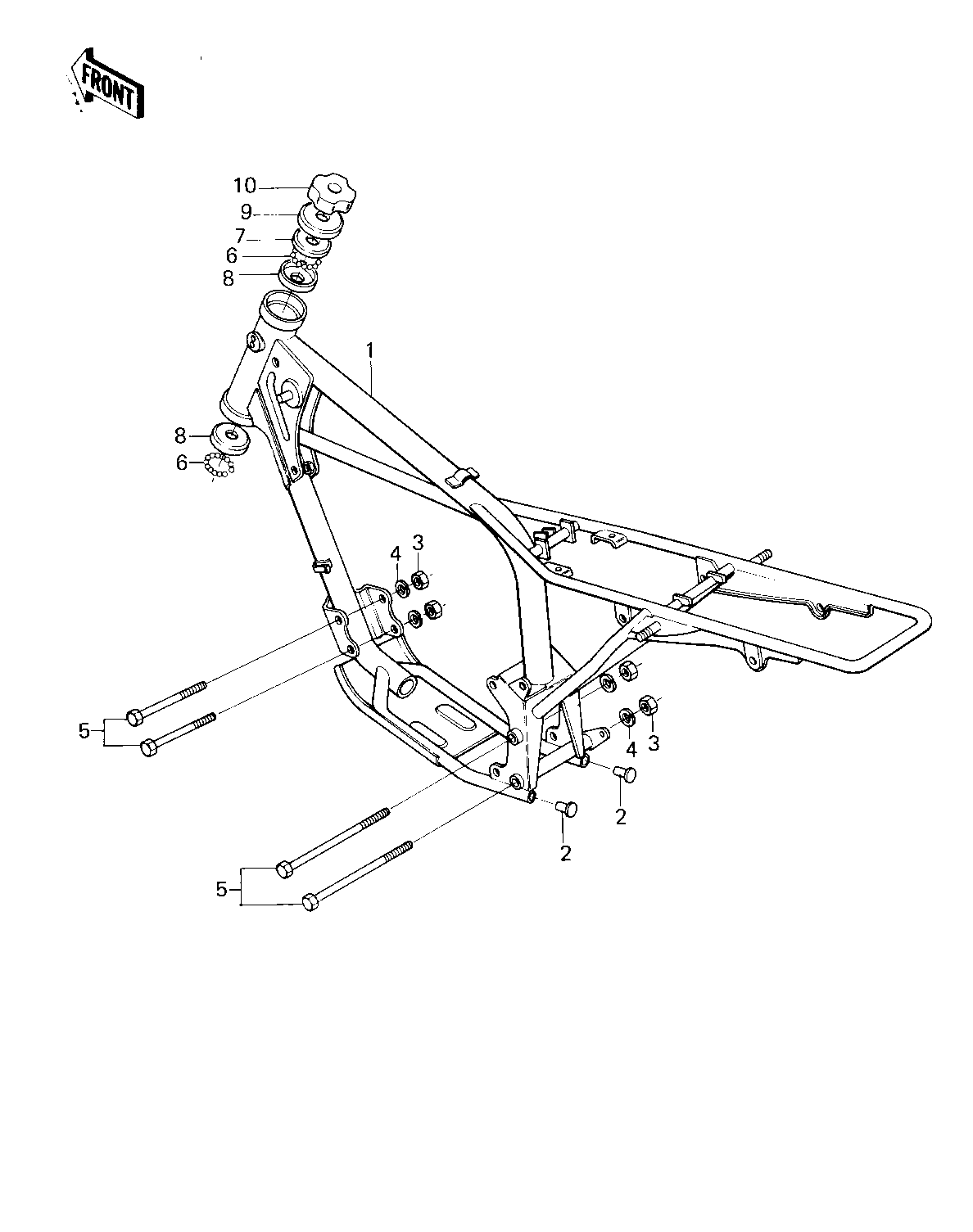

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME | 1 | 32002-1122 | 1 | ||
| CAP PIPE END | 2 | 32112-001 | 2 | ||
| NUT,10MM | 3 | 314B1000 | 4 | ||
| WASHER SPRING 10MM | 4 | 461F1000 | 4 | ||
| BOLT,FLANGED,10X115 | 5 | 92001-1603 | 4 | ||
| BALL STEEL 3/16' | 6 | 600A0600 | 46 | ||
| CONE UPPER BEARING | 7 | 92047-005 | 1 | ||
| RACE BEARING | 8 | 92048-004 | 2 | ||
| CAP STEERING STEM | 9 | 46098-004 | 1 | ||
| NUT STEERING STEM LCK | 10 | 92090-006 | 1 |
| FRAME | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP PIPE END | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X115 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 3/16' | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 46 |
| DESTINATION | |
| REMARKS | |
| CONE UPPER BEARING | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RACE BEARING | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP STEERING STEM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT STEERING STEM LCK | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
