Parts Diagrams |

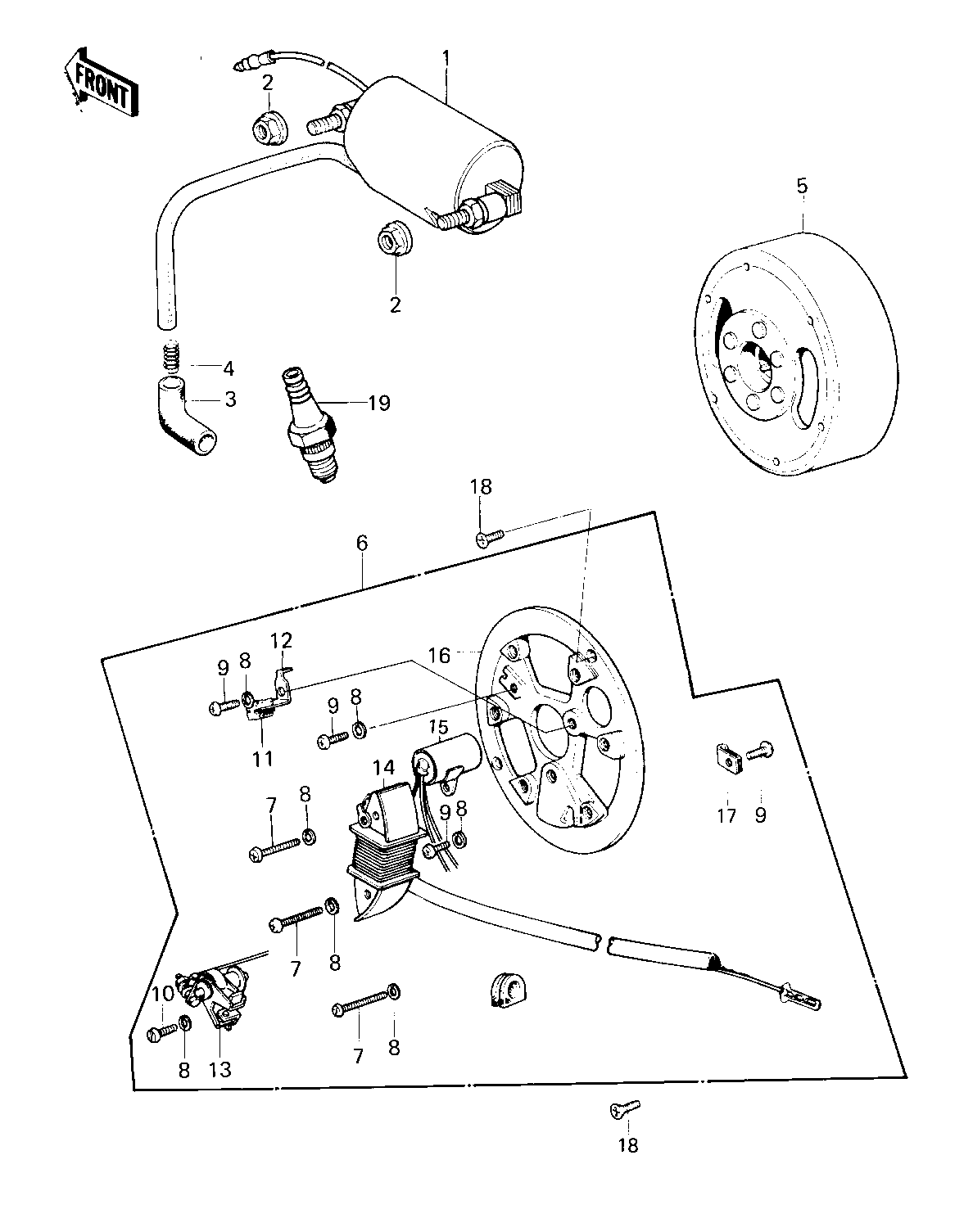

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COIL,IGNITION | 1 | 21121-1034 | 1 | ||
| NUT-6MM | 2 | 92015-1078 | 2 | ||
| CAP SPARK PLUG | 3 | 21130-009 | 1 | ||
| SPRING-SPARK PLUG CAP | 4 | 92101-001 | 1 | ||
| FLYWHEEL,MAGNETO | 5 | 21050-1008 | 1 | KD80-M1 | |
| FLYWHEEL | 5 | 21050-017 | 1 | KD80-M2 | |
| STATOR ASSY | 6 | 21003-1030 | 1 | ||
| SCREW PAN HEAD 4X30 | 7 | 220E0430 | 2 | ||
| WASHER SPRING 4MM | 8 | 461F0400 | 5 | ||
| SCREW PAN HEAD 4X6 | 9 | 220B0406 | 3 | ||
| SCREW-PAN-CRSOSS,4X12 | 10 | 220B0412 | 1 | ||
| FELT OIL | 11 | 21019-005 | 1 | ||
| HOLDER,OIL FELT | 12 | 21038-002 | 1 | ||
| BREAKER ASSY CONTACT | 13 | 21008-006 | 1 | ||
| COIL,EXCITING | 14 | 21049-1004 | 1 | ||
| CONDENSER | 15 | 21013-006 | 1 | ||
| PLATE-COIL,MAGNETO | 16 | 21048-1002 | 1 | ||
| CLAMP WIRING HARNESS | 17 | 21037-002 | 1 | ||
| SCREW CNTSNK HD 6X14 | 18 | 221B0614 | 2 | ||
| SPARK PLUG B7HS | 19 | B7HS | 1 |
| COIL,IGNITION | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP SPARK PLUG | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-SPARK PLUG CAP | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLYWHEEL,MAGNETO | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KD80-M1 |
| FLYWHEEL | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KD80-M2 |
| STATOR ASSY | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X30 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 4MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X6 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CRSOSS,4X12 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FELT OIL | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,OIL FELT | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREAKER ASSY CONTACT | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL,EXCITING | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONDENSER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-COIL,MAGNETO | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP WIRING HARNESS | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW CNTSNK HD 6X14 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPARK PLUG B7HS | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
