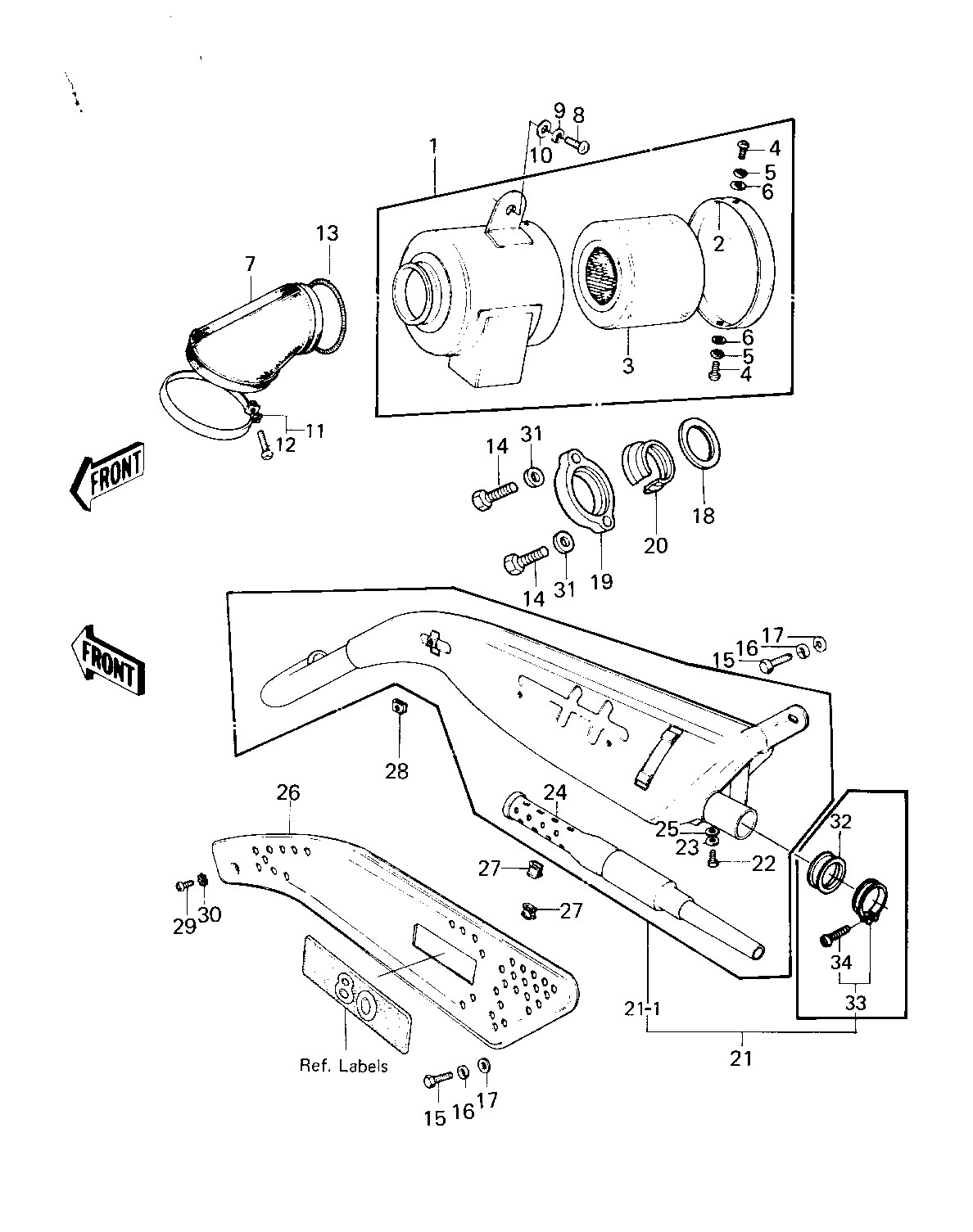

1980 KD80 - AIR CLEANER/MUFFLER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AIR CLEANER ASY,BLACK 1 11010-068-10 1
CAP,AIR CLEANER 2 11012-041 1
ELEMENT,AIR,CLNR 3 11013-044 1
SCREW PAN HEAD 5X8 4 220B0508 2
WASHER SPRING 5MM 5 461F0500 2
WASHER PLAIN 5MM 6 410B0500 2
CONNECTOR,AIR CLEANER 7 11026-009 1
SCREW PAN HEAD 6X12 8 220B0612 1
WASHER SPRING 6MM 9 461F0600 1
WASHER PLAIN 6MM 10 410B0600 1
CLAMP-AIR CLEANER 11 92037-068 1
SCREW PAN HEAD 6X35 12 220B0635 1
SPRING COIL 13 92081-047 1
BOLT-UPSET,6X35 14 112G0635 2
BOLT-SMALL-UPSET,8X16 15 115G0816 2
BOLT-SMALL-UPSET,8X16 15 115G0816 2
WASHER SPRING 8MM 16 461F0800 2
WASHER PLAIN 8MM 17 411B0800 2
GASKET,EXHAUST PIPE H 18 11009-1866 1
HOLDER,EX PIPE,BLACK 19 18069-035-21 1
INSERT-EXHAUST HOLDER 20 18070-005 1
MUFFLER ASSY 21 18001-1113 1
MUFFLER 21-1 18001-5116 1
BOLT,6X10 22 112G0610 2
WASHER PLAIN 6MM 23 410B0600 2
BAFFLE TUBE 24 49099-1027 1
WASHER-PLAIN 25 92022-183 2
COVER,MUFFLER 26 18064-018 1
INSULATOR 27 18065-007 2
INSULATOR-HEAT 28 18065-009 1
SCREW PAN HEAD 6X12 29 220B0612 1
WASHER LOCK 6MM 30 463H0600 1
WASHER SPRING 6MM 31 461F0600 2
CONNECTOR,BAFFLETUBE 32 92093-1042 1
CONNECTOR,BAFFLETUBE 32 92093-1042 1
CLAMP,CARBURETOR HLDR 33 92037-178 1
SCREW-PAN-CROS,5X25 34 220B0525 1
