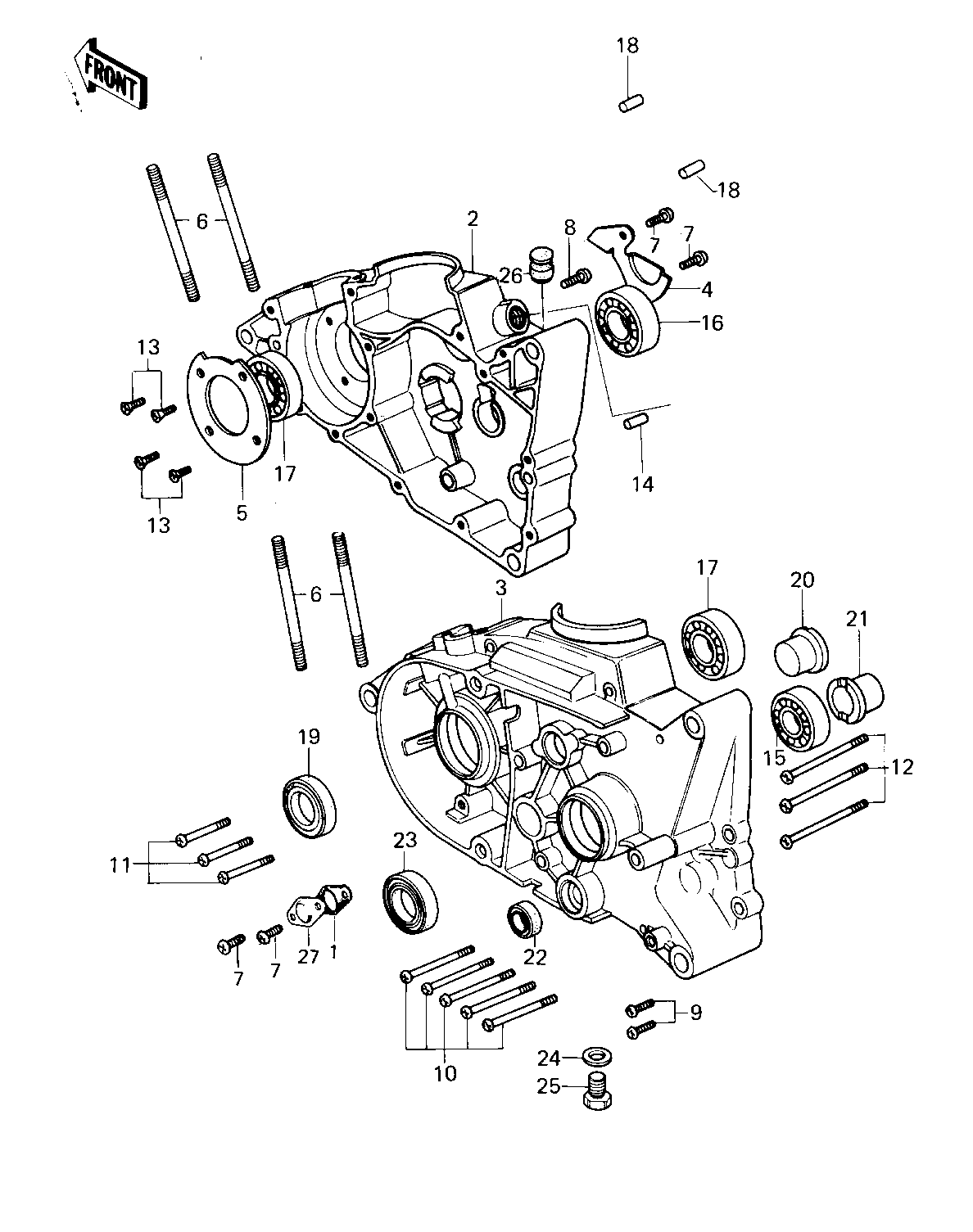

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET NEUTRAL SWITCH | 1 | 13146-002 | 1 | ||
| CRANKCASE,RH | 2 | 14002-1205 | 1 | ||
| CRANKCASE,L.H. | 3 | 14002-1072 | 1 | ||
| HOLDER BEARING MSSON | 4 | 14014-008 | 1 | ||
| HOLDER CRANKSHAFT BRG | 5 | 14014-017 | 1 | ||
| STUD 8X115 | 6 | 172G08115 | 4 | ||
| SCREW PAN HEAD 6X12 | 7 | 220B0612 | 4 | ||
| SCREW PAN HEAD 6X20 | 8 | 220B0620 | 1 | ||
| SCREW PAN HEAD 6X25 | 9 | 220B0625 | 2 | ||
| SCREW PAN HEAD 6X40 | 10 | 220B0640 | 5 | ||
| SCREW PAN HEAD 6X60 | 11 | 220B0660 | 3 | ||
| SCREW PAN HEAD 6X65 | 12 | 220B0665 | 3 | ||
| SCREW CNTSNK HD 6X16 | 13 | 221B0616 | 4 | ||
| PIN DOWEL 8X16 | 14 | 551A0816 | 3 | ||
| BEARING BALL #6004 | 15 | 601B6004 | 1 | ||
| BEARING BALL #6005 | 16 | 601B6005 | 1 | ||
| BEARING BALL #6204 | 17 | 601B6204 | 2 | KD80-M1 | |
| BEARING-BALL,#6204 | 17 | 92045-1032 | 2 | KD80-M2 | |
| PIN DOWEL 5X12 | 18 | 610A0512 | 2 | ||
| SEAL-OIL | 19 | 92049-1240 | 1 | ||
| BUSH OUTPUT SHAFT | 20 | 92028-025 | 1 | ||
| BUSH DRIVE SHAFT | 21 | 92028-069 | 1 | ||
| OIL SEAL SB12205 | 22 | 92049-004 | 1 | ||
| OIL SEAL SC25376 | 23 | 92050-013 | 1 | ||
| GASKET CHECK VALVE | 24 | 92065-058 | 1 | ||
| PLUG OIL DRAIN | 25 | 92067-001 | 1 | ||
| RUBBER PLUG | 26 | 92074-035 | 1 | ||
| PLUG-OIL PUMP-HOLE | 27 | 92084-004 | 1 |
