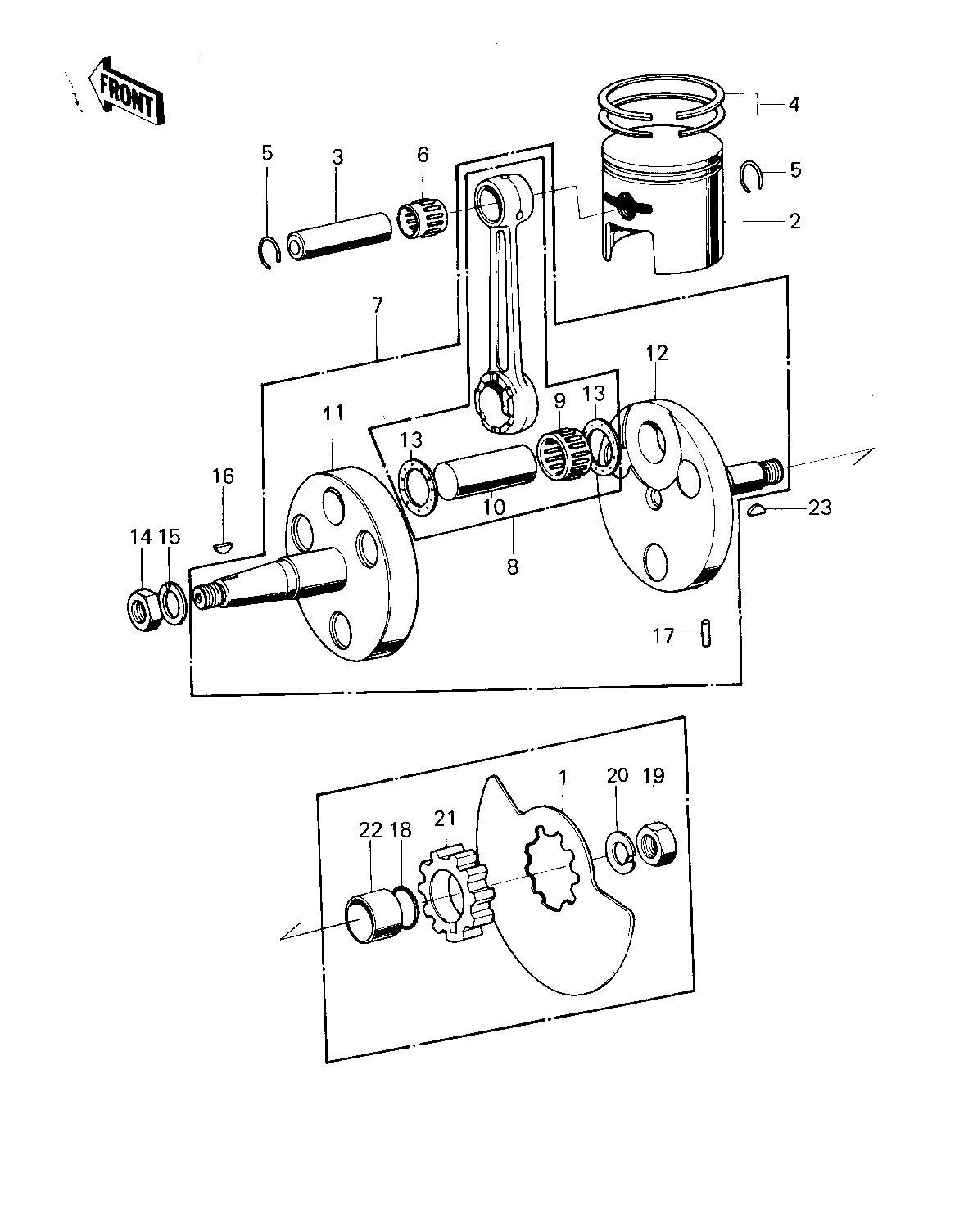

1980 KD80 - CRANKSHAFT/PISTON/ROTARY VALVE
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE,ROTARY DISC | 1 | 12002-030 | 1 | ||
| PISTON,STD | 2 | 13001-061 | 1 | ||
| PISTON,0.020 O/S | 2 | 13029-061 | 1 | ||
| PISTON,0.040 O/S | 2 | 13027-059 | 1 | ||
| PIN-PISTON | 3 | 13002-003 | 1 | ||
| RING SET,STD | 4 | 13008-047 | 1 | ||
| RING SET,0.020 O/S | 4 | 13025-051 | 1 | ||
| RING SET,0.040 O/S | 4 | 13024-052 | 1 | ||
| CIRCLIP PISTON PIN | 5 | 92036-003 | 2 | ||
| BEARING,SMALL END | 6 | 13033-030 | 1 | KTV141817 | |
| CRANK&CONROD ASSY | 7 | 13036-050 | 1 | ||
| CONNECTING ROD SET | 8 | 13044-5015 | 1 | ||
| CONNECTING ROD SET | 8 | 13044-5015 | 1 | ||
| BEARING,BIG END | 9 | 13034-034 | 1 | KT192612 | |
| CRANK PIN | 10 | 13035-025 | 1 | ||
| CRANKSHAFT,L.H | 11 | 13037-068 | 1 | ||
| CRANKSHAFT,R.H | 12 | 13038-057 | 1 | ||
| WASHER-SIDE | 13 | 92025-047 | 2 | ||
| NUT,10MM | 14 | 314B1000 | 1 | ||
| WASHER SPRING 10MM | 15 | 461F1000 | 1 | ||
| WOODRUFF KEY | 16 | 510A3200 | 1 | ||
| PIN DOWEL 4X10 | 17 | 610A0410 | 1 | ||
| "0" RING,16MM | 18 | 670B2016 | 1 | ||
| NUT 12MM | 19 | 92015-006 | 1 | ||
| WASHER LOCK 12MM | 20 | 92024-003 | 1 | ||
| COLLAR,ROTARY VALVE | 21 | 92027-1245 | 1 | KD80-M1 | |
| COLLAR,ROTARY VALVE | 21 | 92027-1245 | 1 | KD80-M2 | |
| COLLAR,CRANKSHAFT | 22 | 92027-285 | 1 | ||
| WOODRUFF KEY PRY PINI | 23 | 92038-003 | 1 |
| VALVE,ROTARY DISC | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON,STD | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON,0.020 O/S | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON,0.040 O/S | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING SET,STD | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING SET,0.020 O/S | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING SET,0.040 O/S | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP PISTON PIN | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING,SMALL END | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KTV141817 |
| CRANK&CONROD ASSY | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONNECTING ROD SET | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONNECTING ROD SET | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,BIG END | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KT192612 |
| CRANK PIN | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,L.H | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,R.H | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-SIDE | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN DOWEL 4X10 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,16MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 12MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER LOCK 12MM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,ROTARY VALVE | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KD80-M1 |
| COLLAR,ROTARY VALVE | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KD80-M2 |
| COLLAR,CRANKSHAFT | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY PRY PINI | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
