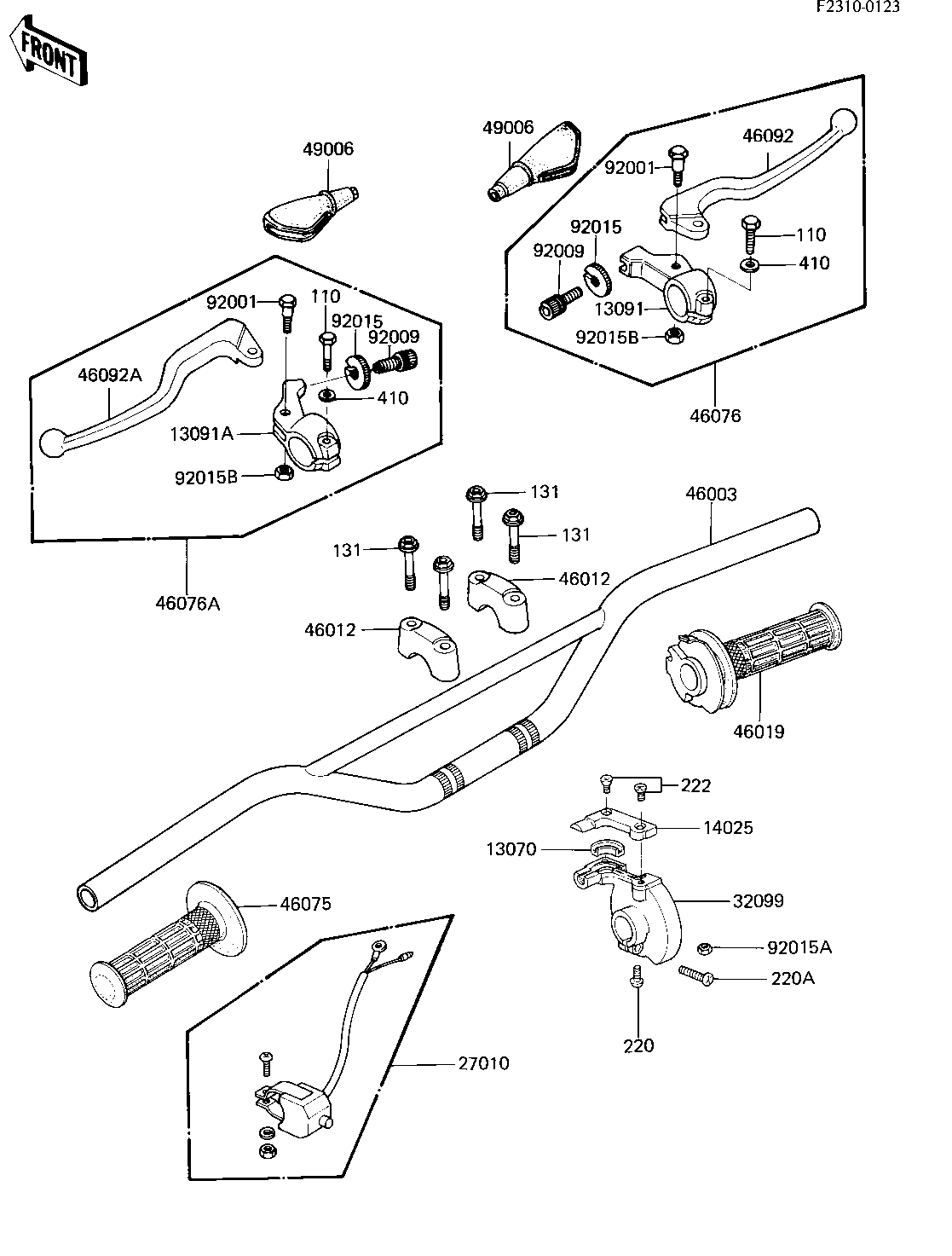

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUIDE,THROTTLE PEACE | 13070 | 13070-1053 | 1 | ||
| HOLDER,FR LEVER,F.BLK | 13091 | 46060-011-21 | 1 | ||
| HOLDER,CL LEVER,F.BLK | 13091A | 46094-015-21 | 1 | ||
| COVER,THROTTLE UPP,RH | 14025 | 14025-1392 | 1 | ||
| SWITCH,ASSY,ENG STOP | 27010 | 27010-1018 | 1 | ||
| CASE,THROTTLE LWR,RH | 32099 | 32099-1024 | 1 | ||
| HANDLEBAR | 46003 | 46003-1092 | 1 | ||
| HOLDER-HANDLEBAR | 46012 | 46012-008 | 2 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1020 | 1 | ||
| GRIP,LH | 46075 | 46075-1024 | 1 | ||
| LEVER ASSY,FRONT BRK | 46076 | 46076-1010 | 1 | ||
| LEVER ASSY,CLUTCH | 46076A | 46076-1011 | 1 | ||
| LEVER,FRONT BRAKE | 46092 | 46092-1014 | 1 | ||
| LEVER,CLUTCH | 46092A | 46092-1015 | 1 | ||
| BOOTS,LEVER HOLDER | 49006 | 49006-1017 | 2 | ||
| BOLT,HEX HEAD,5X22 | 92001 | 92007-046 | 2 | ||
| SCREW CABLE ADJUST | 92009 | 46055-003 | 2 | ||
| NUT-LOCK | 92015 | 46056-005 | 2 | ||
| NUT,LOCK,4MM | 92015A | 92019-010 | 1 | ||
| NUT-LOCK,5MM | 92015B | 92019-014 | 2 | ||
| BOLT HEX HEAD 6X25 | 110 | 110N0625 | 2 | ||
| BOLT,FLANGED,8X35 | 131 | 130G0835 | 4 | ||
| SCREW PAN HEAD 4X8 | 220 | 220B0408 | 1 | ||
| SCREW PAN HEAD 5X20 | 220A | 220B0520 | 1 | ||
| SCREW-CSK-RD-CROS, 4 X 12 | 222 | 222E0412A | 2 | ||
| WASHER,PLAIN,6MM | 410 | 410D0600 | 2 |
| GUIDE,THROTTLE PEACE | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,FR LEVER,F.BLK | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CL LEVER,F.BLK | |
| REF # | 13091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,THROTTLE UPP,RH | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,ASSY,ENG STOP | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,THROTTLE LWR,RH | |
| REF # | 32099 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HANDLEBAR | |
| REF # | 46003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-HANDLEBAR | |
| REF # | 46012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GRIP-ASSY,THROTTLE | |
| REF # | 46019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,LH | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY,FRONT BRK | |
| REF # | 46076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY,CLUTCH | |
| REF # | 46076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,FRONT BRAKE | |
| REF # | 46092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,CLUTCH | |
| REF # | 46092A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOTS,LEVER HOLDER | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,5X22 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW CABLE ADJUST | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-LOCK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,4MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-LOCK,5MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 6X25 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X35 | |
| REF # | 131 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X8 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X20 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-RD-CROS, 4 X 12 | |
| REF # | 222 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
