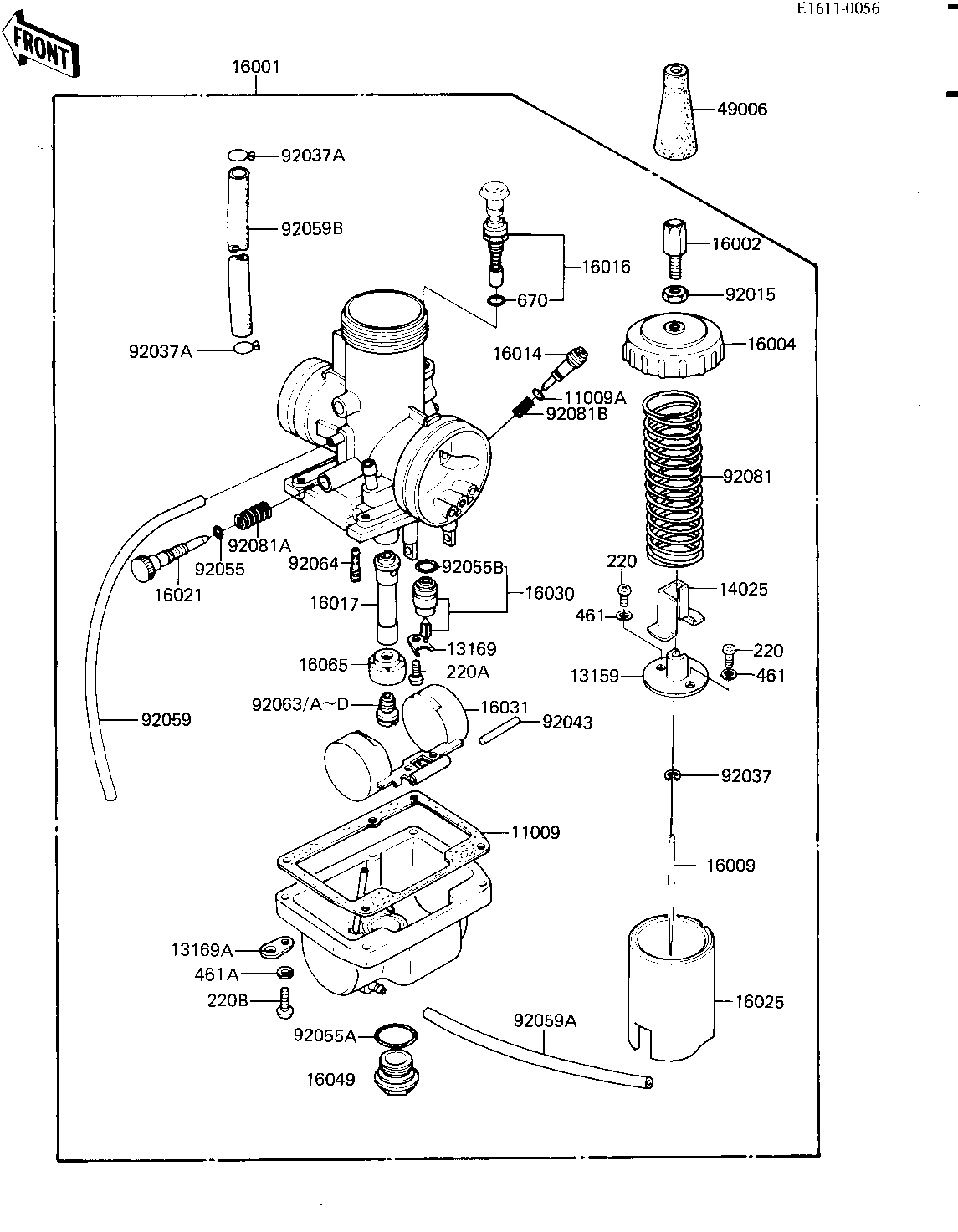

1981 KX80 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1178 1
"O" RING 11009A 16038-022 1
CONNECTOR,THROTTLE 13159 13159-1010 1
PLATE, LOCK 13169 13169-1190 1
PLATE,TUBE CLAMP 13169A 13169-1226 1
COVER,THROTTLE VALVE 14025 14025-1494 1
CARBURETOR 16001 16001-1494 1
ADJUSTER,CABLE 16002 16002-017 1
CAP,MIXING CHAMBER 16004 16004-025 1
NEEDLE-JET,5EJ33 16009 16009-1111 1
SCREW,PILOT AIR 16014 16014-1013 1
PLUNGER ASSY,STARTER 16016 16016-1013 1
JET-NEEDLE,0-6 16017 16017-1108 1
SCREW,THROTTLE ADJST 16021 16021-1012 1
VALVE-THROTTLE,CA3.0 16025 16025-1070 1
FLOAT VALVE ASSY,2.5 16030 16030-1013 1
FLOAT 16031 16031-1011 1
COVER,MAIN JET 16049 16049-1003 1
HOLDER,MAIN JET RING 16065 16065-1033 1
CAP,CARBURETOR 49006 16036-007 1
NUT-CABLE ADJUST LOCK 92015 16003-006 1
CIRCLIP 92037 16008-010 1
CLAMP-PIPE 92037A 92037-072 2
FLOAT PIN 92043 16032-003 1
"0" RING 92055 92055-044 1
"0" RING 92055A 92055-1076 1
"0" RING 92055B 92055-1084 1
TUBE,3X5X300 92059 92059-1755 1
TUBE 92059A 92059-1135 1
PIPE,FUEL 92059B 92059-130 1
MAIN JET NO 125R 92063 92063-055 1
JET-MAIN,#A127.5 92063A 92063-1100 1
MAIN JET NO 130R 92063B 92063-057 1
JET-MAIN,#A122.5 92063C 92063-1101 1
JET-MAIN NO 132.5R 92063D 92063-103 1
JET-PILOT NO 30 92064 92064-022 1
SPRING,THROTTLE VALV 92081 16006-023 1
SPRING,THROTTLE ADJST 92081A 92081-1152 1
SPRING,AIR SCREW 92081B 92081-1153 1
SCREW PAN HEAD 3X8 220 220B0308 2
SCREW PAN HEAD 4X8 220A 220B0408 1
SCREW PAN HEAD 4X16 220B 220B0416 4
WASHER SPRING 3MM 461 461F0300 2
WASHER SPRING 4MM 461A 461F0400 4
"O" RING,9MM 670 670B1509 1
