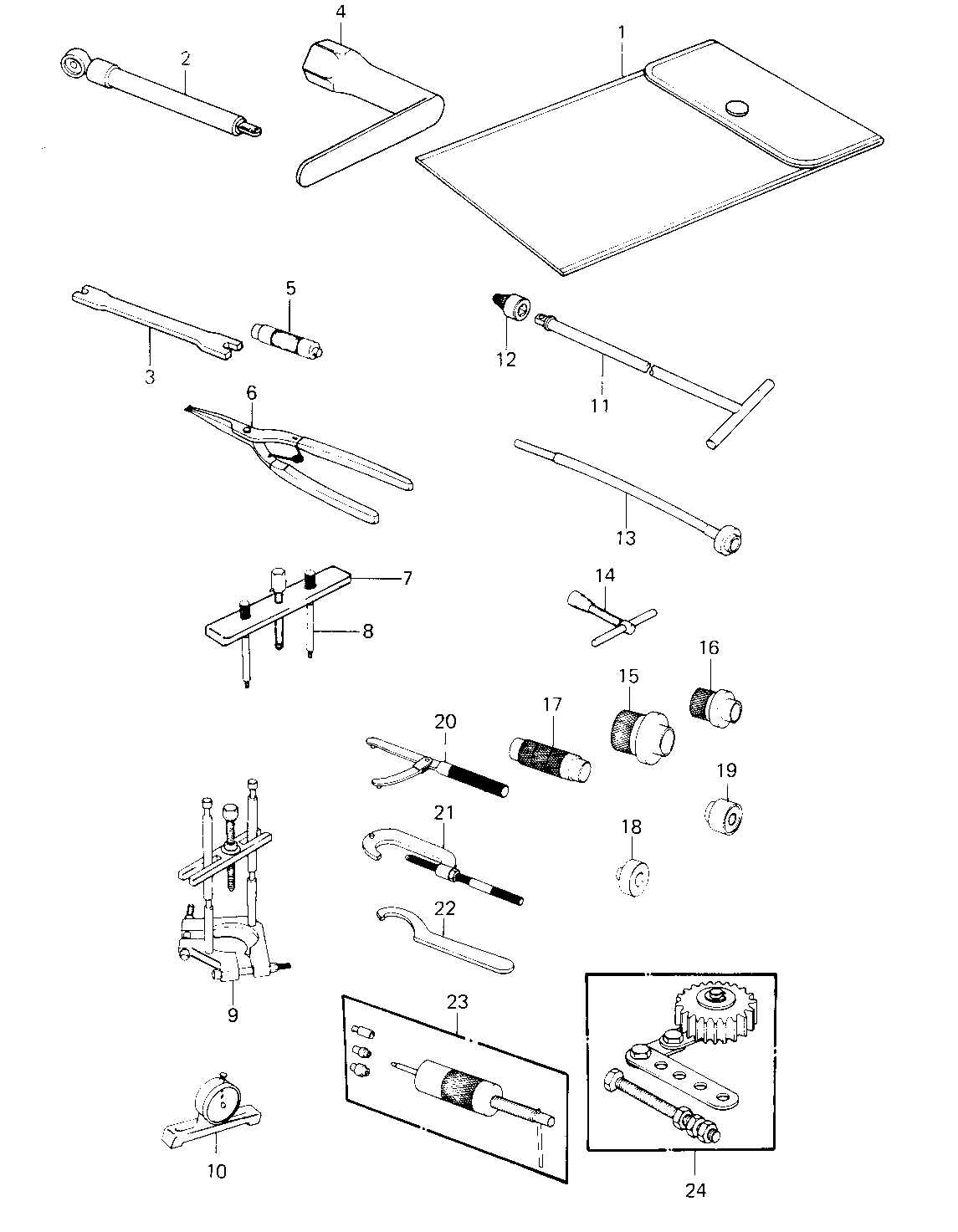

1981 KX80 - OWNER TOOLS/SPECIAL SERVICE TOOLS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BAG,TOOL | 1 | 56008-008 | 1 | ||
| GAUGE,AIR | 2 | 52005-4002 | 1 | ||
| TIGHTENER,SPOKE | 3 | 92108-011 | 1 | ||
| WRENCH,SPARK PLUG | 4 | 92110-019 | 1 | ||
| *** N.L.A.*** (Canada) | 5 | 57001-139 | 1 | ||
| PLIERS,CIRCLIP,OUTSID | 6 | 57001-144 | 1 | ||
| 57001-1098 (Canada) | 7 | 57001-153 | 1 | ||
| ADAPTER-CRNKCSE SPLIT | 8 | 57001-157 | 1 | ||
| PULLER,STEM BEARING | 9 | 57001-158 | 1 | ||
| FINDER-TDC | 10 | 57001-160 | 1 | ||
| HANDLE,FORK CLY HOLDR | 11 | 57001-183 | 1 | ||
| ADAPTER,FORK CYL HLDR | 12 | 57001-1011 | 1 | ||
| GAUGE,FUEL LEVEL | 13 | 57001-202 | 1 | ||
| PULLER,FLYWHEL MAGNET | 14 | 57001-252 | 1 | ||
| GUIDE,OIL SEAL | 15 | 57001-263 | 1 | ||
| GUIDE,SHIFT OIL SEAL | 16 | 57001-264 | 1 | ||
| 57001-1129 (Canada) | 17 | 57001-286 | 1 | ||
| 57001-1129 (Canada) | 18 | 57001-289 | 1 | ||
| *** N.L.A.*** (Canada) | 19 | 57001-291 | 1 | ||
| 57001-1343 (Canada) | 20 | 57001-306 | 1 | ||
| 57001-1243 (Canada) | 21 | 57001-307 | 1 | ||
| 57001-1100 (Canada) | 22 | 57001-320 | 1 | ||
| PULLER-PISTON PIN | 23 | 57001-910 | 1 | ||
| HOLDER,GEAR | 24 | 57001-1015 | 1 |
