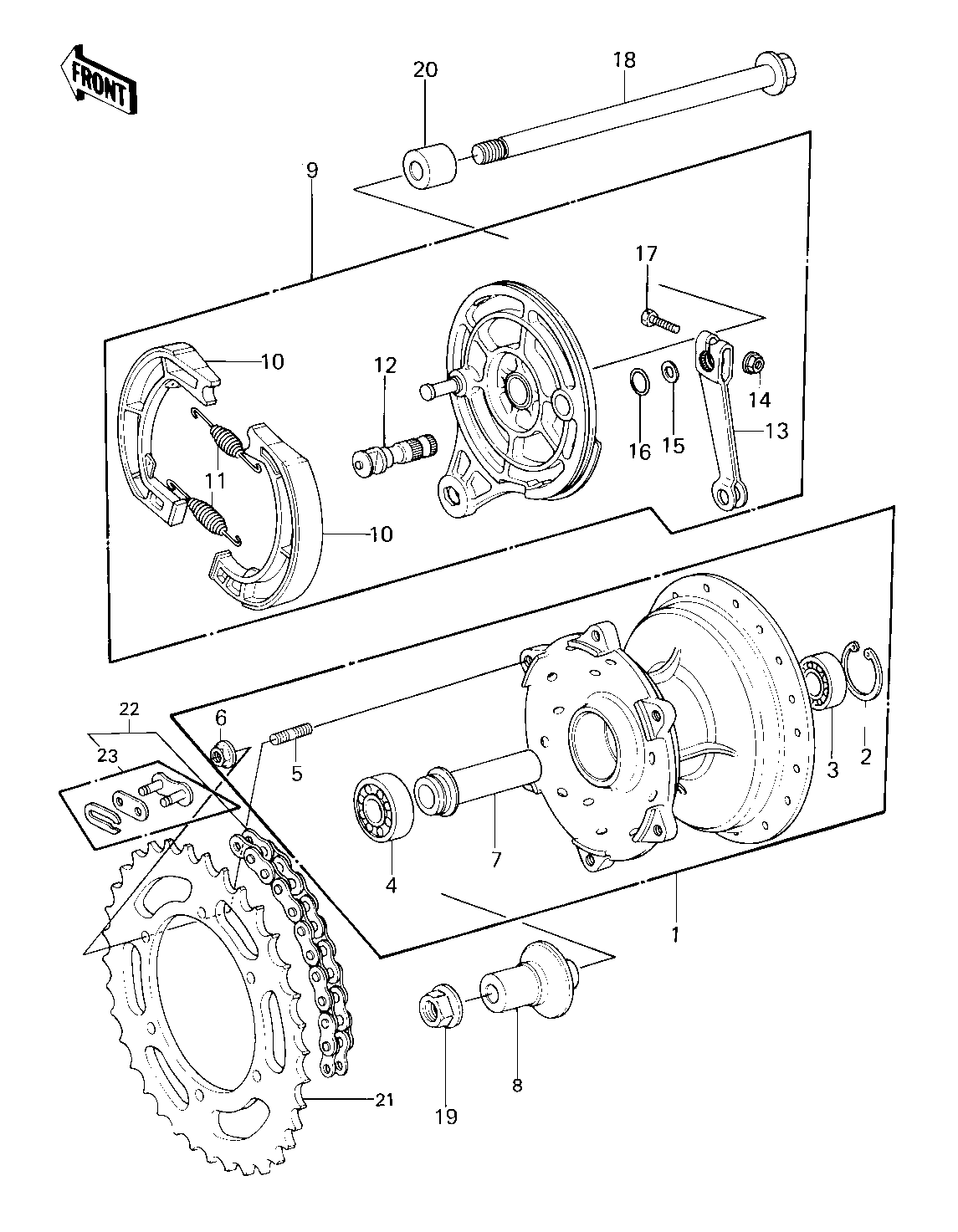

1981 KX80 - REAR HUB/BRAKE/CHAIN ('81 KX80-C1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,RR BRK | 1 | 41034-1044 | 1 | ||
| .CIRCLIP,32MM | 2 | 481J3200 | 1 | ||
| .BEARING,BALL | 3 | 601B6201U | 1 | ||
| .BEARING BALL | 4 | 601B6203U | 1 | ||
| .STUD,8X17 | 5 | 92004-1015 | 6 | ||
| .NUT-8MM | 6 | 92015-1022 | 6 | ||
| .COLLAR,RR BRAKE DRUM | 7 | 92027-1344 | 1 | ||
| COLLAR,L=39 | 8 | 92027-1345 | 1 | ||
| PANEL-ASY,RR BRK | 9 | 41035-1032 | 1 | ||
| .SHOE,BRAKE | 10 | 41048-1021 | 2 | ||
| .SPRING,BRAKE SHOE | 11 | 92081-1766 | 2 | ||
| .CAM,BRAKE,REAR | 12 | 41050-1012 | 1 | ||
| .LEVER,BRAKE CAM,REAR | 13 | 41053-1010 | 1 | ||
| .NUT,6MM | 14 | 41072-007 | 1 | ||
| .WASHER | 15 | 92022-257 | 1 | ||
| ."O" RING,12MM | 16 | 670B2012 | 1 | ||
| .BOLT,HEX HEAD,6X30 | 17 | 92001-1135 | 1 | ||
| AXLE,REAR,12X211 | 18 | 41068-1036 | 1 | ||
| NUT-12MM | 19 | 92015-1156 | 1 | ||
| NUT-12MM | 19 | 92015-1156 | 1 | ||
| .COLLAR,REAR AXLE | 20 | 92027-1247 | 1 | ||
| REAR SPROCKET,50T | 21 | 42041-1034 | 1 | ||
| REAR SPROCKET,48T | 21 | 42041-1016 | 1 | ||
| REAR SPROCKET,52T | 21 | 42041-1035 | 1 | ||
| SPROCKET,REAR,54T | 21 | 42041-1072 | 1 | ||
| CHAIN ASSY,EK420SHG | 22 | 92057-1102 | 1 | ||
| .JOINT,CHAIN | 23 | 92058-1016 | 1 |
