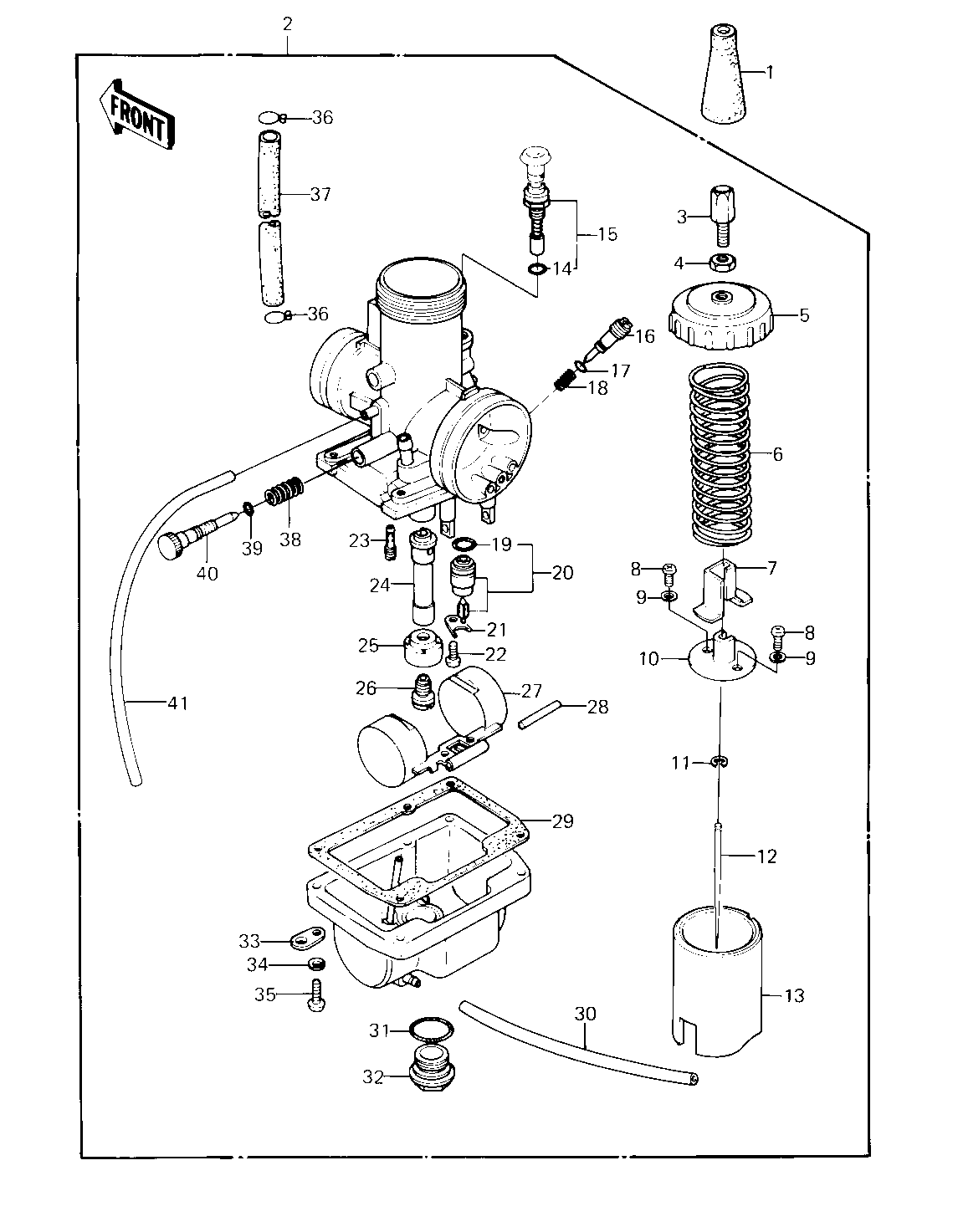

1981 KX80 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CARBURETOR 1 16036-007 1
CARBURETOR ASSY 2 16001-1370 1
ADJUSTER,CABLE 3 16002-017 1
NUT-CABLE ADJUST LOCK 4 16003-006 1
CAP,MIXING CHAMBER 5 16004-025 1
SPRING,THROTTLE CA3.0 6 92081-1388 1
COVER,THROTTLE VALVE 7 14025-1197 1
SCREW-PAN-CROS 8 220B0310 2
WASHER SPRING 3MM 9 461F0300 2
CONNECTOR,THROTTLE 10 13159-1010 1
CIRCLIP 11 16008-010 1
JET NEEDLE,5E28 12 16009-1090 1
VALVE,THROTTLE CA.3.0 13 16025-1058 1
"O" RING,9MM 14 670B1509 1
PLUNGER ASSY,STARTER 15 16016-1013 1
SCREW,PILOT AIR 16 16014-1013 1
"O" RING 17 16038-022 1
SPRING,AIR SCREW 18 92081-1153 1
"0" RING 19 92055-1084 1
FLOAT VALVE ASSY,2.5 20 16030-1013 1
PLATE, LOCK 21 13169-1190 1
SCREW PAN HEAD 4X8 22 220B0408 1
JET-PILOT NO 30 23 92064-022 1
NEEDLE JET,0-8 24 16017-1055 1
HOLDER,MAIN JET RING 25 16065-1033 1
MAIN JET NO 130R 26 92063-057 1
MAIN JET NO 125R 26 92063-055 1
JET-MAIN,#A127.5 26 92063-1100 1
JET-MAIN NO 132.5R 26 92063-103 1
MAIN JET NO 135R 26 92063-104 1
FLOAT 27 16031-1011 1
FLOAT PIN 28 16032-003 1
GASKET,FLOAT CHAMBER 29 11009-1178 1
SPRING,THROTTLE ADJST 30 92081-1152 1
"0" RING 31 92055-1076 1
COVER,MAIN JET 32 16049-1003 1
PLATE,TUBE CLAMP 33 13169-1226 1
WASHER SPRING 4MM 34 461F0400 4
SCREW PAN HEAD 4X16 35 220B0416 4
CLAMP-PIPE 36 92037-072 2
PIPE,FUEL 37 92059-130 1
SPRING,THROTTLE ADJST 38 92081-1152 1
"0" RING 39 92055-044 1
SCREW,THROTTLE ADJST 40 16021-1012 1
TUBE,3X5X300 41 92059-1755 1
TUBE,3X5X300 41 92059-1755 1
