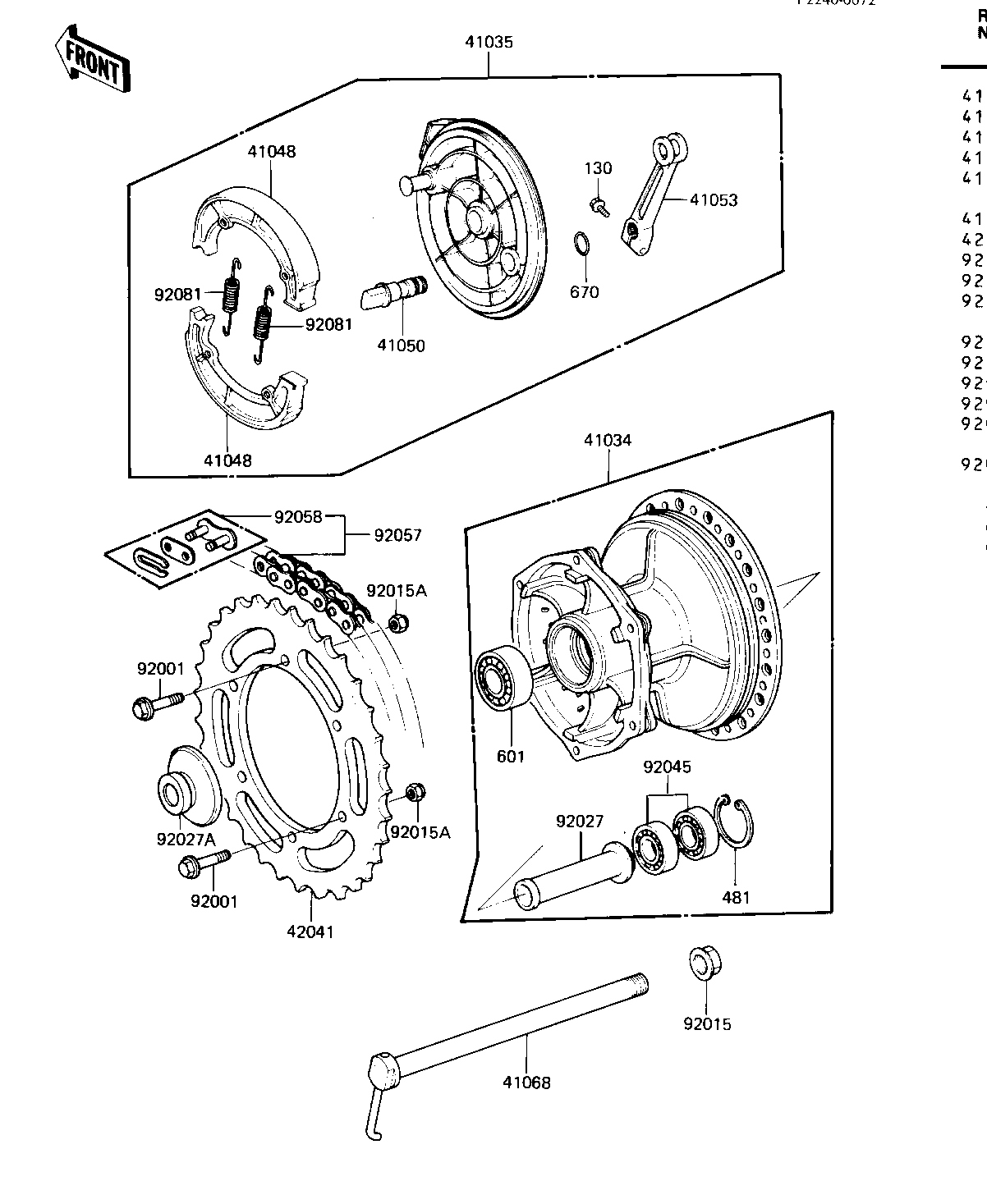

1982 KDX250 - REAR HUB/BRAKE/CHAIN ('82 KDX250-B2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,RR BRK | 41034 | 41034-1019 | 1 | ||
| PANEL-ASY,RR BRK | 41035 | 41035-1086 | 1 | ||
| SHOE-BRAKE | 41048 | 41048-1018 | 2 | ||
| CAME-BRAKE | 41050 | 41050-1018 | 1 | ||
| LEVER BRAKE CAM | 41053 | 41053-1022 | 1 | ||
| AXLE,REAR | 41068 | 41068-1070 | 1 | ||
| REAR,SPROCKET,52T | 42041 | 42041-1008 | 1 | ||
| BOLT,HEX HEAD,8X36 | 92001 | 92001-1041 | 6 | ||
| NUT,16M/M | 92015 | 92015-1015 | 1 | ||
| NUT,8MM | 92015A | 92015-1134 | 6 | ||
| COLLAR,REAR BRAKE | 92027 | 92027-1207 | 1 | ||
| COLLAR,REAR AXLE | 92027A | 92027-1397 | 1 | ||
| BEARING-BALL,#6003UC3 | 92045 | 601B6003U | 2 | ||
| CHAIN,520X118TR | 92057 | 92057-1051 | 1 | ||
| JOINT-CHAIN | 92058 | 92058-1051 | 1 | ||
| SPRING-BRAKE SHOE | 92081 | 42020-004 | 2 | ||
| BOLT,FLANGED,6X20 | 130 | 130G0620 | 1 | ||
| CIRCLIP,35MM | 481 | 481J3500 | 1 | ||
| BEARING,BALL,6204UUC3 | 601 | 601B6204UU | 1 | ||
| "O" RING,15MM | 670 | 670B2015 | 1 |
| DRUM-ASSY,RR BRK | |
| REF # | 41034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-ASY,RR BRK | |
| REF # | 41035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOE-BRAKE | |
| REF # | 41048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAME-BRAKE | |
| REF # | 41050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER BRAKE CAM | |
| REF # | 41053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,REAR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REAR,SPROCKET,52T | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,8X36 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,16M/M | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR BRAKE | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR AXLE | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6003UC3 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CHAIN,520X118TR | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-CHAIN | |
| REF # | 92058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-BRAKE SHOE | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X20 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,35MM | |
| REF # | 481 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL,6204UUC3 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,15MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
