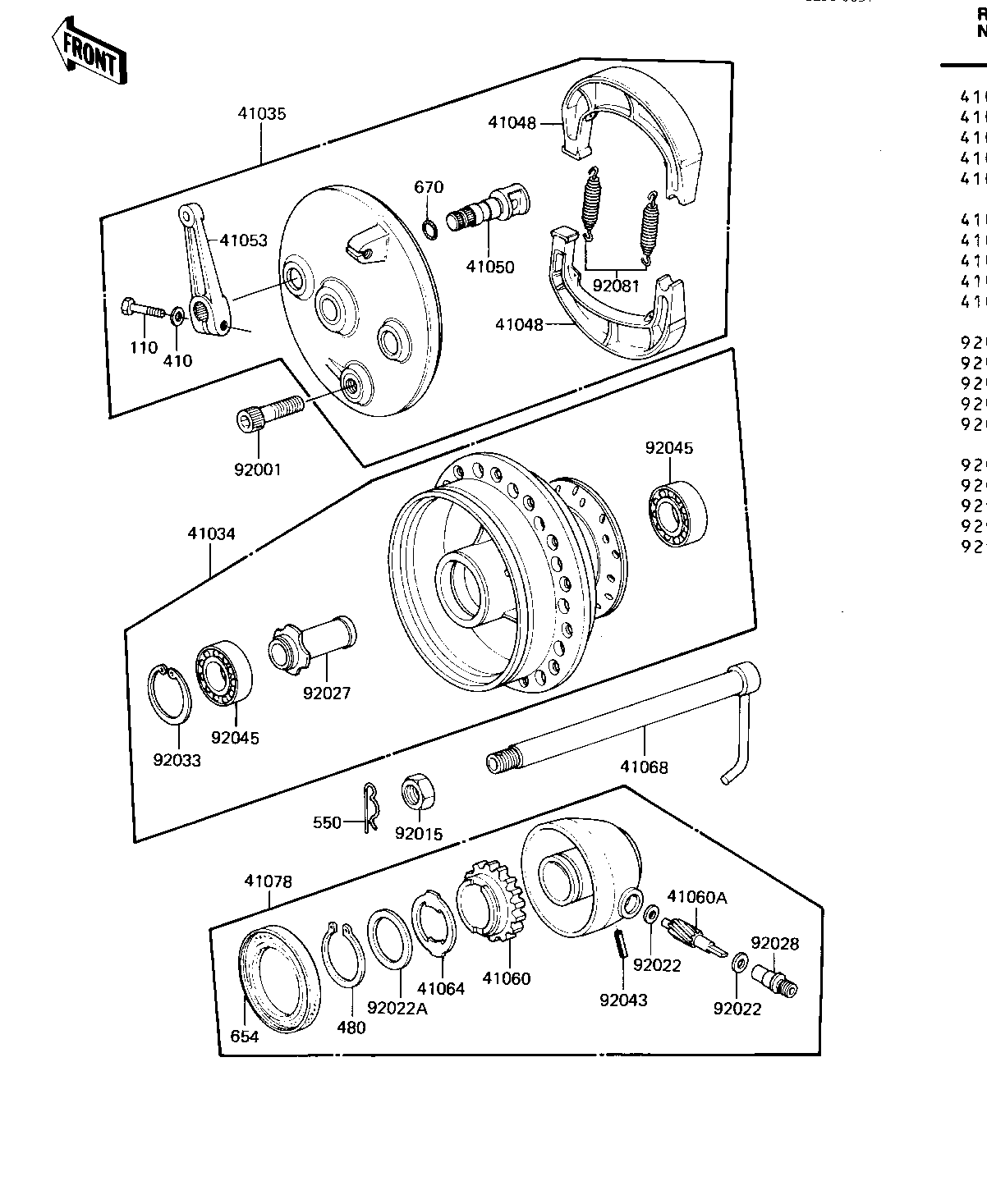

1982 KDX250 - FRONT HUB/BRAKE ('82 KDX250-B2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,FR BRK | 41034 | 41034-4001 | 1 | ||
| PANEL-ASY,FR BRK | 41035 | 41035-1072 | 1 | ||
| SHOE-BRAKE | 41048 | 41048-1068 | 2 | ||
| CAM SHAFT,BRAKE | 41050 | 41050-1002 | 1 | ||
| LEVER,FRONT BRAKE CAM | 41053 | 41053-1003 | 1 | ||
| GEAR,SPEEDOMETER | 41060 | 41059-027 | 1 | ||
| PINION,SPEEDOMETER | 41060A | 41060-015 | 1 | ||
| RECEIVER,SPEEDOMETER | 41064 | 41064-015 | 1 | ||
| AXLE,FRONT | 41068 | 41068-4001 | 1 | ||
| GEAR BOX ASSY | 41078 | 41078-011 | 1 | ||
| BOLT,SOCKET,10X40 | 92001 | 92001-4002 | 1 | ||
| NUT,14MM | 92015 | 42045-020 | 1 | ||
| WASHER THRST SPD PINI | 92022 | 41063-001 | 2 | ||
| WASHER,THRUST | 92022A | 41065-005 | 1 | ||
| COLLAR,FRONT BRAKE | 92027 | 92027-1034 | 1 | ||
| BUSH,SPEEDMETER CABLE | 92028 | 41062-005 | 1 | ||
| CIRCLIP,42MM | 92033 | 92033-1041 | 1 | ||
| PIN,SPRING | 92043 | 41082-001 | 1 | ||
| BEARING,FRONT DRUM | 92045 | 92045-033 | 2 | ||
| SPRING-BRAKE SHOE | 92081 | 42020-004 | 2 | ||
| BOLT-UPSET | 110 | 112G0622 | 1 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 1 | ||
| CIRCLIP 24MM | 480 | 480J2400 | 1 | ||
| PIN,COTTER | 550 | 550D3230 | 1 | ||
| OIL SEAL,#50659 | 654 | 654A506509 | 1 | ||
| "O" RING,15MM | 670 | 670B2015 | 1 |
