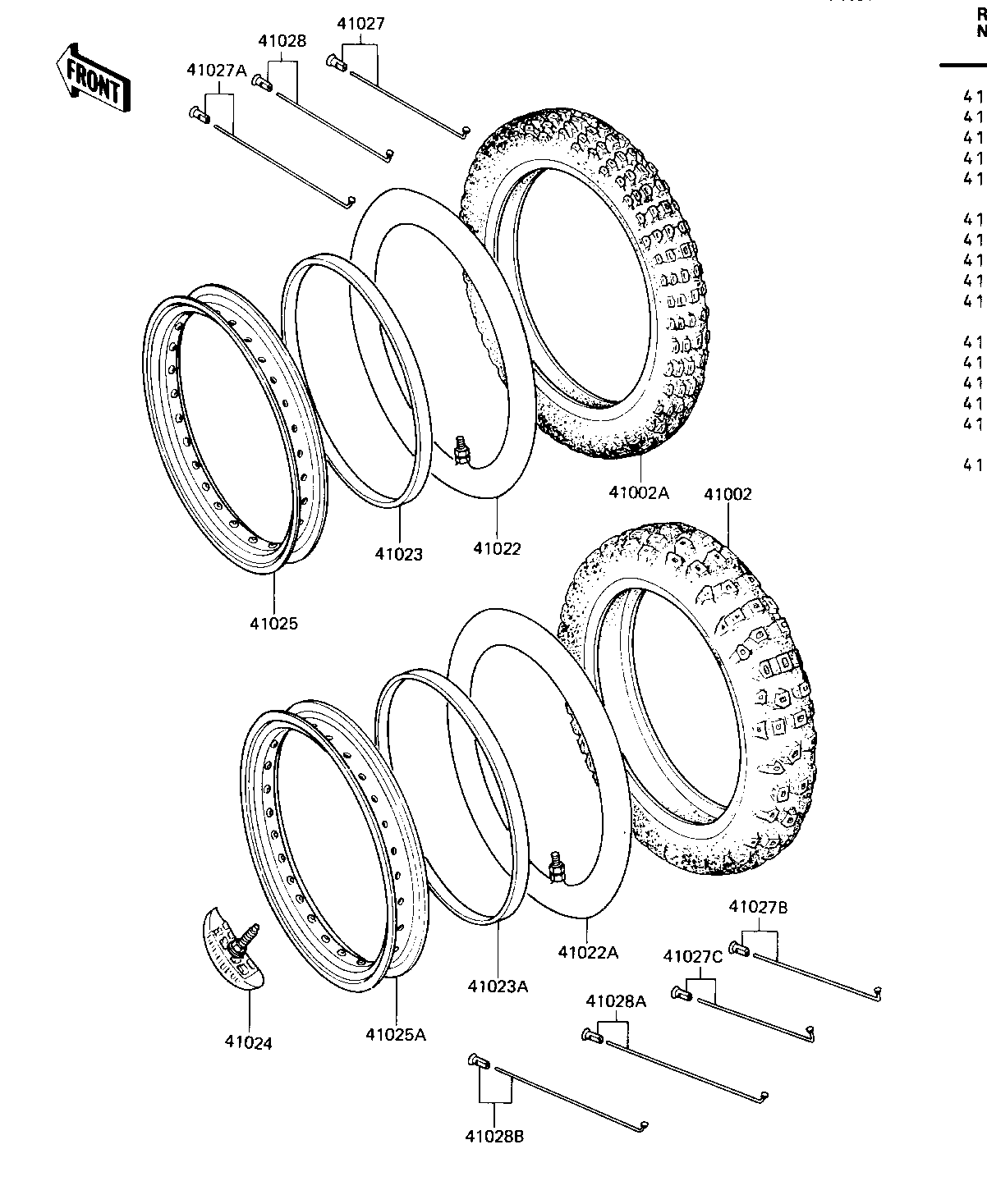

1982 KDX250 - WHEELS/TIRES ('82 KDX250-B2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 510-18 M22 R | 41002 | 41002-1183 | 1 | ||
| TIRE 300-21 M23 F | 41002A | 41002-1229 | 1 | ||
| TUBE-TIRE, 4.50/5.10-18 (BS) | 41022 | 41022-1026 | 1 | ||
| TUBE 450/550-18 | 41022A | K41000-101 | 1 | ||
| BAND,RIM | 41023 | 41023-1009 | 1 | ||
| BAND,RIM | 41023A | 41023-1013 | 1 | ||
| PROTECTORBEAD | 41024 | 41024-009 | 1 | ||
| RIM,FRONT,1.60-21 | 41025 | 41025-1056 | 1 | ||
| RIM,REAR,2.15-18 | 41025A | 41025-1057 | 1 | ||
| SPOKE-ASY,FR INNER | 41027 | 41027-1001 | 9 | ||
| SPOKE-ASY,FR INNER | 41027A | 41027-1002 | 18 | ||
| SPOKE-ASY,RR INNER | 41027B | 41027-1003 | 9 | ||
| SPOKE-ASY,RR INNER | 41027C | 41027-1004 | 9 | ||
| SPOKE-ASY,FR OUTER | 41028 | 41028-1001 | 9 | ||
| SPOKE-ASY,RR OUTER | 41028A | 41028-1002 | 9 | ||
| SPOKE-ASY,RR OUTER | 41028B | 41028-1003 | 9 |
