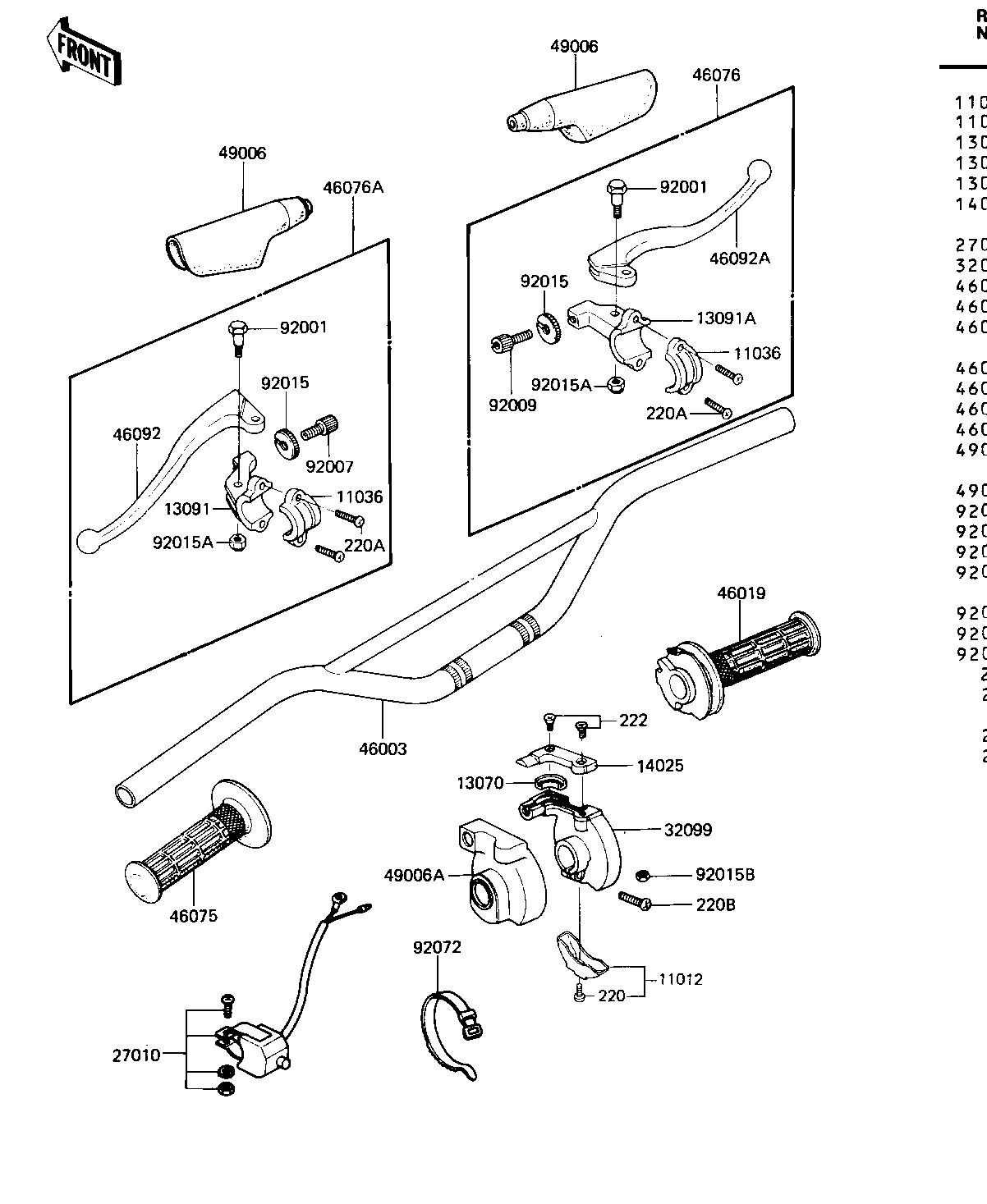

1982 KDX250 - HANDLEBAR ('82 KDX250-B2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP, THROTTLE CASE | 11012 | 11012-1271 | 1 | ||
| BRACKET-A | 11036 | 11036-1297 | 2 | ||
| GUIDE,THROTTLE PEACE | 13070 | 13070-1053 | 1 | ||
| HOLDER,CLUTCH LEVER | 13091 | 13091-1131 | 1 | ||
| HOLDER,BRAKE LEVER | 13091A | 13091-1135 | 1 | ||
| COVER,THROTTLE UPP,RH | 14025 | 14025-1392 | 1 | ||
| SWITCH,ASSY,ENG STOP | 27010 | 27010-1018 | 1 | ||
| CASE,THROTTLE LWR,RH | 32099 | 32099-1024 | 1 | ||
| HANDLEBAR | 46003 | 46003-1093 | 1 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1020 | 1 | ||
| GRIP,LH | 46075 | 46075-1024 | 1 | ||
| LEVER-ASSY-GRIP | 46076 | 46076-1120 | 1 | ||
| LEVER-ASSY-GRIP | 46076A | 46076-1118 | 1 | ||
| LEVER-GRIP,CLUTCH | 46092 | 46092-1110 | 1 | ||
| LEVER-GRIP,BRAKE | 46092A | 46092-1109 | 1 | ||
| DUST COVER | 49006 | 46071-003 | 2 | ||
| BOOT,THROTTLE CASE,RH | 49006A | 49006-1082 | 1 | ||
| BOLT,HEX HEAD,6MM | 92001 | 92001-140 | 2 | ||
| SCREW,CABLE ADJUST | 92007 | 46055-010 | 1 | ||
| SCREW,CABLE ADJUST | 92009 | 46055-009 | 1 | ||
| NUT,CABLE ADJUST LOCK | 92015 | 46056-006 | 2 | ||
| NUT | 92015A | 92019-008 | 2 | ||
| NUT,LOCK,4MM | 92015B | 92019-010 | 1 | ||
| BAND,SHORT | 92072 | 92072-030 | 1 | ||
| SCREW PAN HEAD 4X10 | 220 | 220B0410 | 1 | ||
| SCREW-PAN-CROS | 220A | 220B0514 | 4 | ||
| SCREW PAN HEAD 5X20 | 220B | 220B0520 | 1 | ||
| SCREW OVL CNTSNK 4X12 | 222 | 222E0412 | 2 |
| CAP, THROTTLE CASE | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-A | |
| REF # | 11036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUIDE,THROTTLE PEACE | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH LEVER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,BRAKE LEVER | |
| REF # | 13091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,THROTTLE UPP,RH | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,ASSY,ENG STOP | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,THROTTLE LWR,RH | |
| REF # | 32099 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HANDLEBAR | |
| REF # | 46003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP-ASSY,THROTTLE | |
| REF # | 46019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,LH | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-GRIP | |
| REF # | 46076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-GRIP | |
| REF # | 46076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-GRIP,CLUTCH | |
| REF # | 46092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-GRIP,BRAKE | |
| REF # | 46092A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST COVER | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOOT,THROTTLE CASE,RH | |
| REF # | 49006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6MM | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,CABLE ADJUST | |
| REF # | 92007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,CABLE ADJUST | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CABLE ADJUST LOCK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,4MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,SHORT | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X10 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X20 | |
| REF # | 220B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW OVL CNTSNK 4X12 | |
| REF # | 222 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
