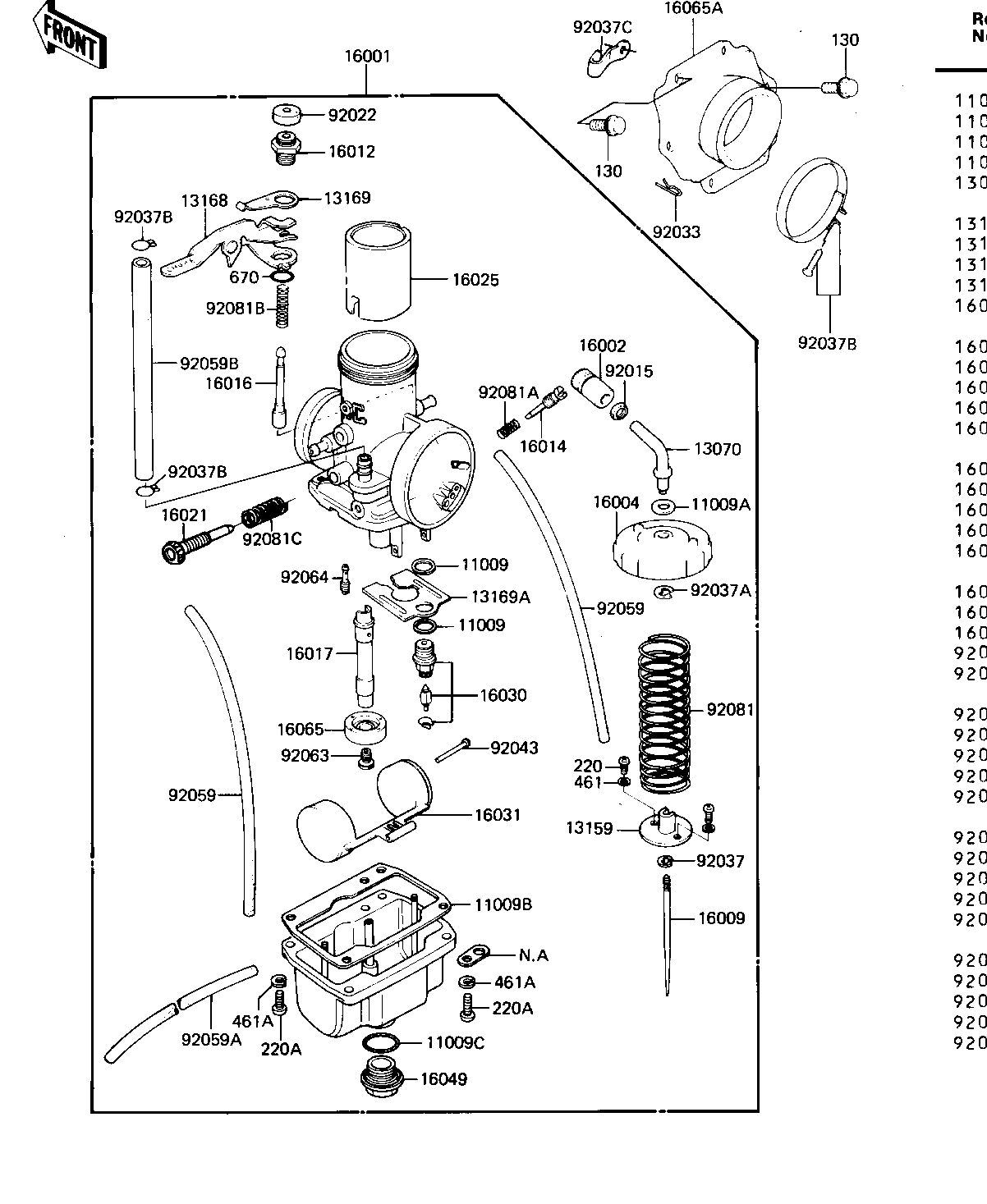

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FLOAT VALVE | 11009 | 11009-1076 | 2 | ||
| GASKET,CABLE GUIDE | 11009A | 11009-1191 | 1 | ||
| GASKET,FLOAT CHAMBER | 11009B | 16019-028 | 1 | ||
| GASKET-COVER | 11009C | 16038-009 | 1 | ||
| GUIDE,CABLE | 13070 | 13070-1014 | 1 | ||
| CONNECTOR,THROTTLE | 13159 | 13159-1010 | 1 | ||
| LEVER,STARTER PLUNGER | 13168 | 13168-1048 | 1 | ||
| SPRING PLATE,STARTER | 13169 | 13169-1052 | 1 | ||
| PLATE,FLOAT CHAMBER | 13169A | 13169-1520 | 1 | ||
| CARBURETOR | 16001 | 16001-1879 | 1 | ||
| ADJUSTER,CABLE | 16002 | 16002-1006 | 1 | ||
| TOP,MIXING CHAMBER | 16004 | 16004-1010 | 1 | ||
| JET NEEDLE,6FJ43 | 16009 | 16009-1117 | 1 | ||
| CAP,STARTER PLUNGER | 16012 | 16012-019 | 1 | ||
| SCREW | 16014 | 16014-006 | 1 | ||
| PLUNGER ASSY,STARTER | 16016 | 16016-1008 | 1 | ||
| NEEDLE JET,R-6 | 16017 | 16017-1112 | 1 | ||
| SCREW,THROTTLE STOP | 16021 | 16021-1034 | 1 | ||
| VALVE,THROTTLE CA3.0 | 16025 | 16025-1072 | 1 | ||
| VALVE-FLOAT | 16030 | 16030-1015 | 1 | ||
| FLOAT | 16031 | 16031-030 | 1 | ||
| HOLDER,NEEDLE JET | 16065 | 16065-1045 | 1 | ||
| HOLDER-CARBURETOR | 16065A | 16065-1048 | 1 | ||
| NUT CABLE ADJUST LOCK | 92015 | 16003-004 | 1 | ||
| CAP,STARTER PLUNGER | 92022 | 16039-015 | 1 | ||
| CIRCLIP | 92033 | 92036-018 | 1 | ||
| CIRCLIP | 92037 | 16008-010 | 1 | ||
| CIRCLIP,CABLE GUIDE | 92037A | 16008-011 | 1 | ||
| CLAMP,CARB CONECT HOS | 92037B | 92037-056 | 2 | ||
| CLAMP,CARBURETOR HLDR | 92037C | 92037-116 | 1 | ||
| PIN,FLOAT | 92043 | 16032-008 | 1 | ||
| TUBE,3.5X6.5X410 | 92059 | 92059-1142 | 2 | ||
| TUBE,3.5X6.5X300 | 92059A | 92059-1235 | 1 | ||
| TUBE,5.8X10.8X180 | 92059B | 92059-1443 | 1 | ||
| MAIN JET,#155R | 92063 | 92063-1025 | 1 | ||
| PILOT JET #60A | 92064 | 92064-031 | 1 | ||
| SPRING,THROTTLE VALVE | 92081 | 16006-028 | 1 | ||
| SPRING-THR STOP SCREW | 92081A | 16022-007 | 1 | ||
| SPRING,STRTR PLUNGER | 92081B | 92081-1181 | 1 | ||
| SPRING,THRTL STP SCRW | 92081C | 92081-1200 | 1 | ||
| BOLT,FLANGED,6X20 | 130 | 130G0620 | 6 | ||
| SCREW PAN HEAD 3X8 | 220 | 220B0308 | 2 | ||
| UNAVAILABLE IN PRICE BOOK | 220A | 214B0516A | 4 | ||
| WASHER SPRING 3MM | 461 | 461F0300 | 2 | ||
| WASHER SPRING 5MM | 461A | 461F0500 | 4 | ||
| "O" RING,9MM | 670 | 670B1509 | 1 |
