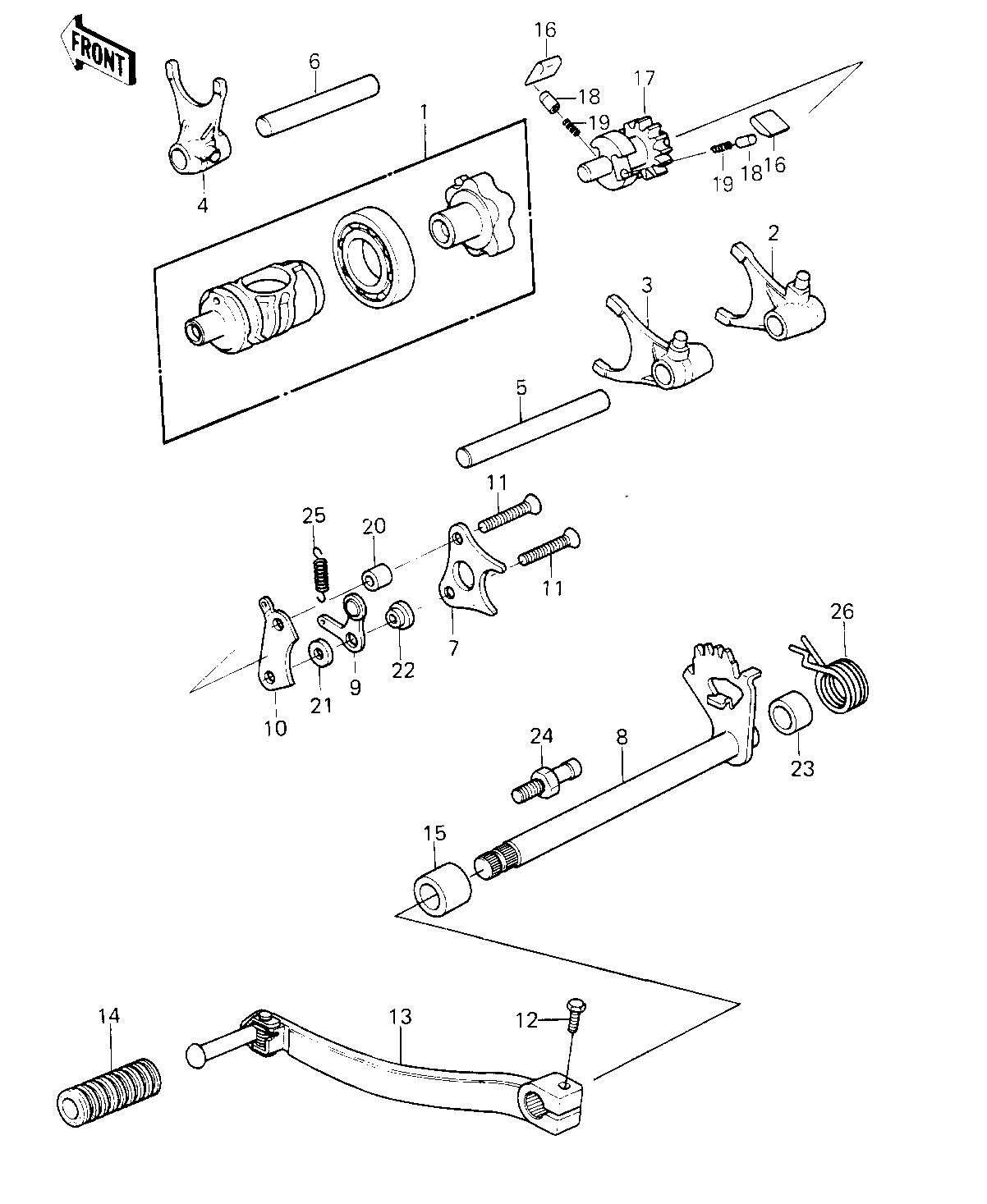

1981 KDX250 - GEAR CHANGE MECHANISM ('81KDX250-B1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM ASSY,GEAR CHANGE | 1 | 13239-1038 | 1 | ||
| FORK,SHIFT,LOW | 2 | 13140-1052 | 1 | ||
| FORK,SHIFT | 3 | 13140-1043 | 1 | ||
| FORK,SHIFT | 4 | 13140-1101 | 1 | ||
| ROD,SHIFT,10X90 | 5 | 49047-1009 | 1 | ||
| ROD,SHIFT,L=65M/M | 6 | 49047-1011 | 1 | ||
| GUIDE,RATCHET | 7 | 13070-1049 | 1 | ||
| LEVER ASSY,GEAR CHNGE | 8 | 13161-1016 | 1 | ||
| LEVER,CHANGE DRUM | 9 | 13236-1021 | 1 | ||
| PLATE,POSITIONING | 10 | 14014-1013 | 1 | ||
| SCREW,COUNTRSUNK,6X28 | 11 | 221B0628 | 2 | ||
| BOLT | 12 | 110P0620 | 1 | ||
| PEDAL,CHANGE | 13 | 13242-1043 | 1 | ||
| DAMPER | 14 | 92075-1310 | 1 | ||
| COLLAR,13.5X22X18 | 15 | 92027-1274 | 1 | ||
| PAWL,RATCHET | 16 | 13165-1026 | 1 | ||
| RATCHET,CHANGE DRUM | 17 | 13216-1020 | 1 | ||
| PIN | 18 | 92043-1067 | 2 | ||
| SPRING,RATCHET PAWL | 19 | 92081-1201 | 2 | ||
| COLLAR,RATCHET GUIDE | 20 | 92027-1234 | 1 | ||
| COLLAR,RATCHET GUIDE | 21 | 92027-1235 | 1 | ||
| COLLAR | 22 | 92027-1248 | 1 | ||
| COLLAR | 23 | 92027-189 | 1 | ||
| PIN,CHANGE PEDAL | 24 | 92043-1055 | 1 | ||
| SPRING-COIL | 25 | 92081-077 | 1 | ||
| SPRING,TENTION | 26 | 92081-1129 | 1 |
