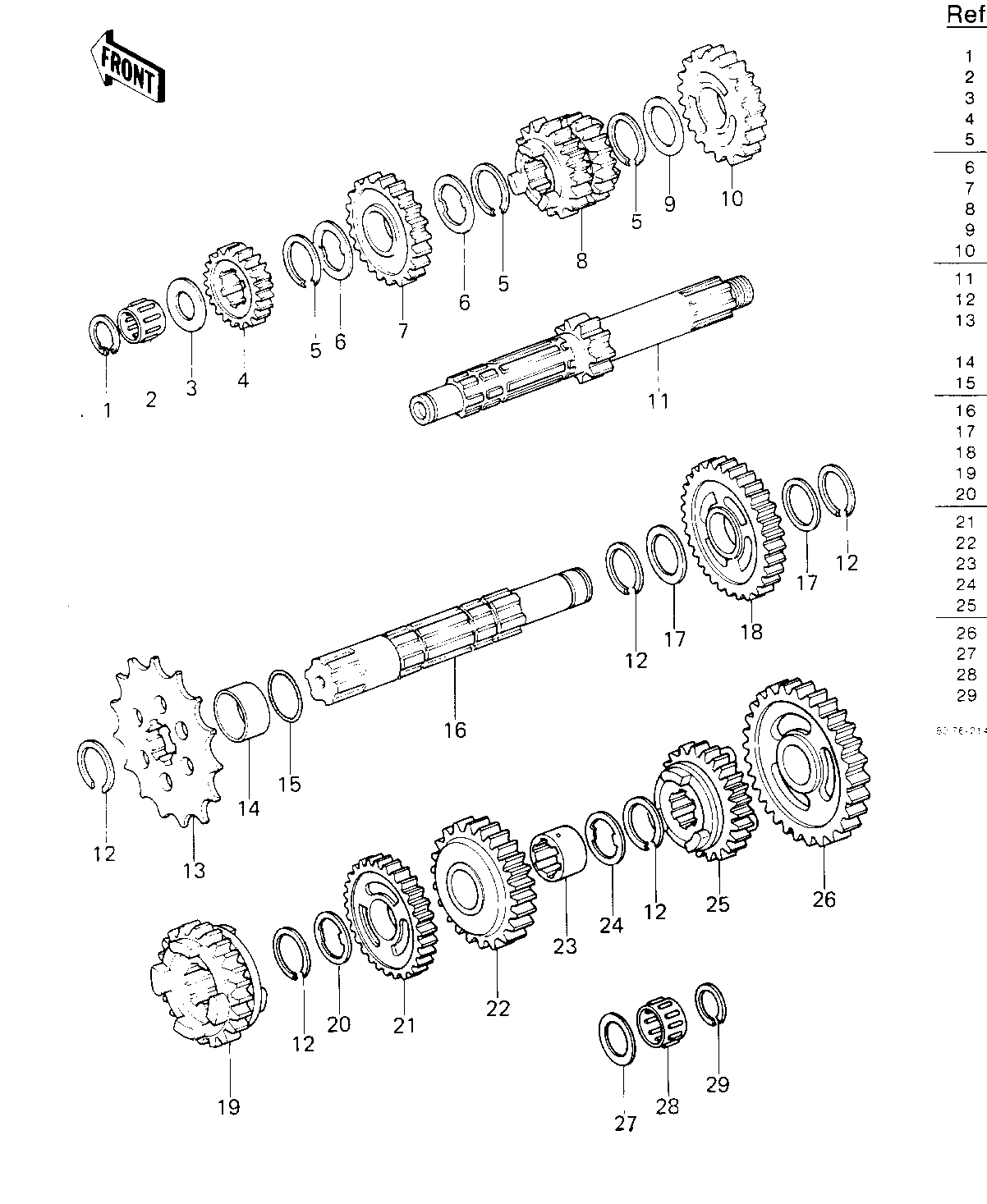

1981 KDX250 - TRANSMISSION ('81KDX250-B1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CIRCLIP,16MM | 1 | 92033-032 | 1 | ||
| BEARING-NEEDLE | 2 | 92046-1184 | 1 | ||
| WASHER,PLAIN | 3 | 92022-281 | 1 | ||
| GEAR,4TH | 4 | 13129-1226 | 1 | ||
| CIRCLIP,25MM | 5 | 92033-025 | 3 | ||
| WASHER-LOCK | 6 | 92024-039 | 2 | ||
| GEAR,TOP | 7 | 13129-1228 | 1 | ||
| GEAR,INPUT 2ND&3RD | 8 | 13129-1599 | 1 | ||
| WASHER-PLAIN | 9 | 92022-198 | 1 | ||
| GEAR,5TH | 10 | 13129-1227 | 1 | ||
| GEAR,LOW | 11 | 13127-1033 | 1 | ||
| CIRCLIP | 12 | 92033-026 | 5 | ||
| ENGINE SPROCKET 13T | 13 | 13144-055 | 1 | STD | |
| ENGINE SPROCKET,14T | 13 | 13144-1006 | (1 | OPT | |
| COLLAR-ENG SPROKET | 14 | 92027-163 | 1 | ||
| "O" RING | 15 | 92055-035 | 1 | ||
| OUTPUT SHAFT | 16 | 13128-1029 | 1 | ||
| WASHER-PLAIN 25MM | 17 | 92022-159 | 2 | ||
| GEAR,4TH | 18 | 13129-1232 | 1 | ||
| TOP GEAR,OUTPUT SHAFT | 19 | 13129-1234 | 1 | ||
| WASHER,LOCK,30X1.OT | 20 | 92022-1072 | 1 | ||
| GEAR,3RD | 21 | 13129-1231 | 1 | ||
| GEAR,2ND | 22 | 13129-1230 | 1 | ||
| BUSHING,OUTPUT GEAR | 23 | 92028-1268 | 1 | ||
| WASHER-LOCK | 24 | 92024-038 | 1 | ||
| GEAR,OUTPUT 57H,20T | 25 | 13129-1352 | 1 | ||
| GEAR,LOW | 26 | 13129-1229 | 1 | ||
| WASHER THRUST | 27 | 92022-112 | 1 | ||
| BEARING-NEEDLE,KT2026 | 28 | 92046-1170 | 1 | ||
| CIRCLIP,18MM | 29 | 92033-029 | 1 |
