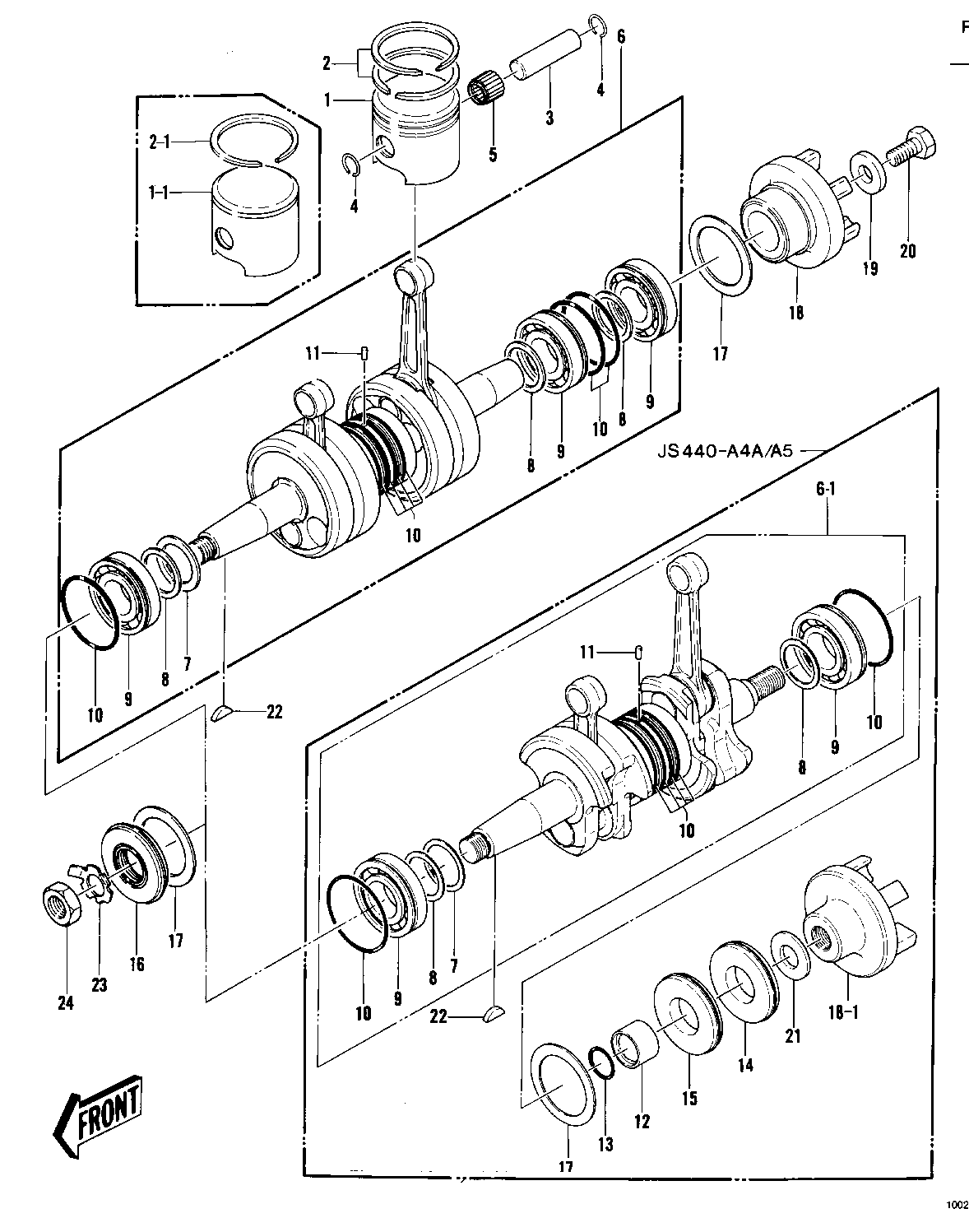

1981 JS440 - CRANKSHAFT/PISTONS ('79-'81 A3/A4/A4A/A5
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON-ENGINE,STD | 1 | 13001-6001 | 2 | USE RING SET 13008-530 | |
| PISTON-ENGINE,STD | 1-1 | 13001-3017 | (2 | USE RING SET 13003-3014 | |
| PISTON-ENGINE,0.50 | 1-1 | 13029-3001 | (2 | USE RING SET 13003-3015 | |
| PISTON RING SET | 2 | 13008-530 | 2 | USE FOR 13001-505 | |
| PISTON RING SET,0.25 | 2 | 13026-502 | (2 | USE FOR 13030-502 | |
| RING-PISTON TOP,STD | 2-1 | 13003-3014 | (2 | USE FOR 13001-3017 | |
| RING-PISTON TOP,0.50 | 2-1 | 13003-3015 | (2 | USE FOR 13029-3001 | |
| PIN-PISTON | 3 | 13002-504 | 2 | ||
| CIRCLIP PISTON PIN | 4 | 92036-004 | 4 | ||
| CIRCLIP PISTON PIN | 4 | 92036-004 | 4 | ||
| BEARING-SMALL END | 5 | 13033-3005 | 2 | ||
| BEARING-SMALL END | 5 | 13033-3005 | 2 | ||
| CRANKSHAFT ASSY | 6 | 13036-523 | 1 | ||
| SHIM-1.0T | 7 | 92025-532 | 1 | ||
| SHIM 0.1T | 8 | 92025-513 | AR | ||
| SHIM 0.2T | 8 | 92025-518 | AR | ||
| SHIM 0.3T | 8 | 92025-523 | AR | ||
| SHIM 0.4T | 8 | 92025-527 | AR | ||
| SHIM 0.5T | 8 | 92025-530 | AR | ||
| SHIM 0.6T | 8 | 92025-533 | AR | ||
| BEARING-BALL | 9 | 92045-505 | 3 | ||
| O-RING | 10 | 92055-504 | 7 | ||
| PIN,DOWEL | 11 | 551A0410 | 1 | ||
| SEAL,OIL TCY306210 | 16 | 92050-507 | 1 | ||
| WASHER | 17 | 92022-3021 | 2 | ||
| COUPLING ASSY,DRIVER | 18 | 42053-3003 | 1 | ||
| WASHER,6.0T | 19 | 92022-568 | 1 | ||
| BOLT,1/2 INCHX27 | 20 | 92003-537 | 1 | ||
| WOODRUFF KEY | 22 | 510A5200 | 1 | ||
| WASHER,LOCK,20M/M | 23 | 92022-569 | 1 | ||
| NUT,20M/M | 24 | 92015-535 | 1 |
