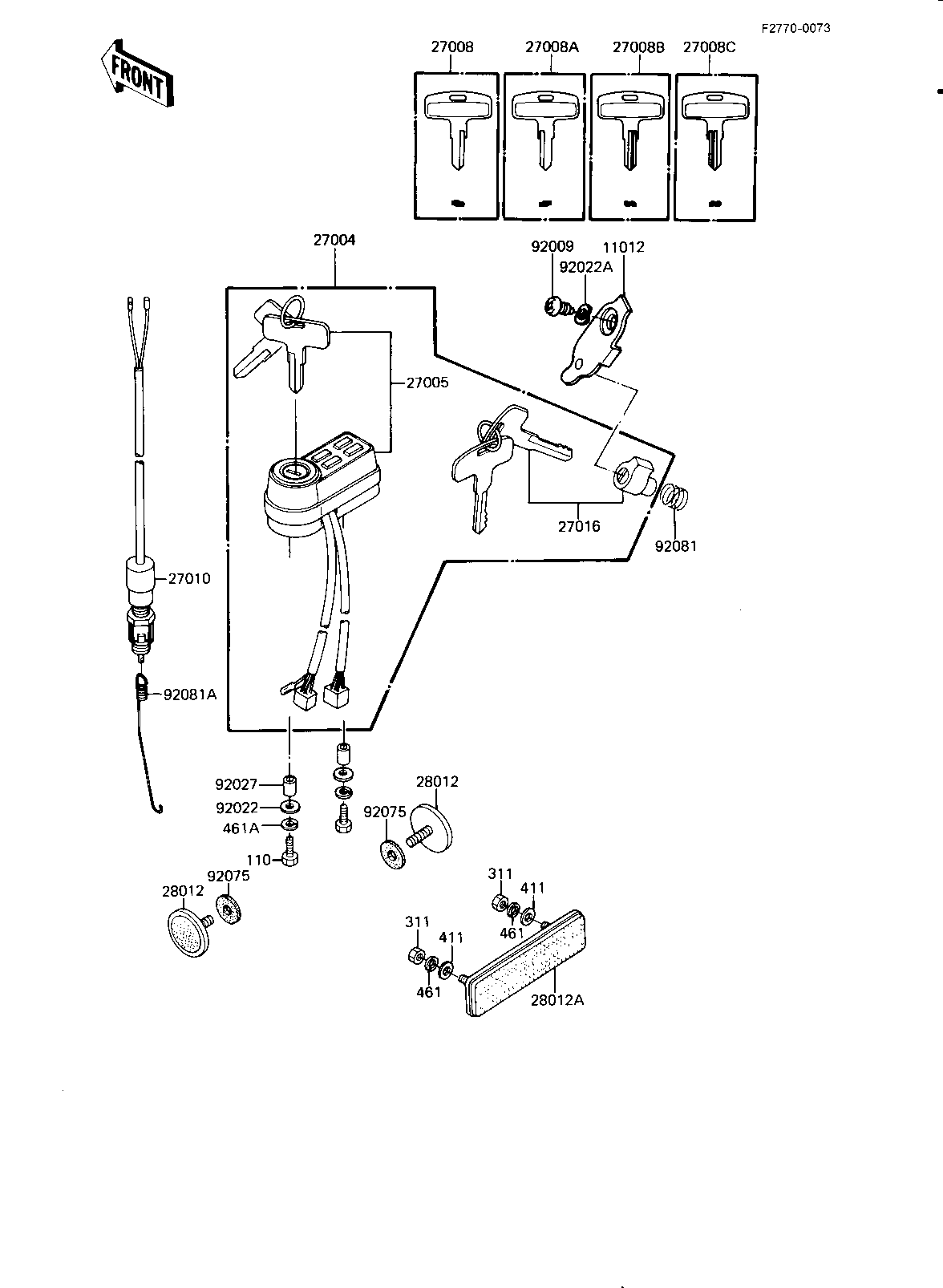

1982 KE175 - IGNITION SWITCH/LOCKS/REFLECTORS ('82-'8

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING LOCK 11012 11012-1134 1
LOCK ASSY,KE175-D2 27004 27004-5018 1
SWITCH ASSY,IGNITION 27005 27005-1005 1
KEY,BLANK 27008 27008-1024 1 (OPTION)
KEY,BLANK 27008A 27008-1025 1 (OPTION)
KEY,BLANK 27008B 27008-1026 1 (OPTION)
KEY,BLANK 27008C 27008-1027 1 (OPTION)
SWITCH,BRAKE LIGHT 27010 27010-025 1
LOCK ASSY,STEERING 27016 27016-042 1
REFLECTOR,REFLEX 28012 28012-016 2
REFLECTOR,REAR REFLEX 28012A 28012-1005 1
SCREW-TAPPING 92009 92008-007 1
WASHER 6.5X20X1.6T 92022 92022-125 2
WASHER 92022A 92097-003 1
COLLAR,REAR FENDER 92027 92027-162 2
DAMPER RUBBER,REFLECT 92075 92094-011 2
SPRING-STEERING LOCK 92081 27032-001 1
SPRING,BRAKE SWITCH 92081A 92081-1082 1
BOLT 6X22 110 112B0622 2
NUT,5MM 311 311B0500 2
WASHER PLAIN 5MM 411 411B0500 2
WASHER SPRING 5MM 461 461F0500 2
WASHER SPRING 6MM 461A 461F0600 2
