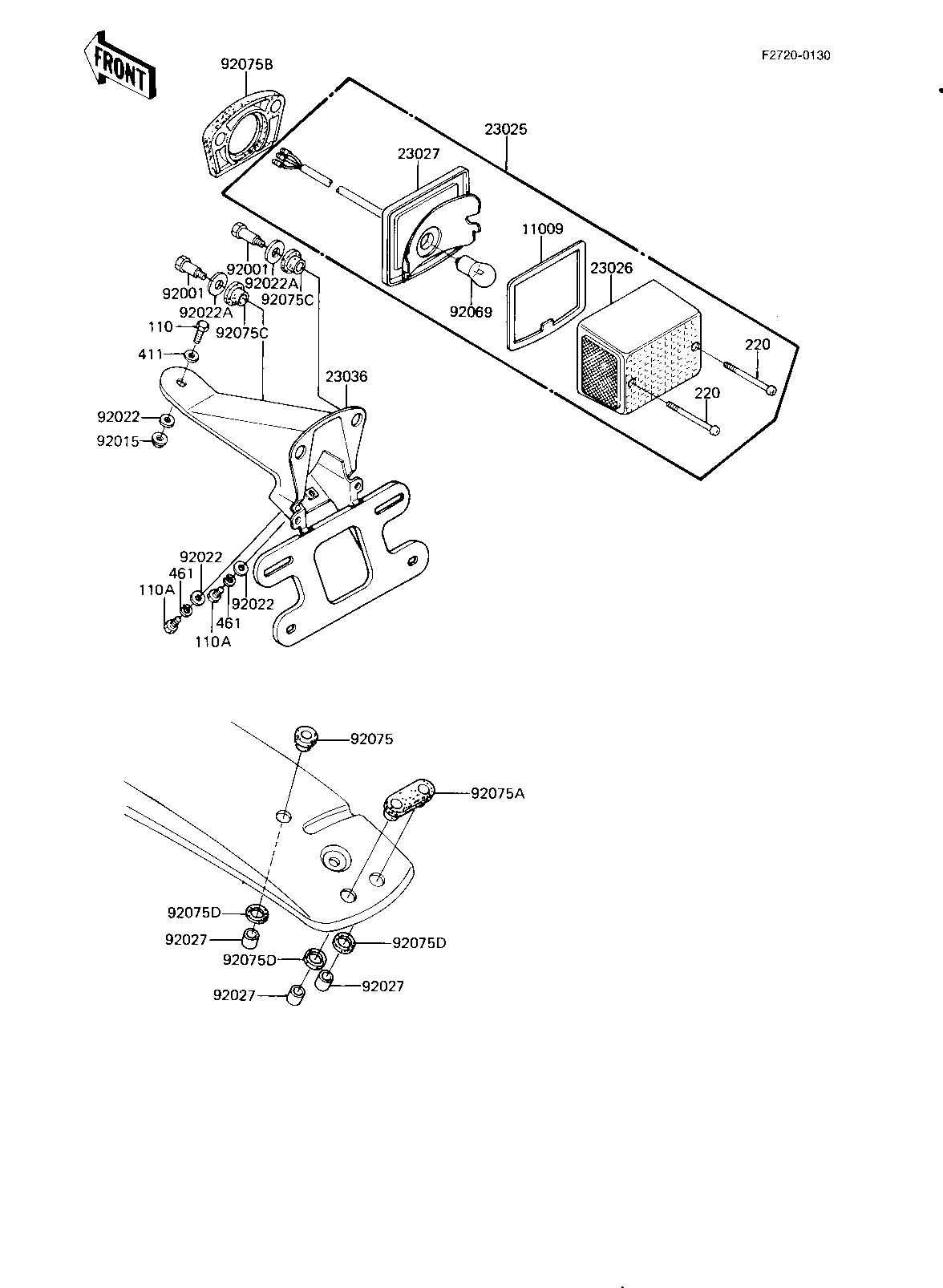

1982 KE175 - TAILLIGHT ('82-'83 KE175-D4/D5)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TAIL LAMP LENS | 11009 | 11009-1078 | 1 | ||
| LAMP-TAIL | 23025 | 23025-1032 | 1 | ||
| LENS,TAIL LAMP | 23026 | 23026-1003 | 1 | ||
| CASE,TAIL LAMP | 23027 | 23027-1020 | 1 | ||
| BRACKET,LICENSE PLATE | 23036 | 23036-1010 | 1 | ||
| BOLT,HEX HEAD | 92001 | 92001-1118 | 2 | ||
| NUT-6MM | 92015 | 92015-1078 | 1 | ||
| WASHER 6.5X20X1.6T | 92022 | 92022-125 | 3 | ||
| WASHER,8.5X20X1.6 | 92022A | 92022-1561 | 2 | ||
| COLLAR 6.8X10X14.5 | 92027 | 92027-156 | 3 | ||
| BULB,60-32/3CP | 92069 | 92069-074 | 1 | ||
| DAMPER,TAIL LAMP | 92075 | 92075-1004 | 1 | ||
| DAMPER,TAIL LAMP | 92075A | 92075-1005 | 1 | ||
| DAMPER RUBBER,TL LAMP | 92075B | 92075-1094 | 1 | ||
| DAMPER RUBBER | 92075C | 92075-1095 | 2 | ||
| DAMPER RUBBER,SIGNAL | 92075D | 92075-310 | 3 | ||
| BOLT-UPSET | 110 | 112G0630 | 1 | ||
| BOLT-UPSET | 110A | 112G0630 | 2 | ||
| SCREW-PAN-CROS,4X40 | 220 | 220R0440 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 1 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 2 |
