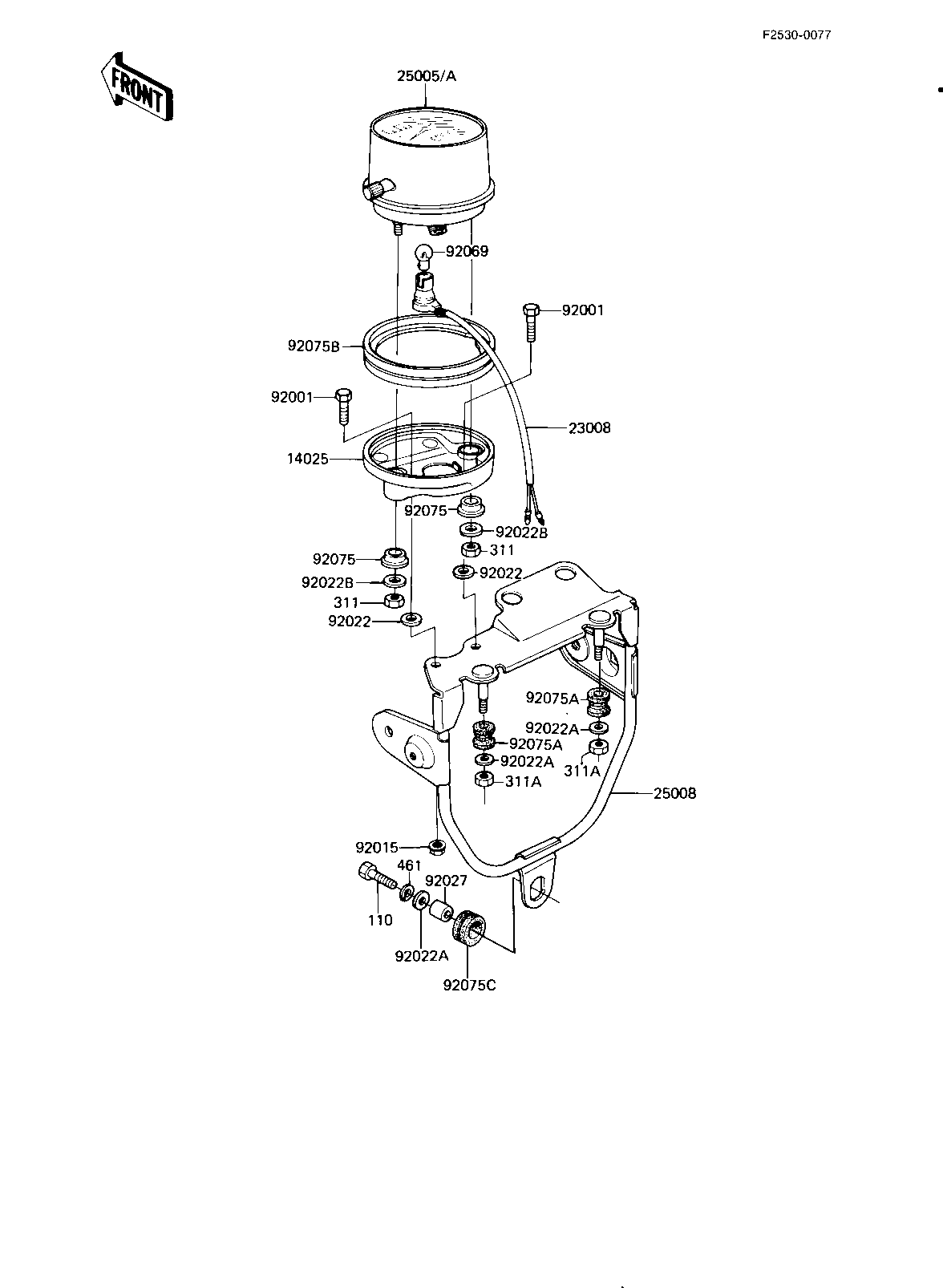

1982 KE175 - METER ('82-'83 KE175-D4/D5)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,METER | 14025 | 14025-1075 | 1 | ||
| SOCKET ASSY,SPEEDOMET | 23008 | 25010-021 | 1 | ||
| SPEEDOMETER,KM/H&MPH | 25005 | 25005-1049 | 1 | US | |
| SPEEDOMETER,KM/H | 25005A | 25005-1050 | 1 | CN | |
| BRACKET,METER | 25008 | 25008-1009 | 1 | ||
| BOLT,HEX HEAD,6X14 | 92001 | 92003-204 | 2 | ||
| NUT-6MM | 92015 | 92015-1078 | 2 | ||
| WASHER,6M/M,METER | 92022 | 92022-1039 | 2 | ||
| WASHER 6.5X20X1.6T | 92022A | 92022-125 | 3 | ||
| WASHER,PLAIN,6MM | 92022B | 92022-263 | 2 | ||
| COLLAR,REAR FENDER | 92027 | 92027-162 | 1 | ||
| BULB-6V 3W | 92069 | 92069-053 | 1 | ||
| DAMPER RUBBER,MET FIT | 92075 | 25019-023 | 2 | ||
| DAMPER RUBB SPEEDMETR | 92075A | 92075-024 | 2 | ||
| DAMPER,METER | 92075B | 92075-1102 | 1 | ||
| DAMPER RUBBER,RR FENR | 92075C | 92075-209 | 1 | ||
| BOLT-UPSET | 110 | 112G0625 | 1 | ||
| NUT,5MM | 311 | 311B0500 | 2 | ||
| NUT 6MM | 311A | 311B0600 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 1 |
