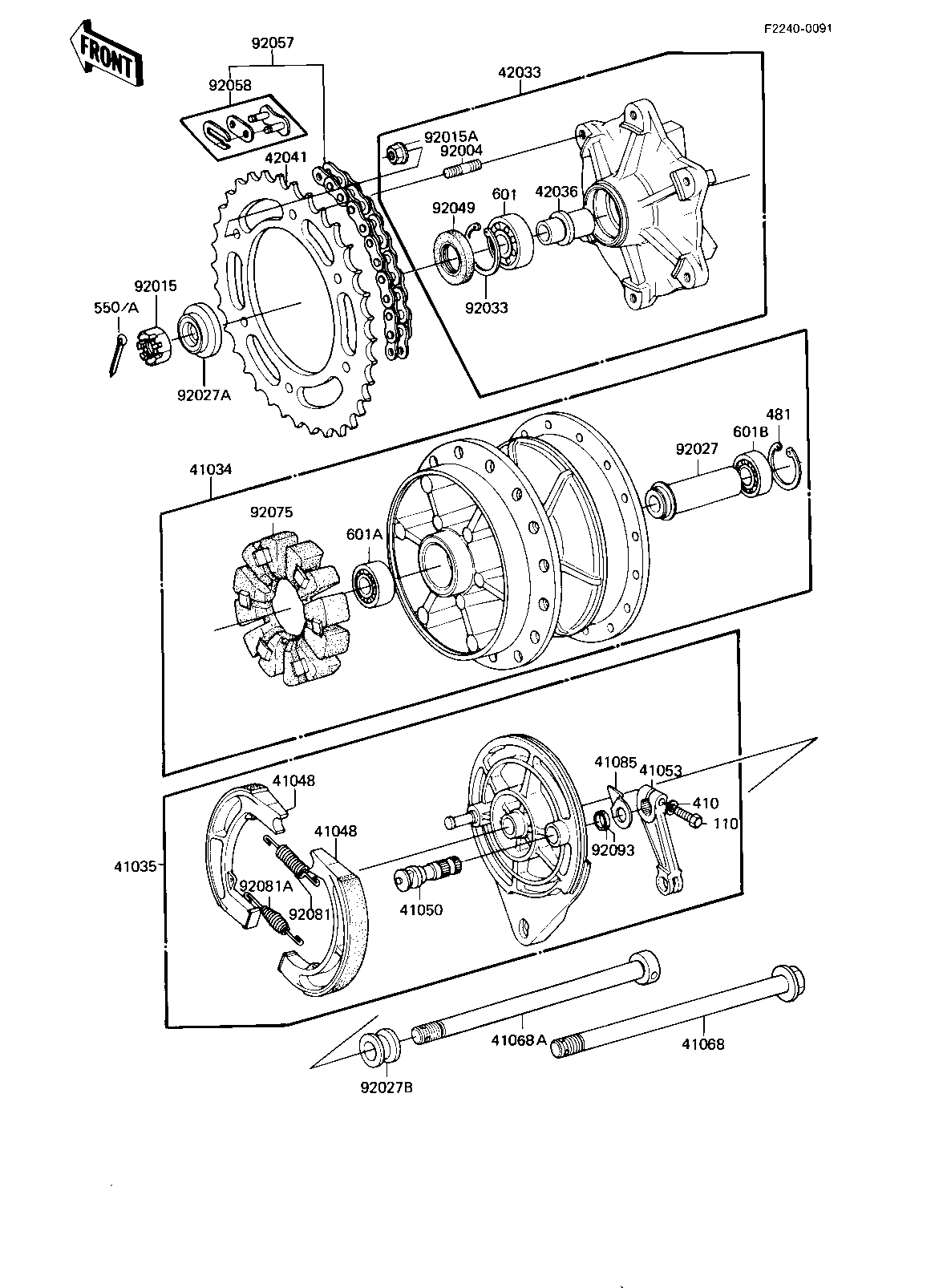

1982 KE175 - REAR HUB/BRAKE/CHAIN ('82-'83 KE175-D4/D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,RR BRK | 41034 | 41034-1015 | 1 | ||
| PANEL-ASY,RR BRK | 41035 | 41035-1017 | 1 | ||
| SHOE BRAKE | 41048 | 41048-1012 | 2 | ||
| CAM,BRAKE,REAR | 41050 | 41050-1011 | 1 | ||
| LEVER,BRAKE CAM,REAR | 41053 | 41053-1013 | 1 | ||
| AXLE,RR,L=266 | 41068 | 41068-1103 | 1 | ||
| INDICATOR,FR BRK SHOE | 41085 | 41085-017 | 1 | ||
| COUPLING ASSY,RR HUB | 42033 | 42033-1007 | 1 | ||
| SLEEVE,RR HUB COUPLIN | 42036 | 42036-1020 | 1 | ||
| SPROCKET,REAR,44T | 42041 | 42041-1050 | 1 | ||
| STUD,8X17 | 92004 | 92004-1015 | 6 | ||
| NUT,14MM | 92015 | 42045-020 | 1 | ||
| NUT-8MM | 92015A | 92015-1022 | 6 | ||
| COLLER,REAR BRAKE | 92027 | 92027-1099 | 1 | ||
| COLLAR,REAR AXLE,L.H | 92027A | 92027-1100 | 1 | ||
| COLLAR,REAR AXLE,R.H | 92027B | 92027-1101 | 1 | ||
| CIRCLIP,42MM | 92033 | 92033-1041 | 1 | ||
| OIL SEAL,RR HUB BRNG | 92049 | 92050-060 | 1 | ||
| CHAIN,DR.EK428SHX116L | 92057 | 92057-1096 | 1 | ||
| JOINT-CHAIN | 92058 | 92058-1015 | 1 | ||
| DAMPER,RR HUB,SHOCK | 92075 | 92075-1068 | 1 | ||
| SPRING,BRAKE SHOE | 92081 | 92081-1766 | 1 | ||
| SPRING,BRAKE SHOE | 92081A | 92081-1550 | 1 | ||
| DUST SHIELD BRAKE CAM | 92093 | 41051-001 | 1 | ||
| BOLT-UPSET | 110 | 112G0625 | 1 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 1 | ||
| CIRCLIP,35MM | 481 | 481J3500 | 1 | ||
| PIN COTTER 3.0X30 | 550A | 550D3030 | 1 | ||
| BEARING BALL #6004 | 601 | 601B6004 | 1 | ||
| BEARING BALL #6202 | 601A | 601B6202 | 1 | ||
| BEARING,BALL,#6202UC3 | 601B | 601B6202U | 1 |
