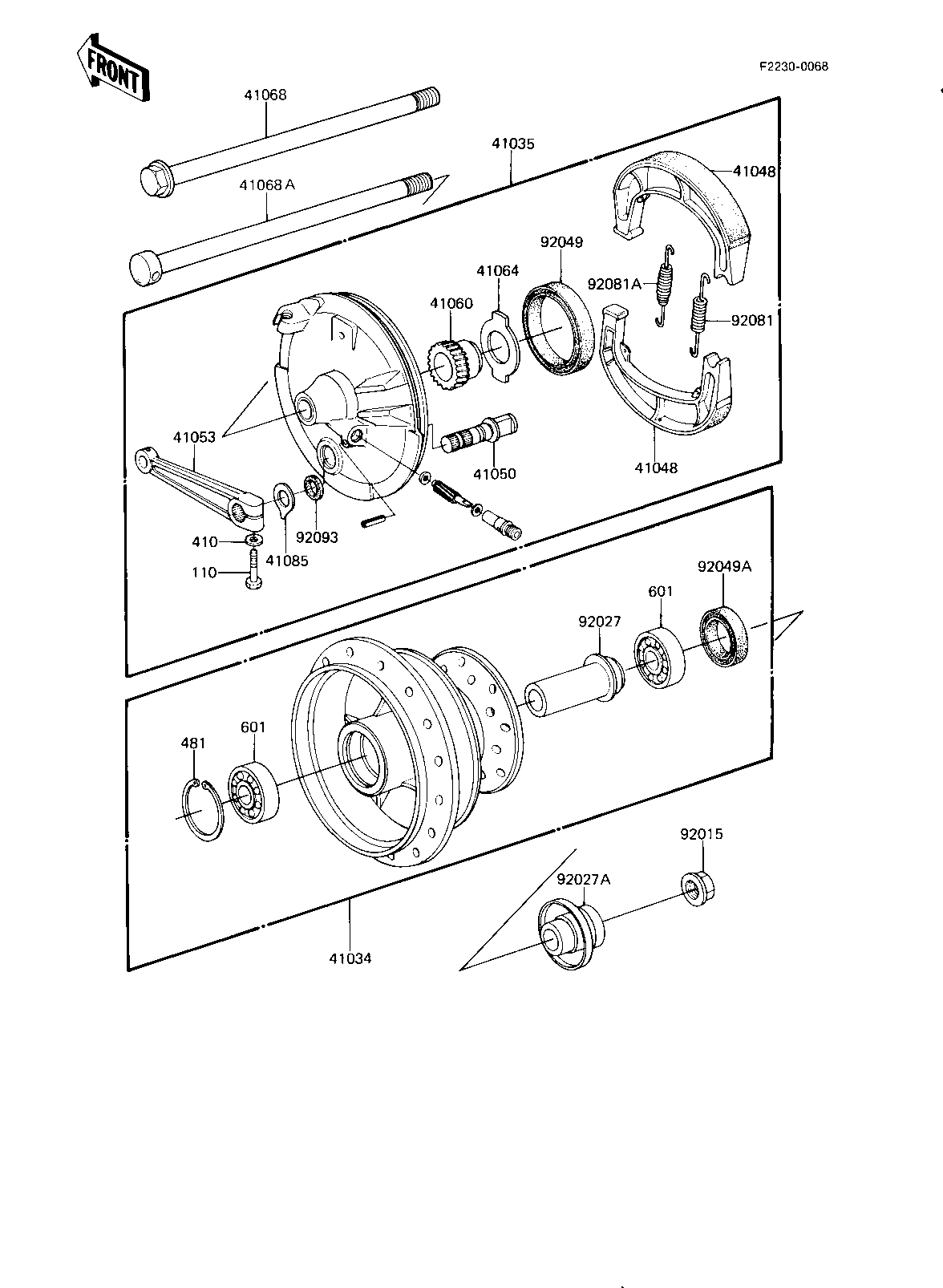

1982 KE175 - FRONT HUB/BRAKE ('82-'83 KE175-D4/D5)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,FR BRK | 41034 | 41034-1014 | 1 | ||
| PANEL-ASY,FR BRK | 41035 | 41035-1045 | 1 | ||
| SHOE,BRAKE | 41048 | 41048-015 | 2 | ||
| CAM,BRAKE,FRONT | 41050 | 41050-1010 | 1 | ||
| LEVER,BRAKE FRONT | 41053 | 41053-1012 | 1 | ||
| GEAR,SPEEDOMETER,24T | 41060 | 41060-1017 | 1 | ||
| RECIEVER-SPEED GEAR | 41064 | 41064-006 | 1 | ||
| AXLE,FR,L=215 | 41068 | 41068-1095 | 1 | ||
| INDICATOR,BRAKE SHOE | 41085 | 41085-1003 | 1 | ||
| NUT-12MM | 92015 | 92015-1156 | 1 | ||
| COLLAR,FR BRAKE DRUM | 92027 | 92027-1097 | 1 | ||
| COLLAR,FRONT AXLE | 92027A | 92027-1098 | 1 | ||
| OIL SEAL F BRK PANEL | 92049 | 92050-010 | 1 | ||
| OIL SEAL,FR BK DRUM | 92049A | 92050-059 | 1 | ||
| SPRING,BRAKE SHOE | 92081 | 92081-1766 | 1 | ||
| SPRING,BRAKE SHOE | 92081A | 92081-1550 | 1 | ||
| DUST SHIELD BRAKE CAM | 92093 | 41051-001 | 1 | ||
| BOLT-UPSET | 110 | 112G0625 | 1 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 1 | ||
| CIRCLIP.37MM | 481 | 481J3700 | 1 | ||
| BEARING BALL #6301 | 601 | 601B6301 | 2 |
