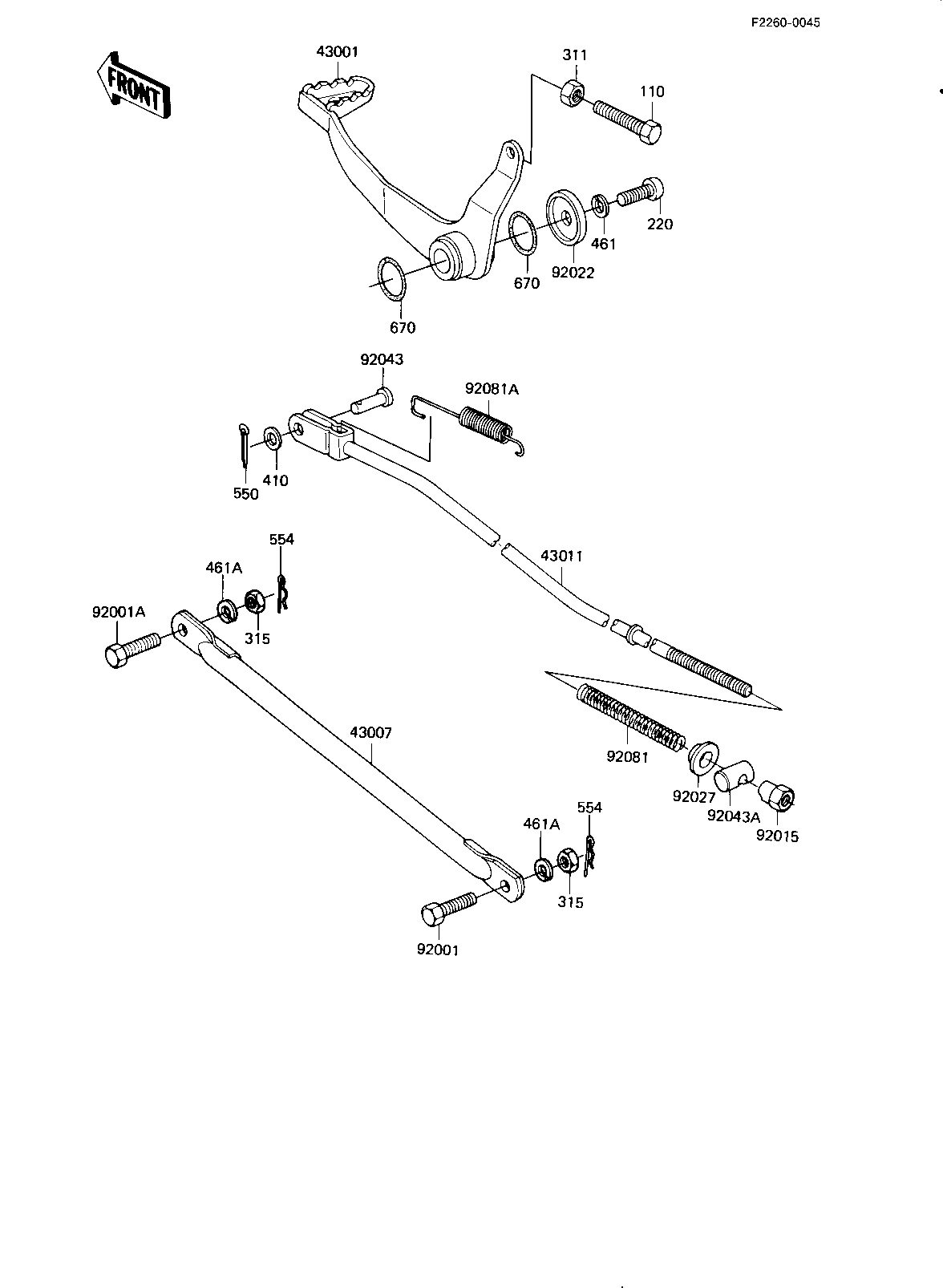

1982 KE175 - BRAKE PEDAL/TORQUE LINK ('82-'83 KE175-D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PEDAL,BRAKE | 43001 | 43001-1020 | 1 | ||
| TORQUE LINK,REAR BRAK | 43007 | 43007-048 | 1 | ||
| ROD,BRAKE | 43011 | 43011-1009 | 1 | ||
| BOLT HEX HEAD 10X25 | 92001 | 92003-003 | 1 | ||
| BOLT TORQUE LINK FIT | 92001A | 92003-017 | 1 | ||
| NUT-BRAKE ROD ADJUST | 92015 | 92015-042 | 1 | ||
| WASHER,PLAIN,6MM | 92022 | 92022-284 | 1 | ||
| COLLAR | 92027 | 92027-122 | 1 | ||
| PIN-BRAKE ROD FITTING | 92043 | 92043-064 | 1 | ||
| PIN-BRAKE ROD | 92043A | 92043-065 | 1 | ||
| SPRING,BRAKE ROD | 92081 | 43012-001 | 1 | ||
| SPRING,BRAKE PEDAL | 92081A | 92081-1071 | 1 | ||
| BOLT-UPSET,6X20 | 110 | 112G0620 | 1 | ||
| SCREW PAN HEAD 6X12 | 220 | 220B0612 | 1 | ||
| NUT 6MM | 311 | 311B0600 | 1 | ||
| NUT 10MM | 315 | 315B1000 | 2 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 1 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 1 | ||
| WASHER SPRING 10MM | 461A | 461F1000 | 2 | ||
| PIN COTTER 2.0X15 | 550 | 550D2015 | 1 | ||
| PIN,SNAP | 554 | 554A0800 | 2 | ||
| "0" RING,16MM | 670 | 670B2016 | 2 |
