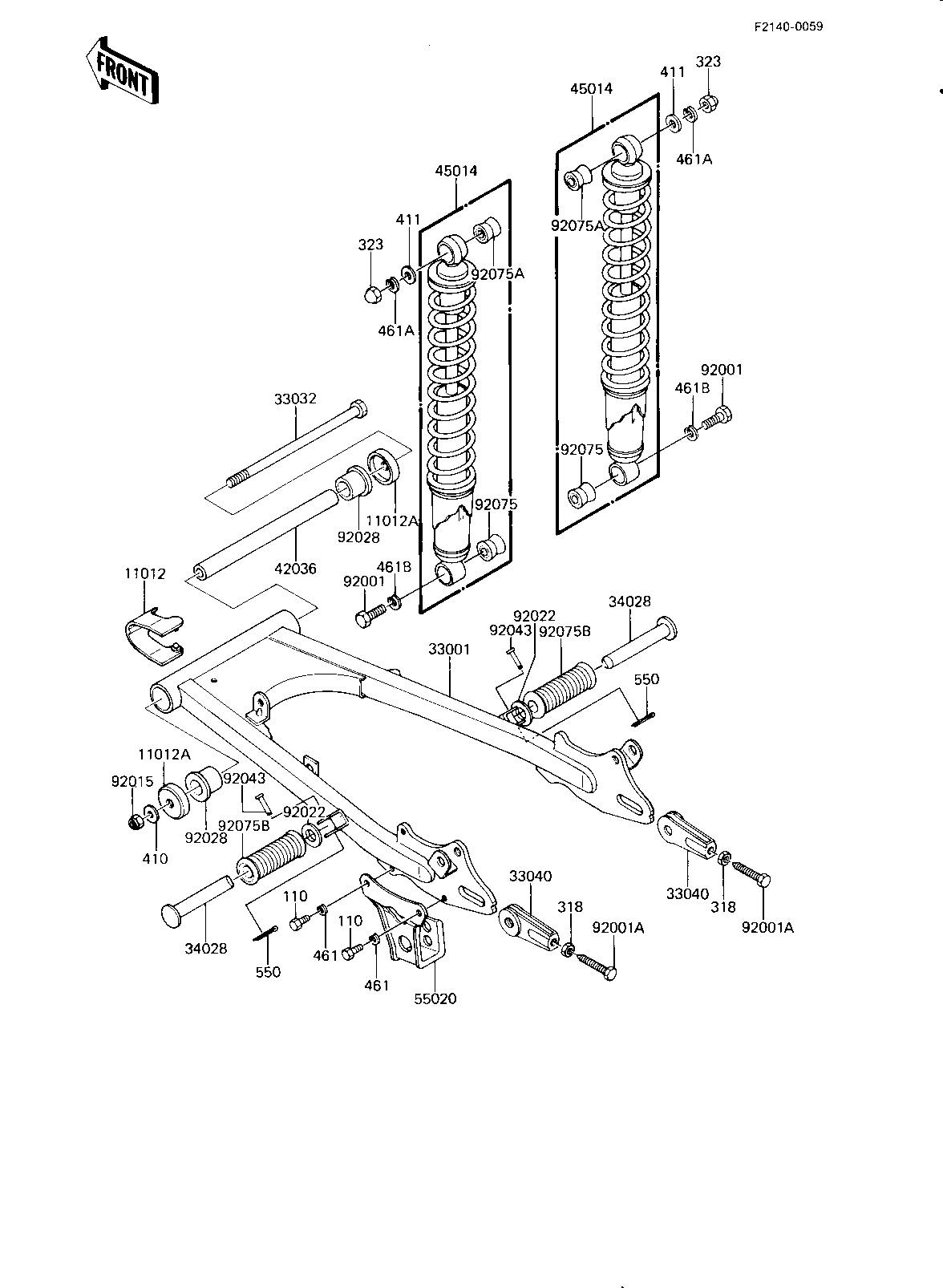

1982 KE175 - SWING ARM/SHOCK ABSORBERS ('82-'83 KE175

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUARD,CHAIN,FR 11012 55020-1063 1
CAP,SWING ARM 11012A 11012-1036 2
SWING ARM 33001 33001-1061 1
SHAFT,SWING ARM 33032 33032-1005 1
ADJUSTER,CHAIN 33040 33040-1010 2
BAR-RR FOOTREST (OPT) 34028 34028-009 2
SLEEVE,SWING ARM 42036 42036-1019 1
SHOCK ABSBR RR 45014 45014-1137 2
GUARD,CHAIN 55020 55020-1026 1
BOLT,HEX HEAD 10X35 92001 92001-1252 2
BOLT,8X50 92001A 92001-1399 2
NUT-LOCK,12MM 92015 92019-009 1
WASHER-PLAIN (OPT) 92022 92022-199 2
BUSH,SWING ARM 92028 92028-1027 2
PIN 92043 92043-1464 2
BUSHING,SHOCK ABSORBE 92075 92075-1216 2
BUSHING,SHOCK ABSORBE 92075A 92075-1217 2
RUBBER,REAR FOOTREST 92075B 92076-024 2
BOLT-UPSET,6X12 110 112G0612 2
NUT 8MM 318 318B0800 2
NUT,CAP,8M/M 323 323N0800 2
WASHER PLAIN 12MM 410 410B1200 1
WASHER PLAIN 8MM 411 411B0800 2
WASHER SPRING 6MM 461 461F0600 2
WASHER SPRING 8MM 461A 461F0800 2
WASHER SPRING 10MM 461B 461F1000 2
PIN COTTER 2.0X15 550 550D2015 2
