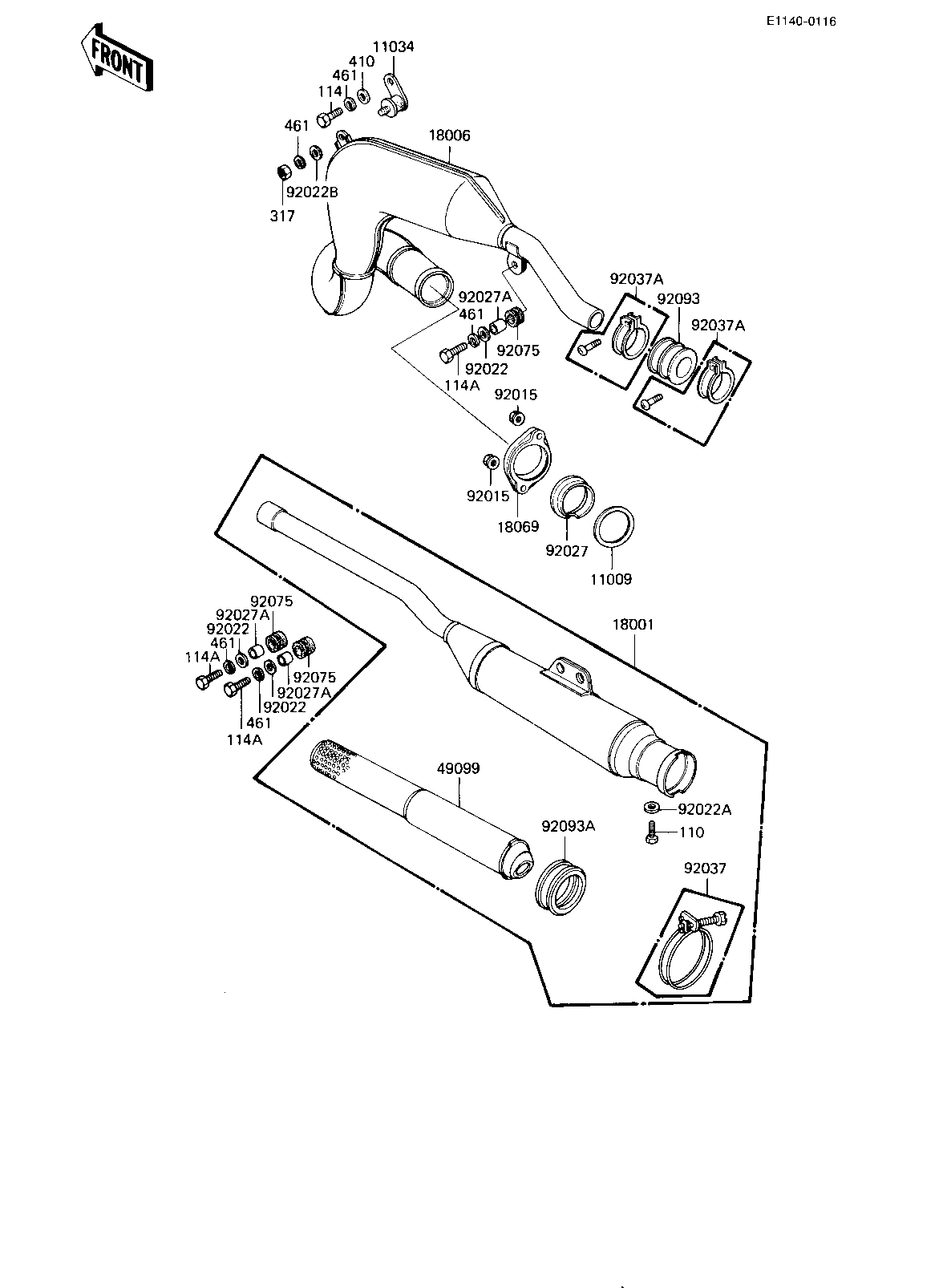

1982 KE175 - MUFFLER ('82-'83 KE175-D4/D5)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET EXHAUST PIPE | 11009 | 18067-008 | 1 | ||
| BRACKET,MUFFLER | 11034 | 18061-060 | 1 | ||
| MUFFLER ASSY | 18001 | 18001-1153 | 1 | ||
| BODY,MUFFLER | 18006 | 18006-1050 | 1 | ||
| HOLDER,EXHAUST | 18069 | 18069-049 | 1 | ||
| BAFFLE PIPE,MUFFLER | 49099 | 49099-1006 | 1 | ||
| NUT,8M/M | 92015 | 92015-1014 | 2 | ||
| WASHER,8X26X2.3 | 92022 | 92022-1564 | 3 | ||
| WASHER OIL PUMP BANJO | 92022A | 92022-077 | 1 | ||
| WASHER,8.5X20X1.6 | 92022B | 92022-1561 | 1 | ||
| INSERT,EXHAUST HOLDER | 92027 | 18070-007 | 1 | ||
| COLLAR | 92027A | 92027-102 | 3 | ||
| CLAMP MUFFLER | 92037 | 92037-1190 | 1 | ||
| CLAMP,CARBURETOR HOLD | 92037A | 92037-1242 | 2 | ||
| DAMPER RUBBER-MUFFLER | 92075 | 18063-005 | 3 | ||
| SEAL,EXHAUST PIPE | 92093 | 92093-1012 | 1 | ||
| DUST SHIELD,MUFFLER | 92093A | 92093-1013 | 1 | ||
| BOLT HEX HEAD 6X8 | 110 | 110B0608 | 1 | ||
| BOLT-SMALL-UPSET,8X16 | 114 | 115G0816 | 1 | ||
| BOLT HEX HEAD 8X28 | 114A | 114G0828 | 3 | ||
| NUT,8M/M | 317 | 317B0800 | 1 | ||
| WASHER PLAIN 8MM | 410 | 410B0800 | 1 | ||
| WASHER SPRING 8MM | 461 | 461F0800 | 5 |
