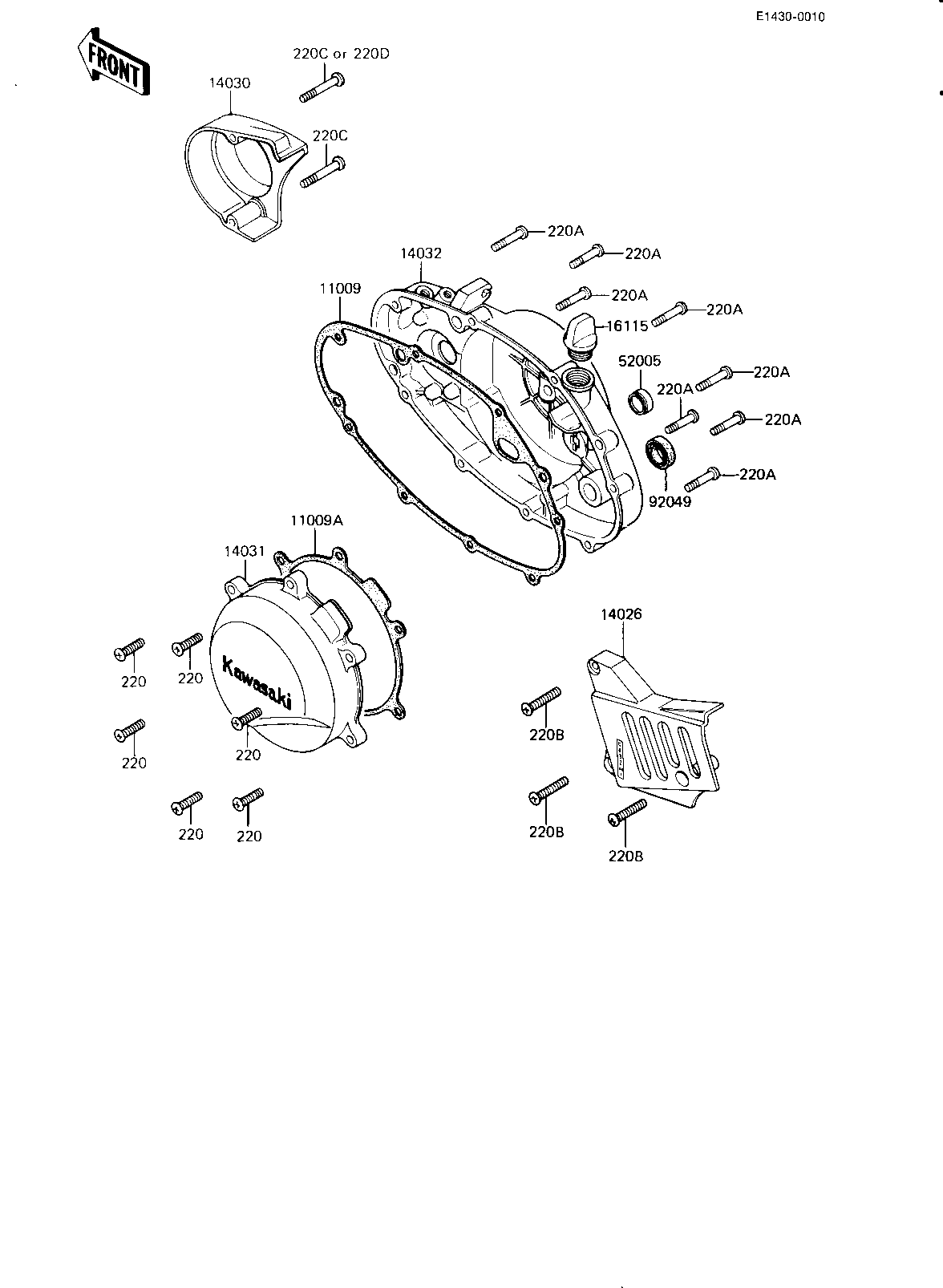

1982 KE175 - ENGINE COVERS ('82-'83 KE175-D4/D5)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CLUTCH COVER | 11009 | 11009-1062 | 1 | ||
| GASKET,MAGNETO COVER | 11009A | 11009-1063 | 1 | ||
| COVER-CHAIN,F.BLACK | 14026 | 14026-1067 | 1 | ||
| COVER,OIL PUMP | 14030 | 14030-1010 | 1 | ||
| COVER,MAGNETO | 14031 | 14031-1016 | 1 | ||
| COVER,CLUTCH | 14032 | 14032-1007 | 1 | ||
| FILLER,OIL | 16115 | 16115-018 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1005 | 1 | ||
| OIL SEAL TB16267 | 92049 | 92051-003 | 1 | ||
| SCREW PAN HEAD 6X25 | 220 | 220B0625 | 6 | ||
| SCREW PAN HEAD 6X30 | 220A | 220B0630 | 8 | ||
| SCREW PAN HEAD 6X35 | 220B | 220B0635 | 3 | ||
| SCREW PAN HEAD 6X40 | 220C | 220B0640 | 1 | ||
| SCREW PAN HEAD 6X50 | 220D | 220B0650 | 1 |
