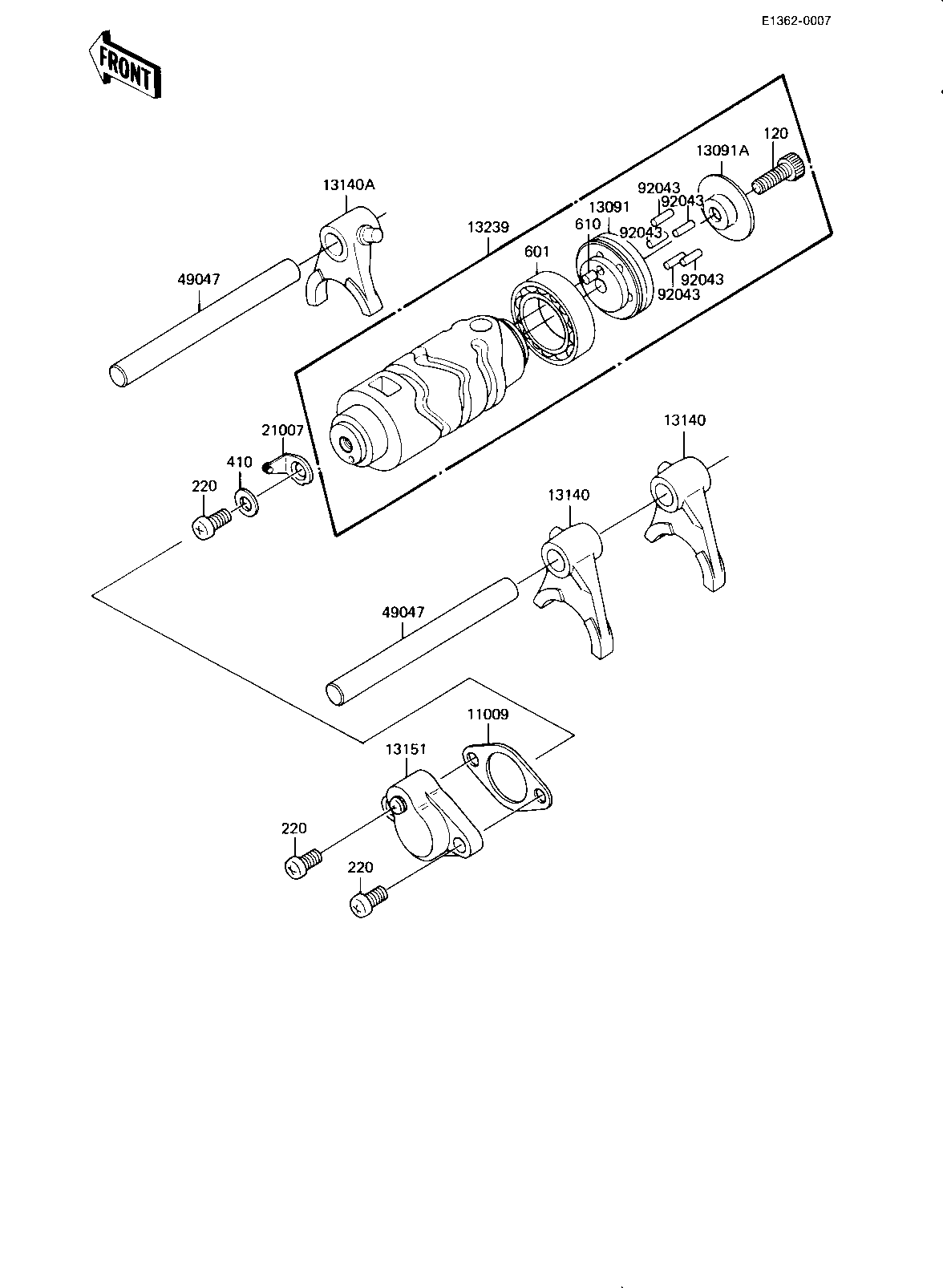

1982 KE175 - GEAR CHANGE DRUM & FORKS ('82-'83 KE175-
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET NEUTRAL SWITCH | 11009 | 13146-002 | 1 | ||
| HOLDER,DRUM PIN | 13091 | 13091-1082 | 1 | ||
| HOLDER,CHANGE DRUM | 13091A | 13142-014 | 1 | ||
| FORK,SHIFT,LOW,2ND,3R | 13140 | 13140-1013 | 2 | ||
| FORK,SHIFT 4TH&TOP | 13140A | 13140-1014 | 1 | ||
| SWITCH,NEUTRAL | 13151 | 13151-1001 | 1 | ||
| DRUM ASSY,GEAR CHANGE | 13239 | 13239-1039 | 1 | ||
| ROTOR,NEUTRAL INDICTR | 21007 | 21007-1003 | 1 | ||
| ROD-SHIFT,10X102 | 49047 | 49047-1060 | 2 | ||
| PIN,GEAR CHANGE DRUM | 92043 | 92042-042 | 5 | ||
| BOLT,SOCKET,6X30,BLAC | 120 | 120S0630 | 1 | ||
| SCREW PAN HEAD 6X16 | 220 | 220B0616 | 3 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 1 | ||
| BEARING BALL #6004 | 601 | 601B6004 | 1 | ||
| PIN-DOWEL,4X6 | 610 | 610A0406 | 1 |
