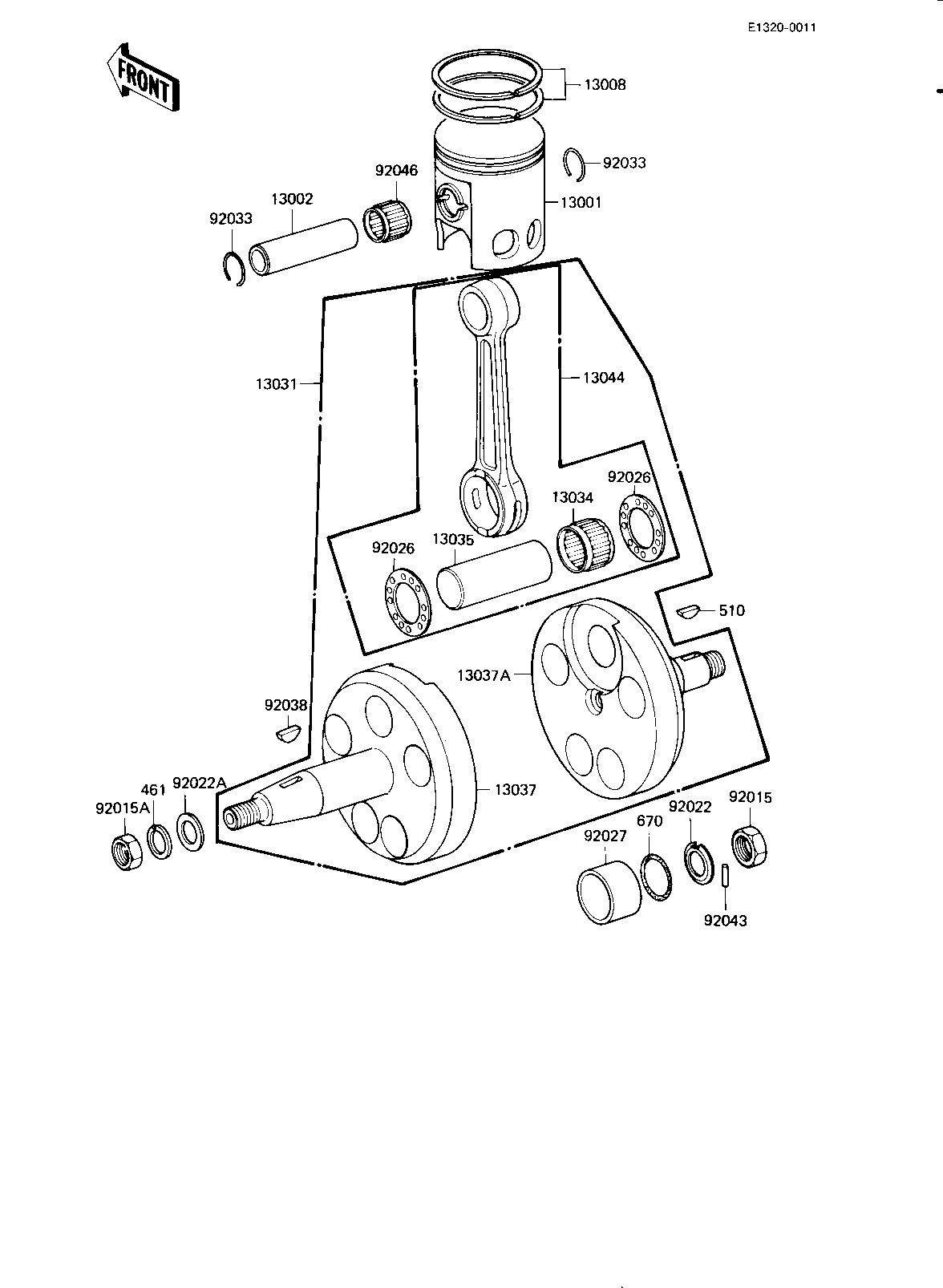

1982 KE175 - CRANKSHAFT/PISTON ('82-'83 KE175-D4/D5)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON,STD | 13001 | 13001-1041 | 1 | ||
| PIN-PISTON | 13002 | 13002-1004 | 1 | ||
| RING SET,STD | 13008 | 13008-5024 | 1 | ||
| CRANKSHAFT ASSY | 13031 | 13031-1011 | 1 | ||
| BEARING,BIG END | 13034 | 13034-042 | 1 | ||
| CRANK PIN | 13035 | 13035-022 | 1 | ||
| CRANKSHAFT,L.H. | 13037 | 13037-1012 | 1 | ||
| CRANKSHAFT,R.H. | 13037A | 13037-1013 | 1 | ||
| CONNECTING ROD ASSY, | 13044 | 13044-5012 | 1 | ||
| NUT 18MM | 92015 | 92015-019 | 1 | ||
| NUT 14MM | 92015A | 92015-043 | 1 | ||
| WASHER,LOCK,18MM | 92022 | 92022-1231 | 1 | ||
| WASHER-PLAIN,14MM | 92022A | 92022-172 | 1 | 1 | |
| WASHER SIDE | 92026 | 92026-011 | 2 | ||
| COLLAR,25X32X10.5 | 92027 | 92143-1370 | 1 | ||
| CIRCLIP PISTON PIN | 92033 | 92036-004 | 2 | ||
| WOODRUFF KEY | 92038 | 92038-001 | 1 | ||
| PIN,DOWEL,2.5X14.8 | 92043 | 92042-051 | 1 | ||
| BEARING-NEEDLE | 92046 | 92046-1038 | 1 | ||
| WASHER SPRING 14MM | 461 | 461F1400 | 1 | ||
| KEY,WOODRUFF | 510 | 510A4200 | 1 | ||
| "0" RING,20MM | 670 | 670B2020 | 1 |
| PISTON,STD | |
| REF # | 13001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 13002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING SET,STD | |
| REF # | 13008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT ASSY | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,BIG END | |
| REF # | 13034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANK PIN | |
| REF # | 13035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,L.H. | |
| REF # | 13037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,R.H. | |
| REF # | 13037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONNECTING ROD ASSY, | |
| REF # | 13044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 18MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 14MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK,18MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,14MM | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | 1 |
| WASHER SIDE | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,25X32X10.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP PISTON PIN | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 92038 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,2.5X14.8 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 14MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KEY,WOODRUFF | |
| REF # | 510 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,20MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
