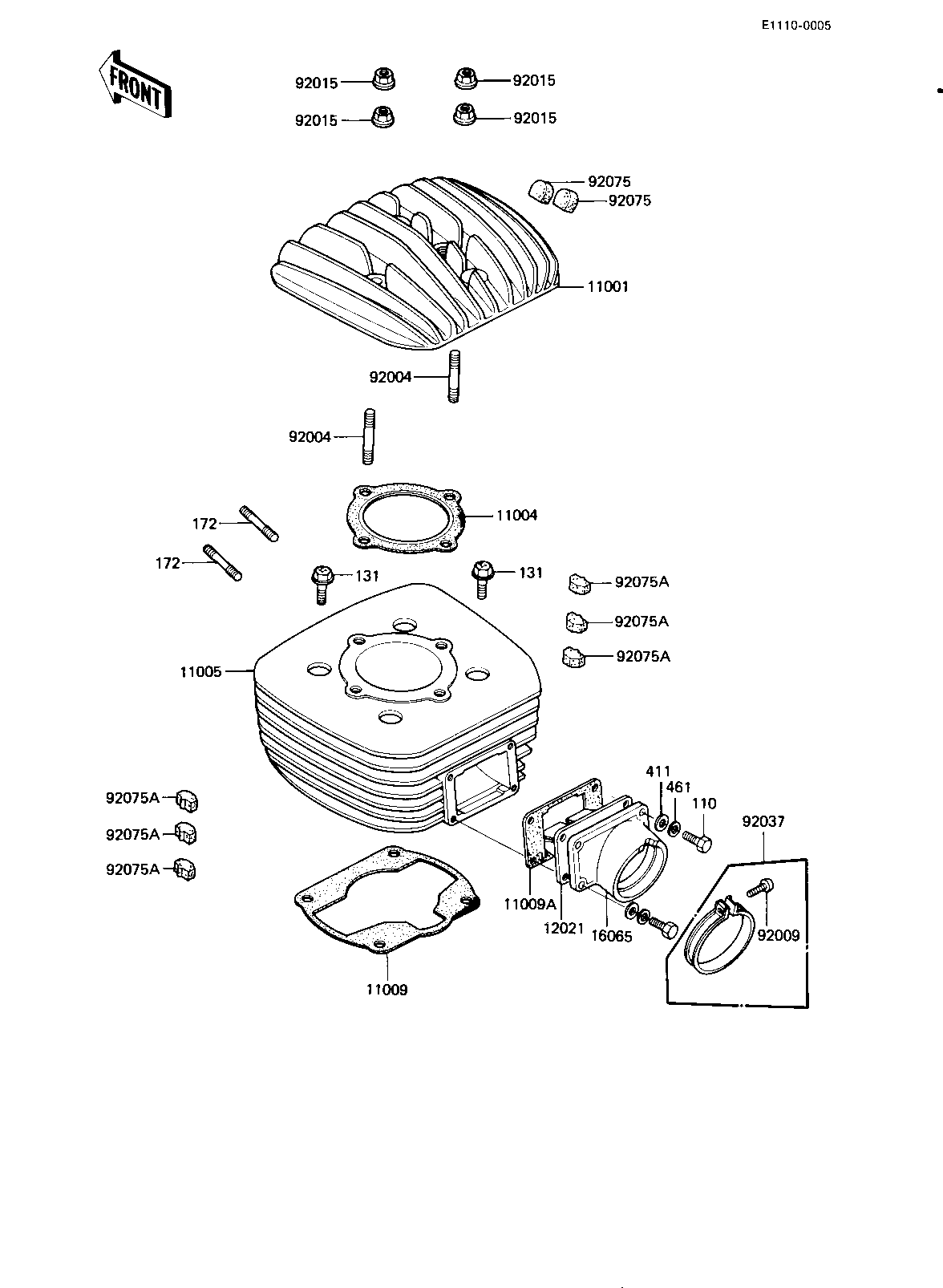

1982 KE175 - CYLINDER HEAD/CYLINDER/REED VALVE ('82-'
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HEAD,CYLINDER | 11001 | 11001-1034 | 1 | ||
| GASKET,CYLINDER HEAD | 11004 | 11004-1017 | 1 | ||
| CYLINDER | 11005 | 11005-1072 | 1 | ||
| GASKET,CYLINDER BASE | 11009 | 11009-1060 | 1 | ||
| GASKET,REED VALVE | 11009A | 11009-1109 | 1 | ||
| VALVE ASSY,REED | 12021 | 12021-1005 | 1 | ||
| HOLDER,CARBURETOR | 16065 | 16065-1025 | 1 | ||
| STUD,8X35 | 92004 | 92004-1009 | 4 | ||
| SCREW 5X25 | 92009 | 92011-037 | 1 | ||
| NUT,8M/M | 92015 | 92015-1014 | 4 | ||
| CLAMP HOLDER | 92037 | 92037-077 | 1 | ||
| DAMPER RUBBER | 92075 | 92075-1176 | 14 | ||
| DAMPER,RUBBER | 92075A | 92075-304 | 18 | ||
| BOLT-UPSET | 110 | 112G0625 | 4 | ||
| BOLT,FLANGED,8X70 | 131 | 131G0870 | 4 | ||
| STUD,8X25 | 172 | 92004-1008 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 4 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 4 |
