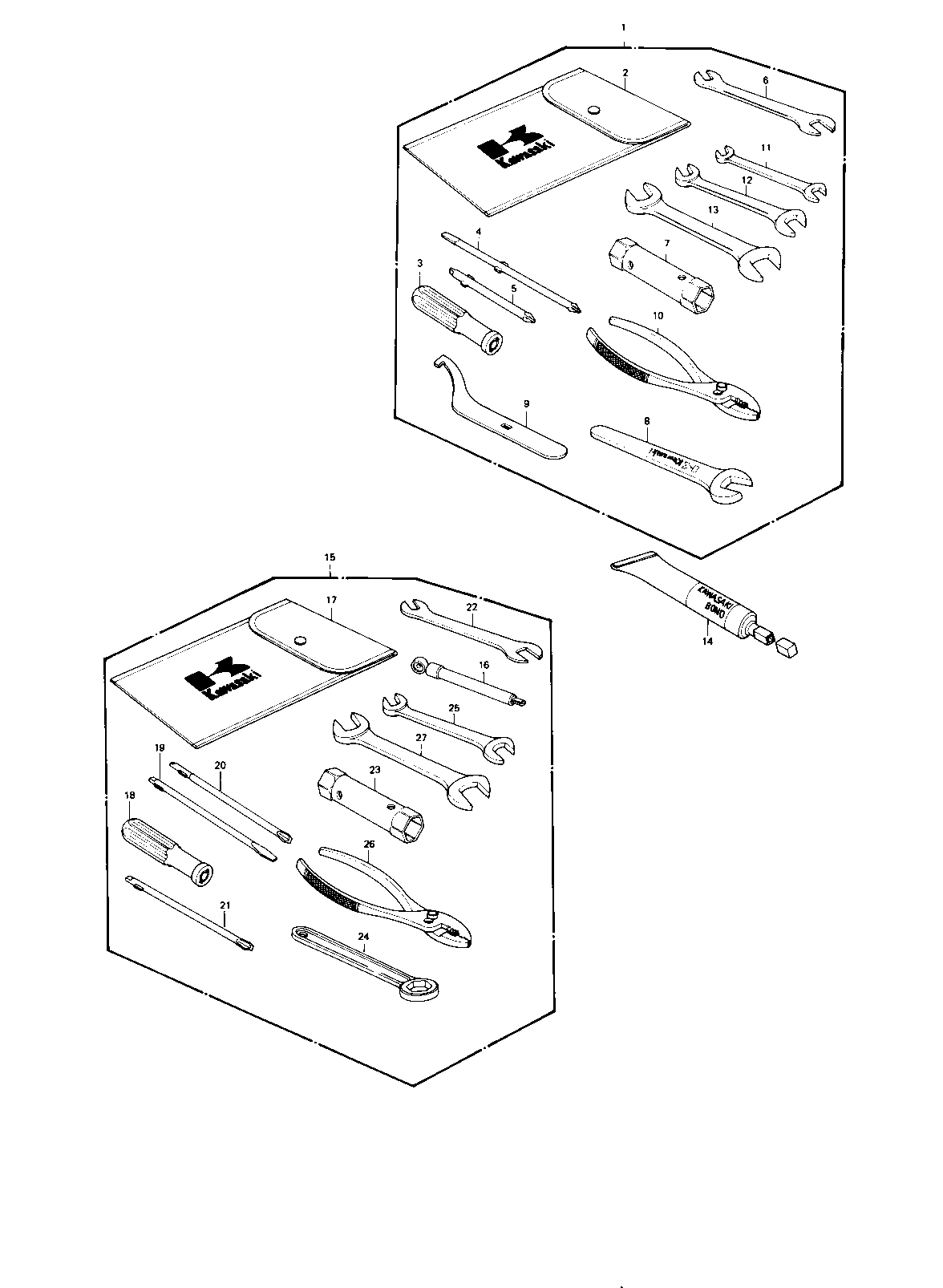

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TOOL KIT | 1 | 56007-1023 | 1 | ||
| BAG,TOOL | 2 | 56008-008 | 1 | ||
| GRIP,SCREW DRIVER | 3 | 92106-1001 | 1 | ||
| TOOL-DRIVER | 4 | 92107-1052 | 1 | ||
| SCREW DRIVER #3 PHLIP | 5 | 92107-005 | 1 | ||
| TIGHTENER,SPOKE | 6 | 92108-011 | 1 | ||
| WRENCH,BOX,17X21 | 7 | 92110-012 | 1 | ||
| WRENCH,OPEN END,19M/M | 8 | 92110-1004 | 1 | ||
| WRENCH,HOOK | 9 | 92110-1014 | 1 | ||
| PLIERS,160MM | 10 | 92112-003 | 1 | ||
| WRENCH,OPEN,8X10 | 11 | 92126-001 | 1 | ||
| WRENCH,OPEN END,12X13 | 12 | 92126-002 | 1 | ||
| TOOL-WRENCH,OPEN END, | 13 | 92110-1153 | 1 | ||
| LIQUID GASKET | 14 | 92104-002 | (1 | OPTION | |
| TOOL KIT | 15 | 56007-1072 | 1 | F/NO. 002974~ | |
| GAUGE,AIR,3.5KG/CM2 | 16 | 52005-1031 | 1 | F/NO. 002974~ | |
| BAG,TOOL | 17 | 56008-008 | 1 | F/NO. 002974~ | |
| GRIP,SCREW DRIVER | 18 | 92106-1001 | 1 | F/NO. 002974~ | |
| 92107-1052 (Canada) | 19 | 92107-007 | 1 | F/NO. 002974~ | |
| TOOL-DRIVER | 20 | 92107-1052 | 1 | F/NO. 002974~ | |
| 92107-1002 (Canada) | 21 | 92107-008 | 1 | F/NO. 002974~ | |
| TIGHTENER,SPOKE | 22 | 92108-011 | 1 | F/NO. 002974~ | |
| WRENCH,BOX,17X21 | 23 | 92110-012 | 1 | F/NO. 002974~ | |
| TOOL-WRENCH,BOX END,2 | 24 | 92110-1148 | 1 | F/NO. 002974~ | |
| TOOL-WRENCH,OPEN END | 25 | 92110-1038 | 1 | F/NO. 002974~ | |
| PLIERS,160MM | 26 | 92112-003 | 1 | F/NO. 002974~ | |
| TOOL-WRENCH,OPEN END, | 27 | 92110-1153 | 2 | F/NO. 002974~ |
| TOOL KIT | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAG,TOOL | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,SCREW DRIVER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOOL-DRIVER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW DRIVER #3 PHLIP | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIGHTENER,SPOKE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WRENCH,BOX,17X21 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WRENCH,OPEN END,19M/M | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WRENCH,HOOK | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLIERS,160MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WRENCH,OPEN,8X10 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WRENCH,OPEN END,12X13 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOOL-WRENCH,OPEN END, | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LIQUID GASKET | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | OPTION |
| TOOL KIT | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 002974~ |
| GAUGE,AIR,3.5KG/CM2 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 002974~ |
| BAG,TOOL | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 002974~ |
| GRIP,SCREW DRIVER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 002974~ |
| 92107-1052 (Canada) | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 002974~ |
| TOOL-DRIVER | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 002974~ |
| 92107-1002 (Canada) | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 002974~ |
| TIGHTENER,SPOKE | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 002974~ |
| WRENCH,BOX,17X21 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 002974~ |
| TOOL-WRENCH,BOX END,2 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 002974~ |
| TOOL-WRENCH,OPEN END | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 002974~ |
| PLIERS,160MM | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 002974~ |
| TOOL-WRENCH,OPEN END, | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | F/NO. 002974~ |
