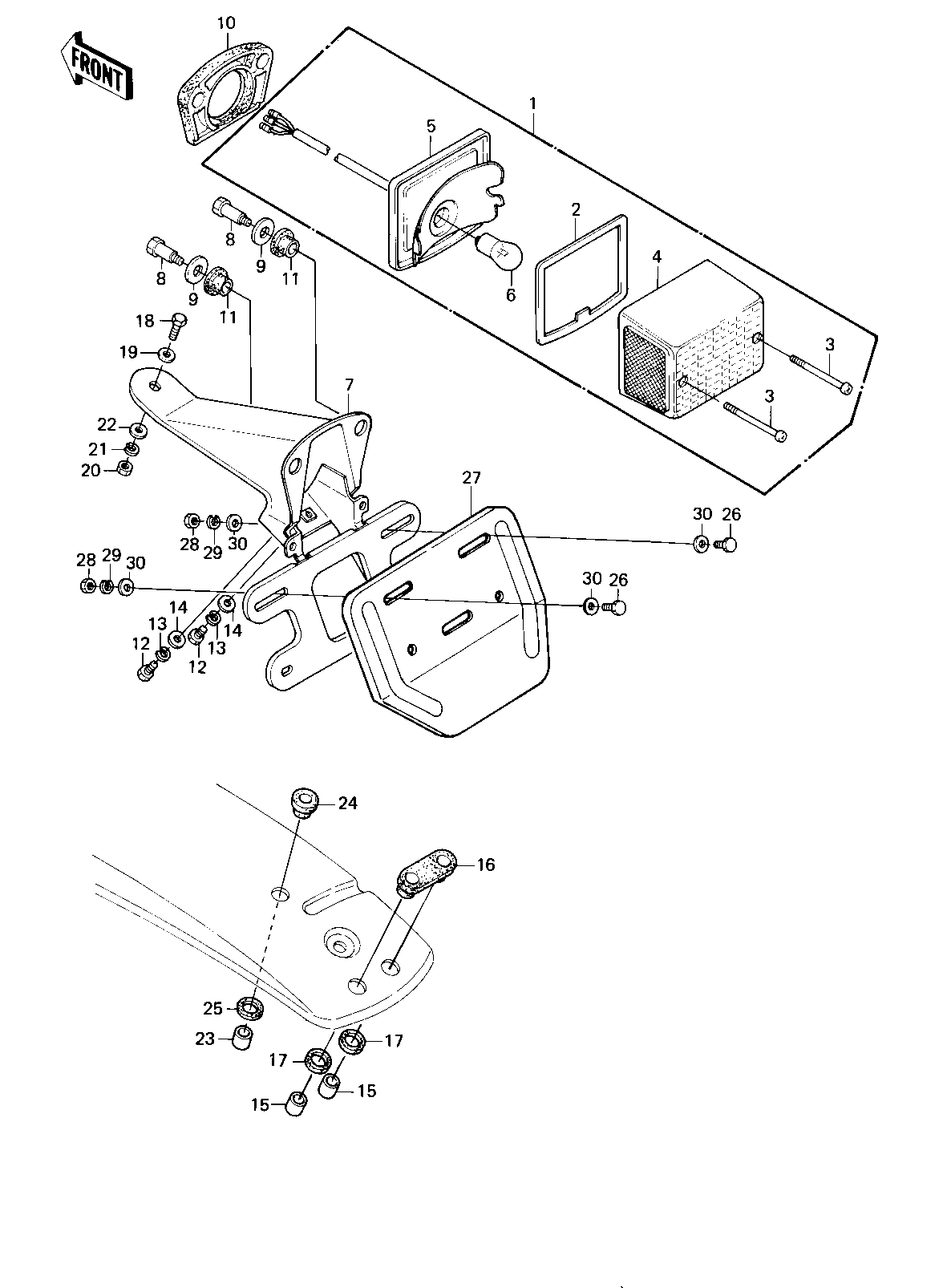

1980 KE175 - TAILLIGHT ('80-'81 KE175-D2/D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP UNIT TAIL WHN EXH USE 1 23025-1006 1
LAMP-TAIL 1 23025-1032 1
GASKET,TAIL LAMP LENS 2 11009-1078 1
SCREW-PAN-CROS,4X40 3 220R0440 2
LENS,TAIL LAMP 4 23026-1003 1
CASE,TAIL LAMP 5 23027-1020 1
CASE,TAIL LAMP 5 23027-1020 1
BULB,60-32/3CP 6 92069-074 1
BRACKET,LICENSE PLATE 7 23036-1010 1
BOLT,HEX HEAD 8 92001-1118 2
WASHER,8.5X20X1.6 9 92022-1561 2
DAMPER RUBBER,TL LAMP 10 92075-1094 1
DAMPER RUBBER 11 92075-1095 2
BOLT-UPSET 12 112G0630 2
WASHER SPRING 6MM 13 461F0600 2
WASHER 6.5X20X1.6T 14 92022-125 2
COLLAR 6.8X10X14.5 15 92027-156 2
DAMPER,TAIL LAMP 16 92075-1005 1
DAMPER RUBBER,SIGNAL 17 92075-310 2
BOLT-UPSET 18 112G0630 1
WASHER PLAIN 6MM 19 411B0600 1
NUT 6MM 20 311B0600 1
WASHER SPRING 6MM 21 461F0600 1
WASHER 6.5X20X1.6T 22 92022-125 1
COLLAR 23 92027-256 1
DAMPER,TAIL LAMP 24 92075-1004 1
DAMPER RUBBER,SIGNAL 25 92075-310 1
BOLT-UPSET,6X20 26 112G0620 2
BRACKET,LICENSE PLATE 27 11034-1117 1
NUT 6MM 28 311B0600 2
WASHER SPRING 6MM 29 461F0600 2
WASHER 6.5X20X1.6T 30 92022-125 4
