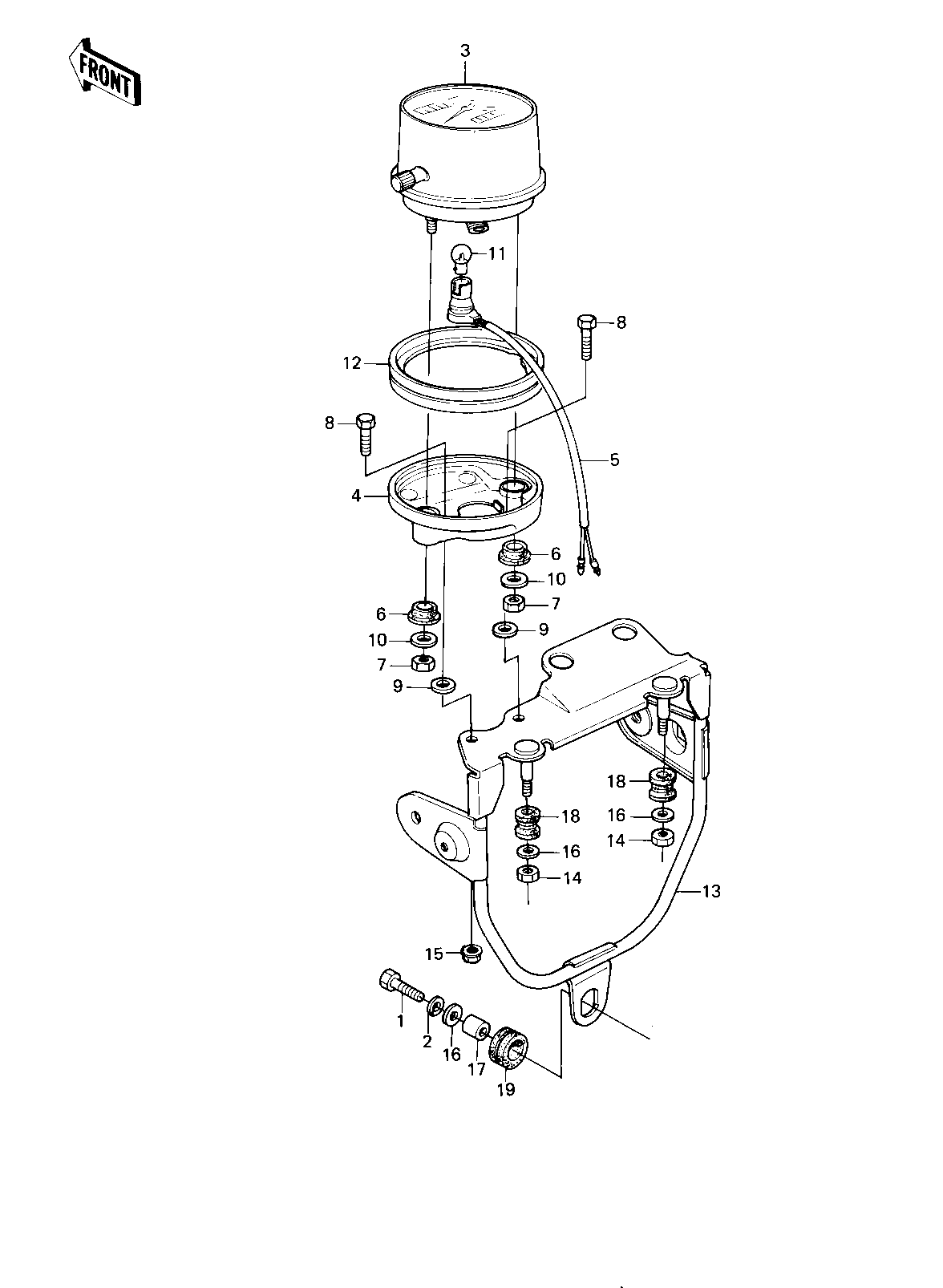

1980 KE175 - METER ('80-'81 KE175-D2/D3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET | 1 | 112G0625 | 1 | ||
| WASHER SPRING 6MM | 2 | 461F0600 | 1 | ||
| SPEEDOMETER,KM/H&MPH | 3 | 25005-1049 | 1 | USA | |
| SPEEDOMETER,KM/H | 3 | 25005-1050 | 1 | CANADA | |
| COVER,METER | 4 | 14025-1075 | 1 | ||
| SOCKET ASSY,SPEEDOMET | 5 | 25010-021 | 1 | ||
| DAMPER RUBBER,MET FIT | 6 | 25019-023 | 2 | ||
| NUT,5MM | 7 | 311B0500 | 2 | ||
| BOLT,HEX HEAD,6X14 | 8 | 92003-204 | 2 | ||
| WASHER,6M/M,METER | 9 | 92022-1039 | 2 | ||
| WASHER,PLAIN,6MM | 10 | 92022-263 | 2 | ||
| BULB-6V 3W | 11 | 92069-053 | 1 | ||
| DAMPER,METER | 12 | 92075-1102 | 1 | ||
| BRACKET,METER | 13 | 25008-1009 | 1 | ||
| NUT 6MM | 14 | 311B0600 | 2 | ||
| NUT-6MM | 15 | 92015-1078 | 2 | ||
| WASHER 6.5X20X1.6T | 16 | 92022-125 | 3 | ||
| COLLAR | 17 | 92027-241 | 1 | ||
| DAMPER RUBB SPEEDMETR | 18 | 92075-024 | 2 | ||
| DAMPER RUBBER,RR FENR | 19 | 92075-209 | 1 |
