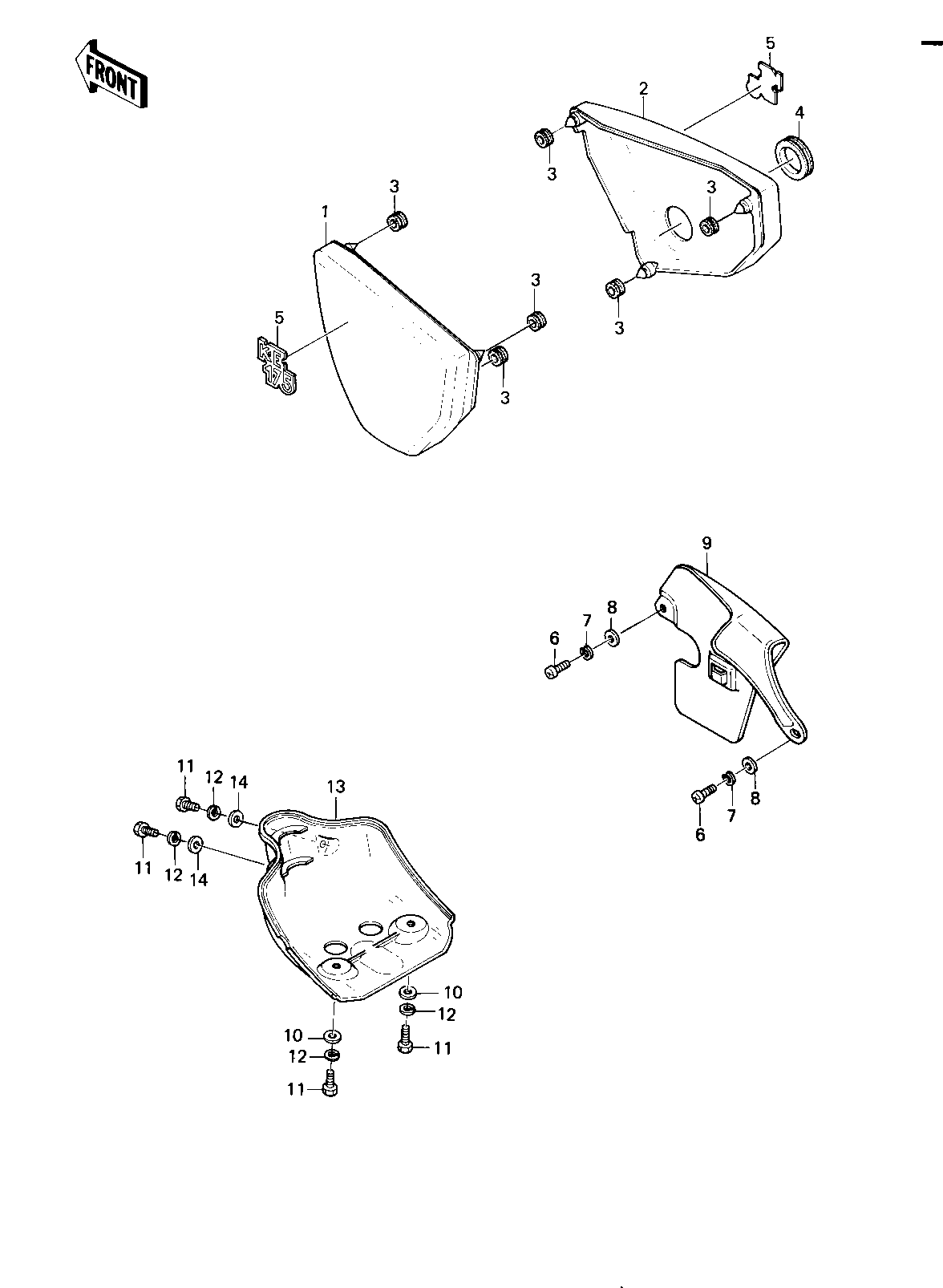

1980 KE175 - SIDE COVERS/CHAIN COVER ('80-'81 KE175-D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SIDE,L.H,F.RED | 1 | 36001-1026-6L | 1 | ||
| COVER,SIDE,LH,B.BLUE | 1 | 36001-1026-6K | 1 | KE175-D2 USE FOR CANADIAN MARK | |
| COVER-SIDE,LH,S.B.YLW | 1 | 36001-1026-6G | 1 | KE175-D3 USE FOR CANADIAN MARK | |
| COVER SIDE R.H FIRECRACKER RED | 2 | 36001-1031-6L | 1 | ||
| COVER,SIDE,RH,B.BLUE | 2 | 36001-1031-6K | 1 | KE175-D2 USE FOR CANADIAN MARK | |
| COVER-SIDE,RH,S.B.YLW | 2 | 36001-1031-6G | 1 | KE175-D3 USE FOR CANADIAN MARK | |
| GROMMET | 3 | 92071-056 | 6 | ||
| GROMMET,L.H SIDE COV | 4 | 92071-080 | 1 | ||
| MARK,SIDE COVER | 5 | 56018-1035 | 2 | ||
| SCREW PAN HEAD 6X16 | 6 | 220B0616 | 2 | ||
| WASHER SPRING 6MM | 7 | 461F0600 | 2 | ||
| WASHER PLAIN 6MM | 8 | 411B0600 | 2 | ||
| CASE-CHAIN | 9 | 36014-1007 | 1 | ||
| WASHER-PLAIN,7MM | 10 | 92022-240 | 4 | ||
| BOLT-UPSET,6X16 | 11 | 112G0616 | 4 | ||
| WASHER SPRING 6MM | 12 | 461F0600 | 4 | ||
| GUARD,ENGINE | 13 | 55020-1025 | 1 |
