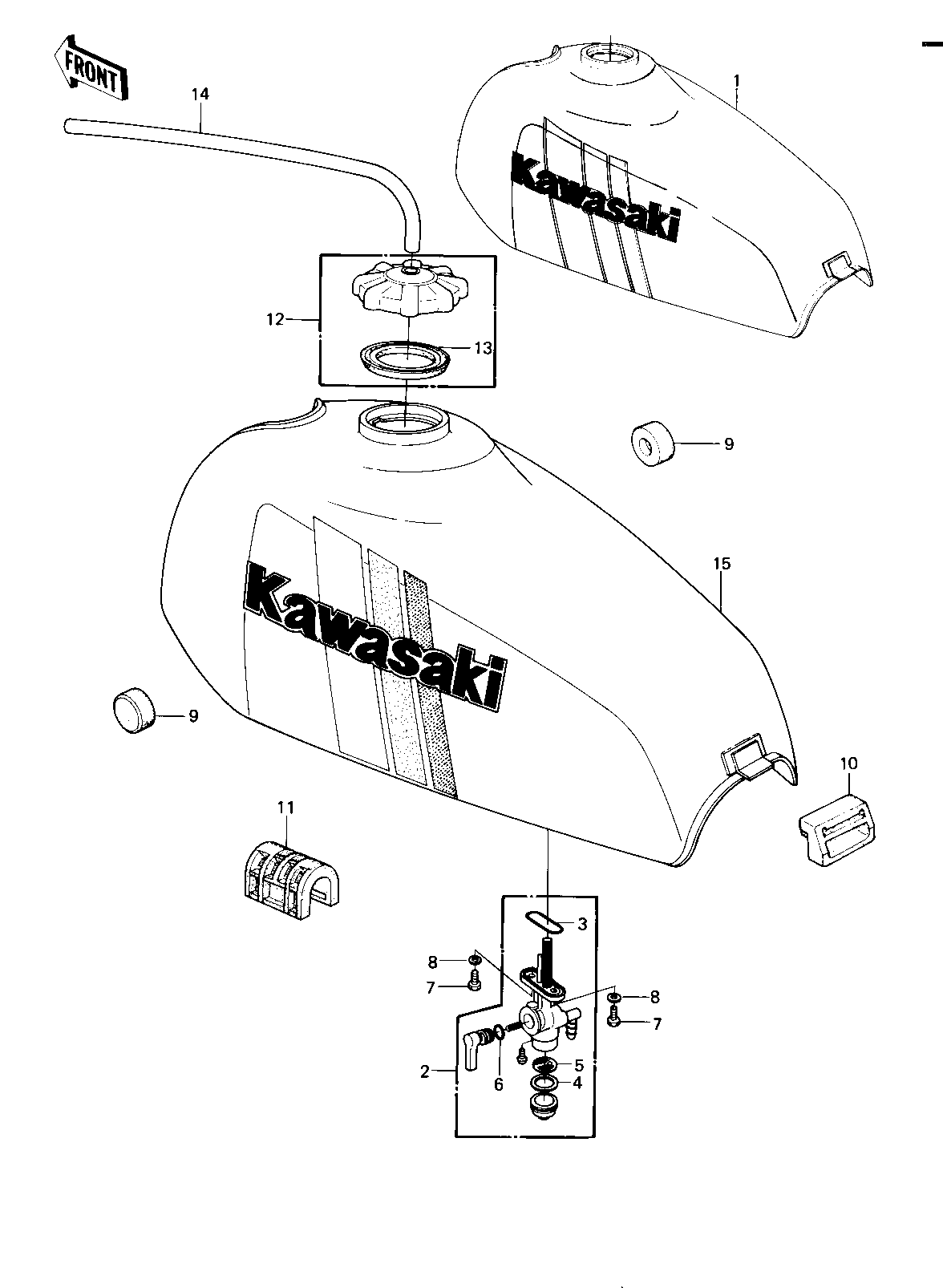

1980 KE175 - FUEL TANK ('80-'81 KE175-D2/D3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-FUEL,F.RED | 1 | 51001-5052-B1 | 1 | USE FOR CANADIAN MARKET KE175- | |
| TANK-FUEL,B.BLUE | 1 | 51001-1013-C9 | 1 | USE FOR CANADIAN MARKET KE175- | |
| TAP ASSY,FUEL | 2 | 51023-1020 | 1 | ||
| "O" RING | 3 | 51039-003 | 1 | ||
| GASKET,FUEL TAP CUP | 4 | 11009-1013 | 1 | ||
| STRINER,FUEL TAP | 5 | 14043-1002 | 1 | ||
| "0" RING, 10MM | 6 | 670B2010 | 1 | ||
| BOLT,6X20,FUEL TAP | 7 | 92001-1091 | 2 | ||
| WASHER-PLAIN | 8 | 92022-183 | 2 | ||
| DAMPER RUBBER-FL TANK | 9 | 92075-101 | 2 | ||
| DAMPER,FUEL TANK,REAR | 10 | 92075-1074 | 1 | ||
| DAMPER RUBBER | 11 | 92075-284 | 1 | ||
| CAP ASSY,TANK,FUEL | 12 | 51048-1004 | 1 | ||
| GASKET,FUEL TANK CAP | 13 | 51059-006 | 1 | ||
| TUBE,5X1430 | 14 | 702A051430 | 1 | ||
| TANK-FUEL,F.RED | 15 | 51001-5087-B1 | 1 | USE FOR CANADIAN MARKET KE175- | |
| TANK-COMP-FUEL,S.B.YL (Canada) | 15 | 51001-1013-E5 | 1 | USE FOR CANADIAN MARKET KE175- |
| TANK-FUEL,F.RED | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR CANADIAN MARKET KE175- |
