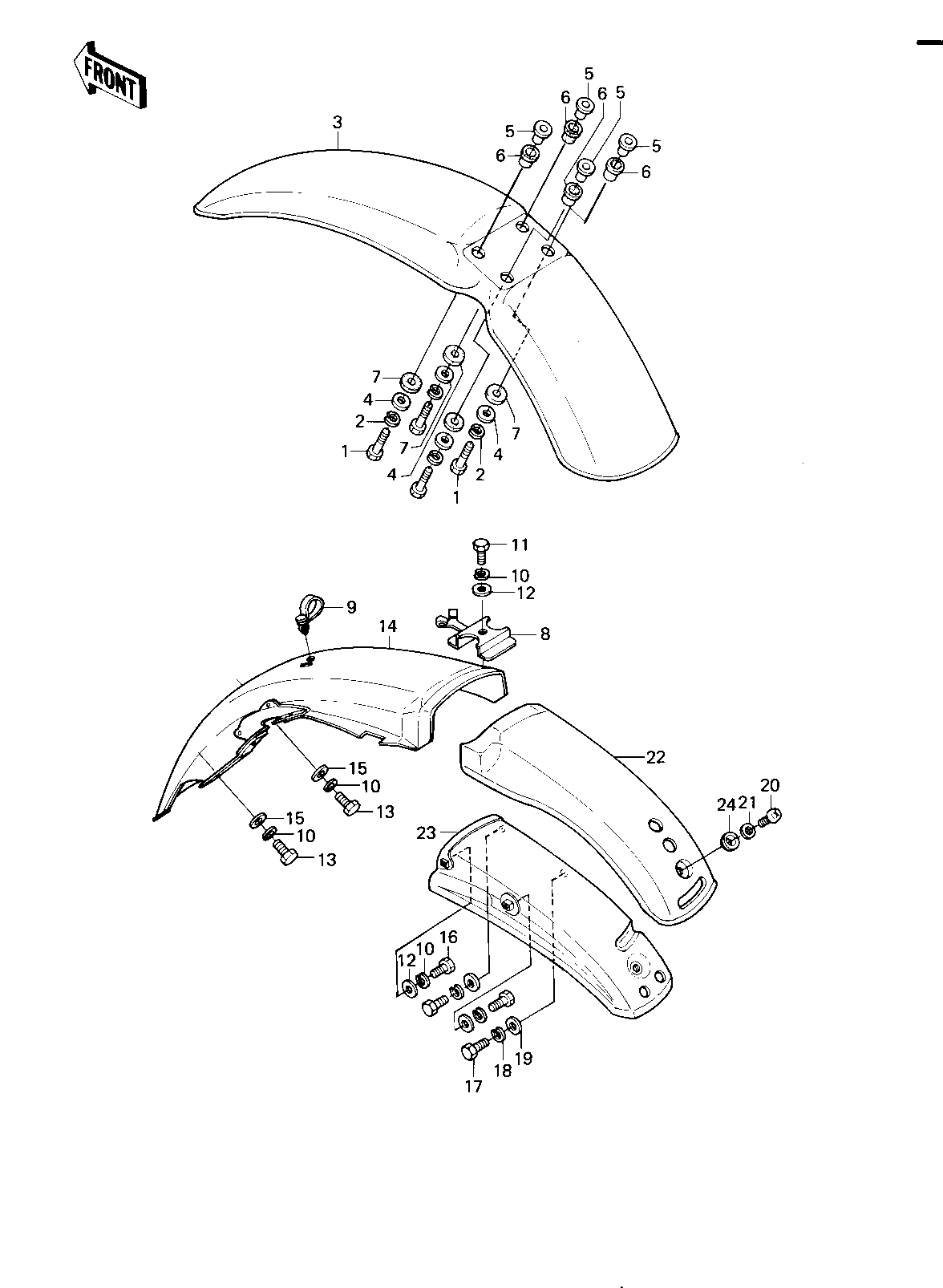

1980 KE175 - FENDERS ('80-'81 KE175-D2/D3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET | 1 | 112G0625 | 4 | ||
| WASHER SPRING 6MM | 2 | 461F0600 | 4 | ||
| FENDER-FR,F.RED | 3 | 35004-1024-6L | 1 | ||
| FENDER-FR,B.BLUE | 3 | 35004-1024-6K | 1 | KE175-D2 USE FOR CANADIAN MARK | |
| FENDER-FR,S.B.YELLOW | 3 | 35004-1024-6G | 1 | KE175-D3 USE FOR CANADIAN MARK | |
| WASHER 6.5X20X1.6T | 4 | 92022-125 | 4 | ||
| COLLAR | 5 | 92027-194 | 4 | ||
| DAMPER RUBBER | 6 | 92075-103 | 4 | ||
| DAMPER RUBBER,RR FEND | 7 | 92075-121 | 4 | ||
| HOLDER,WIRING HARNESS | 8 | 13091-1022 | 1 | ||
| CLAMP | 9 | 92037-1163 | 1 | ||
| WASHER SPRING 6MM | 10 | 461F0600 | 5 | ||
| BOLT-UPSET 6X14 | 11 | 112B0614 | 1 | ||
| WASHER PLAIN 6MM | 12 | 411B0600 | 3 | ||
| BOLT-UPSET,6X16 | 13 | 112G0616 | 2 | ||
| FENDER-RR | 14 | 35022-1017 | 1 | ||
| WASHER 6.5X20X1.6T | 15 | 92022-125 | 2 | ||
| BOLT-UPSET,6X12 | 16 | 112G0612 | 2 | ||
| BOLT-SMALL-UPSET,8X18 | 17 | 115G0818 | 2 | ||
| WASHER SPRING 8MM | 18 | 461F0800 | 2 | ||
| WASHER PLAIN 8MM | 19 | 410B0800 | 2 | ||
| SCREW PAN HEAD 6X12 | 20 | 220B0612 | 1 | ||
| WASHER PLAIN 6MM | 21 | 410B0600 | 1 | ||
| FENDER-RR,F.RED | 22 | 35022-1018-6L | 1 | ||
| FENDER-RR,B.BLUE | 22 | 35022-1018-6K | 1 | KE175-D2 USE FOR CANADIAN MARK | |
| FENDER-RR,YELLOW | 22 | 35022-1018-6G | 1 | KE175-D3 USE FOR CANADIAN MARK | |
| REINFORCE,REAR FENDER | 23 | 35034-1029 | 1 | ||
| COLLAR,REAR FENDER | 24 | 92027-1018 | 1 |
