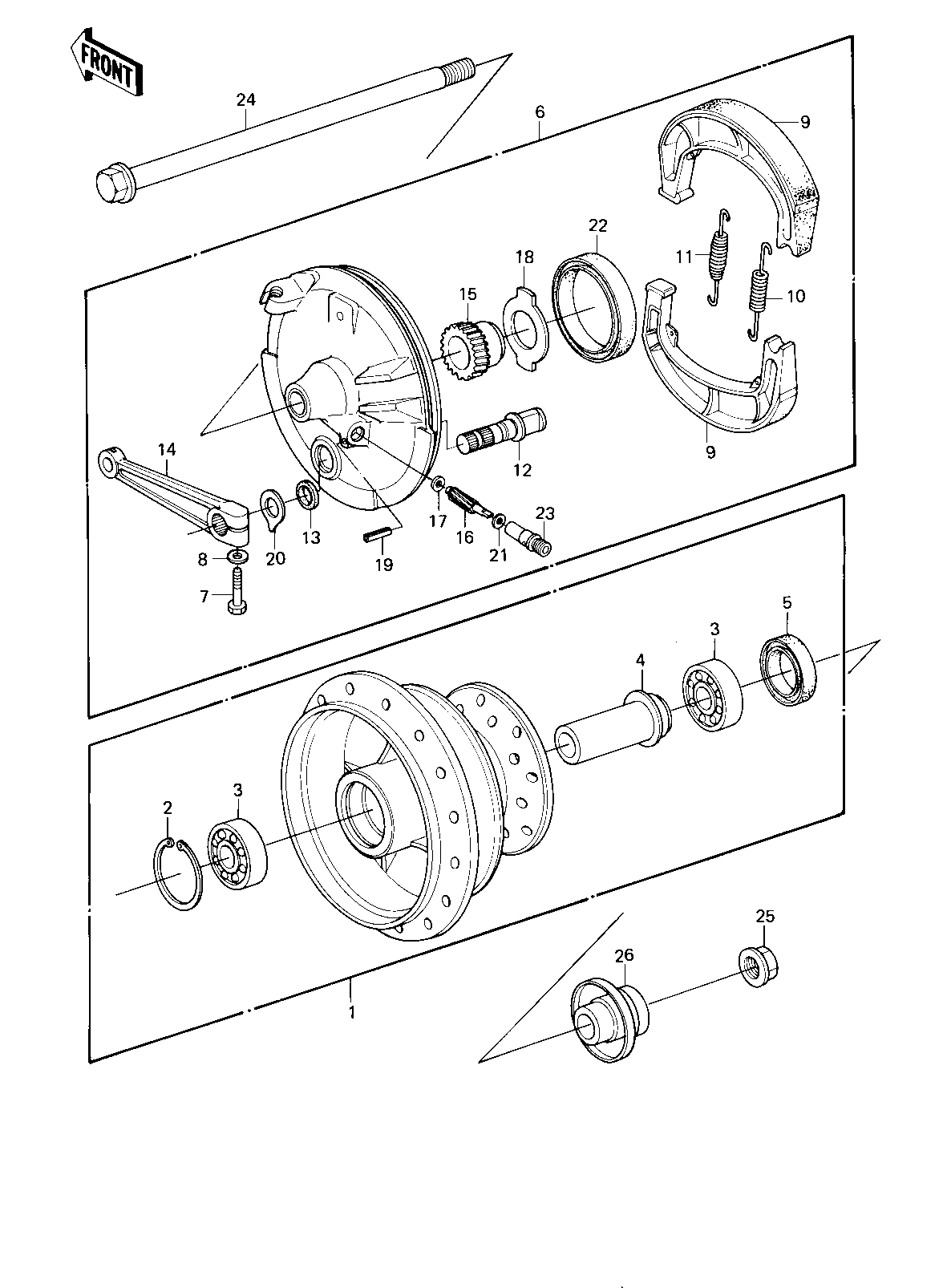

1980 KE175 - FRONT HUB/BRAKE ('80-'81 KE175-D2/D3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,FR BRK | 1 | 41034-1014 | 1 | ||
| CIRCLIP.37MM | 2 | 481J3700 | 1 | ||
| BEARING BALL #6301 | 3 | 601B6301 | 2 | ||
| COLLAR,FR BRAKE DRUM | 4 | 92027-1097 | 1 | ||
| OIL SEAL,FR BK DRUM | 5 | 92050-059 | 1 | ||
| PANEL-ASY,FR BRK | 6 | 41035-1045 | 1 | ||
| PANEL-ASY,FR BRK | 6 | 41035-1045 | 1 | F/NO. 002974~ | |
| BOLT-UPSET | 7 | 112G0625 | 1 | ||
| WASHER PLAIN 6MM | 8 | 410B0600 | 1 | ||
| SHOE,BRAKE | 9 | 41048-015 | 2 | ||
| SPRING,BRAKE SHOE | 10 | 92081-1766 | 1 | ||
| SPRING,BRAKE SHOE | 11 | 92081-1550 | 1 | ||
| CAM,BRAKE,FRONT | 12 | 41050-1010 | 1 | ||
| DUST SHIELD BRAKE CAM | 13 | 41051-001 | 1 | ||
| LEVER,BRAKE FRONT | 14 | 41053-1012 | 1 | ||
| GEAR,SPEEDOMETER,24T | 15 | 41060-1017 | 1 | ||
| PINION,SPEEDOMETER,8T | 16 | 41060-1018 | 1 | ||
| WASHER THRST SPD PINI | 17 | 41063-001 | 1 | ||
| RECIEVER-SPEED GEAR | 18 | 41064-006 | 1 | ||
| PIN,SPRING | 19 | 41082-001 | 1 | ||
| INDICATOR,BRAKE SHOE | 20 | 41085-1003 | 1 | ||
| WASHER THRST SPD PINI | 21 | 41063-001 | 1 | ||
| OIL SEAL F BRK PANEL | 22 | 92050-010 | 1 | ||
| BUSHING,METER GEAR | 23 | 92087-1002 | 1 | ||
| AXLE,FR,L=215 | 24 | 41068-1095 | 1 | ||
| NUT-12MM | 25 | 92015-1156 | 1 | ||
| COLLAR,FRONT AXLE | 26 | 92027-1098 | 1 |
