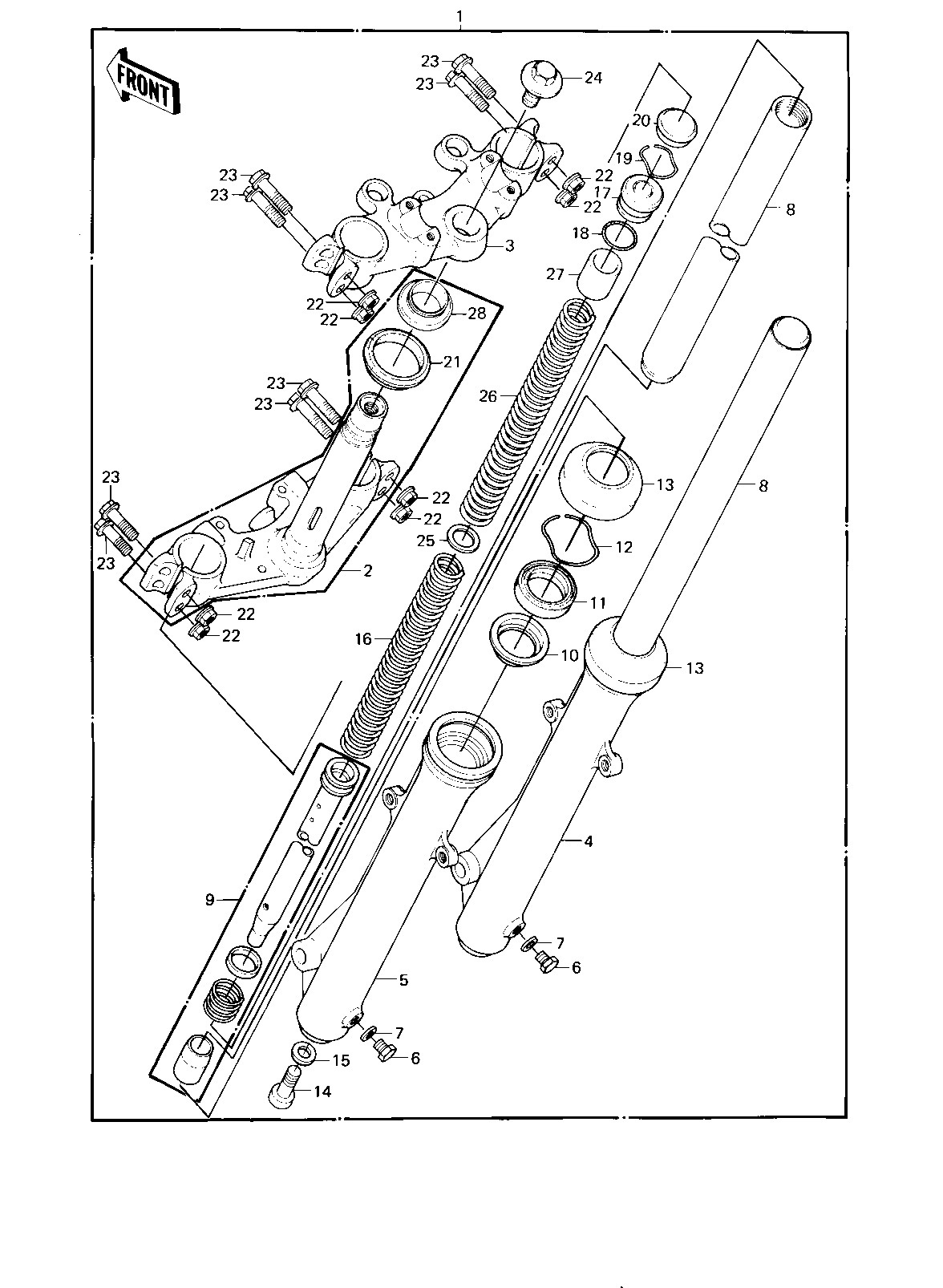

1980 KE175 - FRONT FORK ('80-'81 KE175-D2/D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1417 1
STEM,STEERING 2 44037-1012 1
HEAD,STEERING STEM 3 44039-1020 1
TUBE,RH,FORK OUTER 4 44006-1017 1
PIPE-LEFT FORK OUTER 5 44005-1113 1
BOLT HEX HEAD 6X8 6 110B0608 2
GASKET,DRAIN PLUG 7 44045-047 2
TUBE,FORK,INNER 8 44013-1014 2
CYLINDER-FORK 9 44022-1015 2
SPACER,OUTER TUBE 10 92026-1028 2
SEAL-OIL,FORK 11 92049-1268 2
CIRCLIP,OUTER TUBE 12 92033-1022 2
DUST SHIELD,FORK 13 92093-1017 2
BOLT,FORK CYLINDER 14 44041-078 2
GASKET,FORK CYL BOLT 15 44045-051 2
SPRING,FORK,LOWER 16 44026-1019 2
SEAT,FORK SPRING 17 44029-1012 2
"O" RING,SPRING SEAT 18 92055-1060 2
CIRCLIP,FORK TOP 19 92033-1023 2
CAP,RUBBER,FORK TOP 20 11012-1061 2
SEAL,STEERING STEM 21 44010-027 1
NUT,8MM 22 92015-1055 8
BOLT,HEX HEAD,8X45 23 92001-1136 8
BOLT,STEERING STEM HE 24 92001-1741 1
WASHER,FORK SPRING 25 44028-1005 2
SPRING,FORK,UPPER 26 44026-1034 2
COLLAR,FORK SPRING 27 92026-1054 2
CONE STERNG BERG LOW 28 92047-010 1
