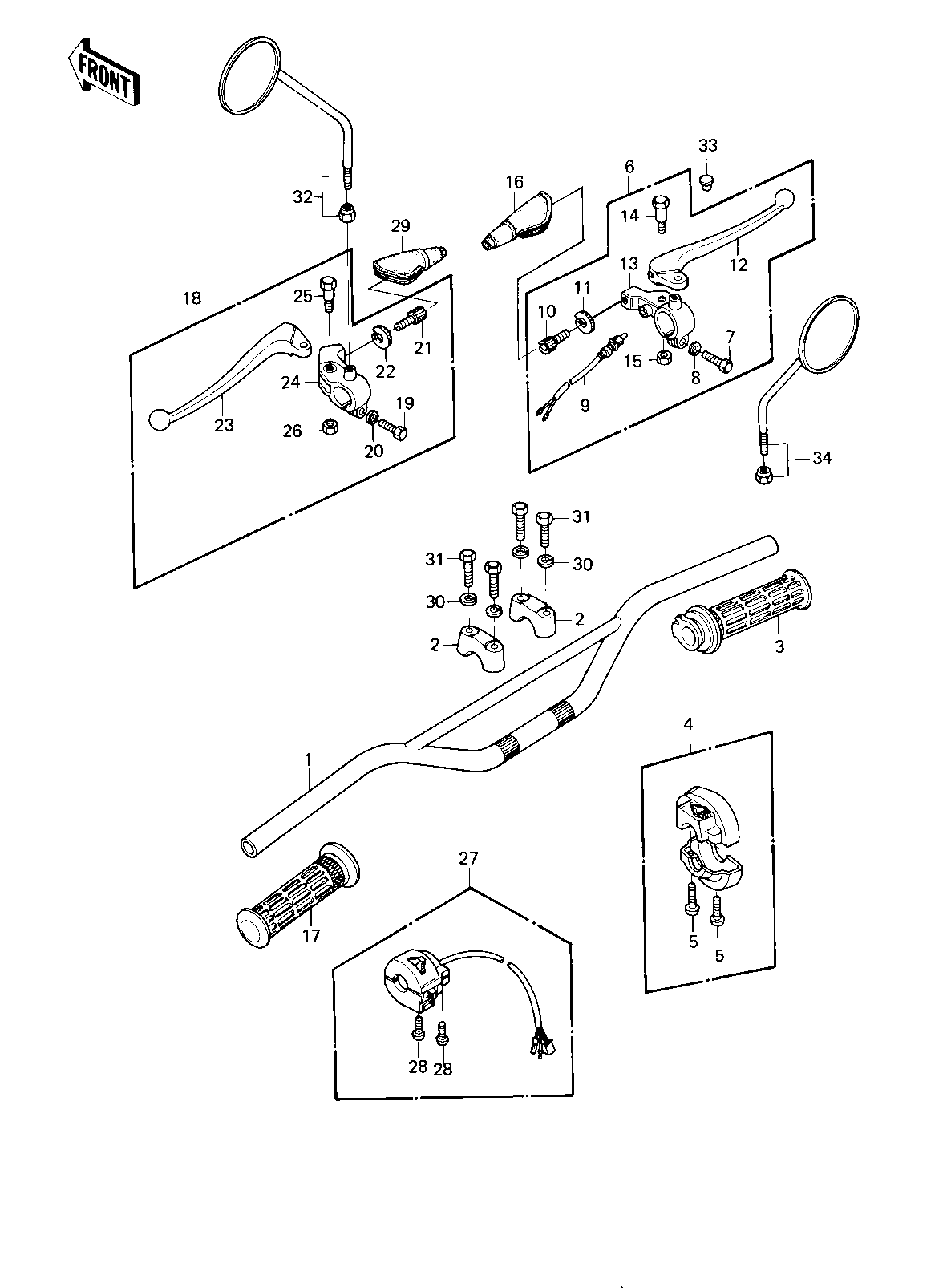

1980 KE175 - HANDLEBAR ('80-'81 KE175-D2/D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46003-1022 1
HOLDER,HANDLEBAR 2 46012-014 2
GRIP ASSY,THROTTLE 3 46019-1005 1
HOUSING ASSY,CONT,R.H 4 46091-1041 1
SCREW PAN HEAD 5X18 5 220B0518 2
LEVER ASSY,FRONT BRK 6 46021-029 1
LEVER ASSY,FRNT BRAKE 6 46021-031 1 E/NO. 001913~
BOLT HEX HEAD 6X25 7 110N0625 1
WASHER,PLAIN,6MM 8 410D0600 1
SWITCH-FR. BRAKE LAMP 9 27021-004 1
SCREW,CABLE ADJUST 10 46055-010 1
SCREW CABLE ADJUST 10 46055-003 1 E/NO. 001913~
NUT-LOCK 11 46056-005 1
LEVER FRONT BRAKE 12 46058-004 1
HOLDER-FR BRK LEV,BLK 13 46060-009-21 1
BOLT,HEX HEAD,5X22 14 92007-046 1
NUT-LOCK,5MM 15 92019-014 1
BOOTS,LEVER HOLDER 16 49006-1017 1
GRIP,L.H. 17 46075-1004 1
LEVER ASSY,CLUTCH 18 46076-044 1
BOLT HEX HEAD 6X25 19 110N0625 1
WASHER,PLAIN,6MM 20 410D0600 1
SCREW CABLE ADJUST 21 46055-003 1
NUT-LOCK 22 46056-005 1
LEVER-CLUTCH 23 46092-015 1
HOLDER-CLUTCH LEV,BLK 24 46094-011-21 1
BOLT,HEX HEAD,5X22 25 92007-046 1
NUT-LOCK,5MM 26 92019-014 1
HOUSING ASSY,L.H 27 46091-1042 1
SCREW PAN HEAD 5X22 28 220B0522 2
BOOTS,LEVER HOLDER 29 49006-1017 1
WASHER SPRING 8MM 30 461F0800 4
BOLT 8X38 31 92001-1405 4
REAR VIEW MIRROR,L.H 32 56003-009 1
CAP-RR VIEW MIRROR 33 92102-009 1
REAR VIEW MIRROR,R.H 34 56002-020 (1 OPTION
