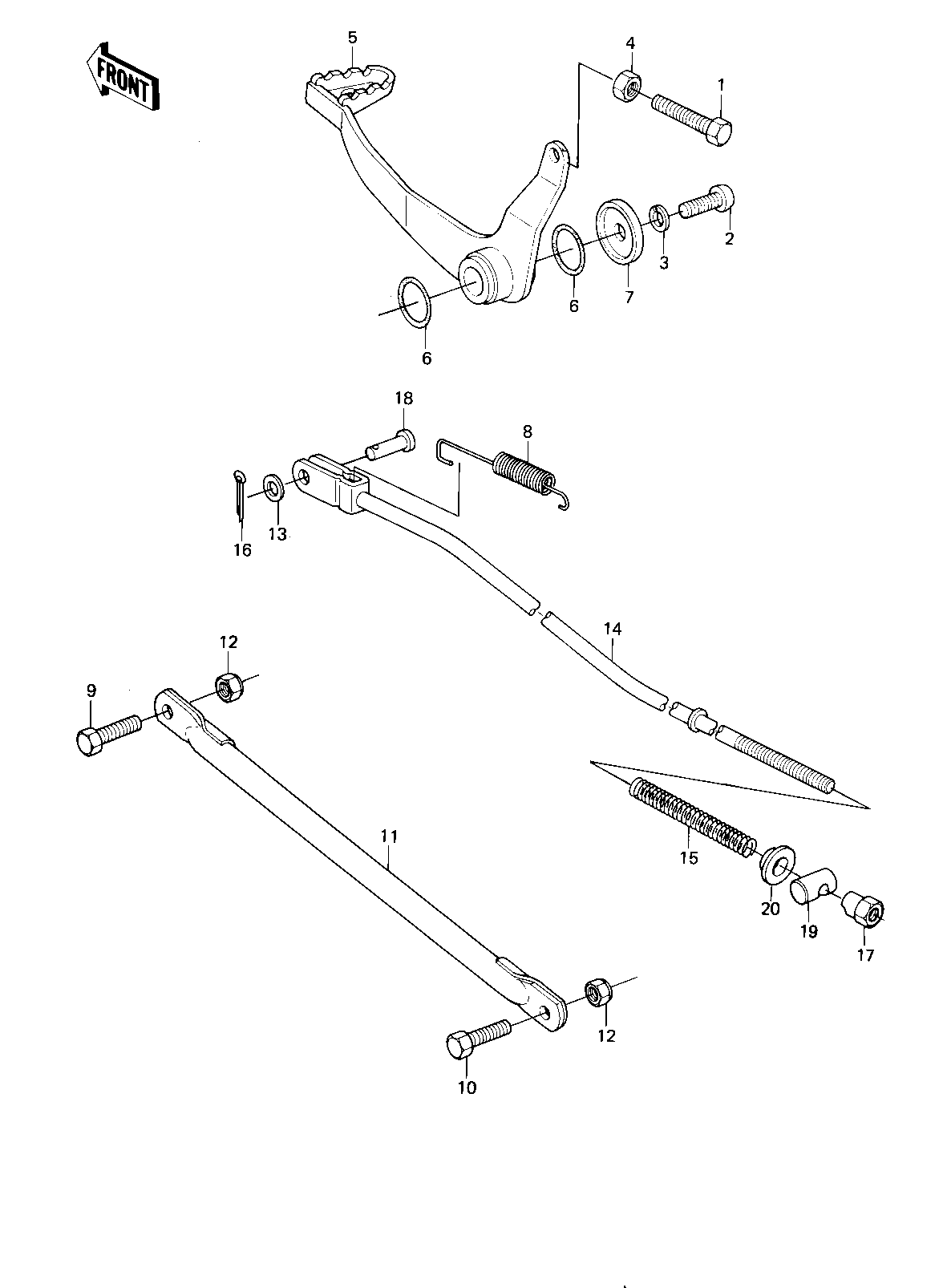

1980 KE175 - BRAKE PEDAL/TORQUE LINK ('80-'81 KE175-D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,6X20 | 1 | 112G0620 | 1 | ||
| SCREW PAN HEAD 6X12 | 2 | 220B0612 | 1 | ||
| WASHER SPRING 6MM | 3 | 461F0600 | 1 | ||
| NUT 6MM | 4 | 311B0600 | 1 | ||
| PEDAL,BRAKE | 5 | 43001-1020 | 1 | ||
| "0" RING,16MM | 6 | 670B2016 | 2 | ||
| WASHER,PLAIN,6MM | 7 | 92022-284 | 1 | ||
| SPRING,BRAKE PEDAL | 8 | 92081-1071 | 1 | ||
| BOLT,HEX HEAD,10X22 | 9 | 113G1022 | 1 | ||
| BOLT,10X28 | 10 | 113G1028 | 1 | ||
| TORQUE LINK,REAR BRAK | 11 | 43007-048 | 1 | ||
| NUT,10MM | 12 | 92019-016 | 2 | ||
| WASHER PLAIN 6MM | 13 | 410B0600 | 1 | ||
| ROD,BRAKE | 14 | 43011-1009 | 1 | ||
| SPRING,BRAKE ROD | 15 | 43012-001 | 1 | ||
| PIN COTTER 2.0X15 | 16 | 550D2015 | 1 | ||
| NUT-BRAKE ROD ADJUST | 17 | 92015-042 | 1 | ||
| PIN-BRAKE ROD FITTING | 18 | 92043-064 | 1 | ||
| PIN-BRAKE ROD | 19 | 92043-065 | 1 | ||
| COLLAR | 20 | 92027-122 | 1 |
