Parts Diagrams |

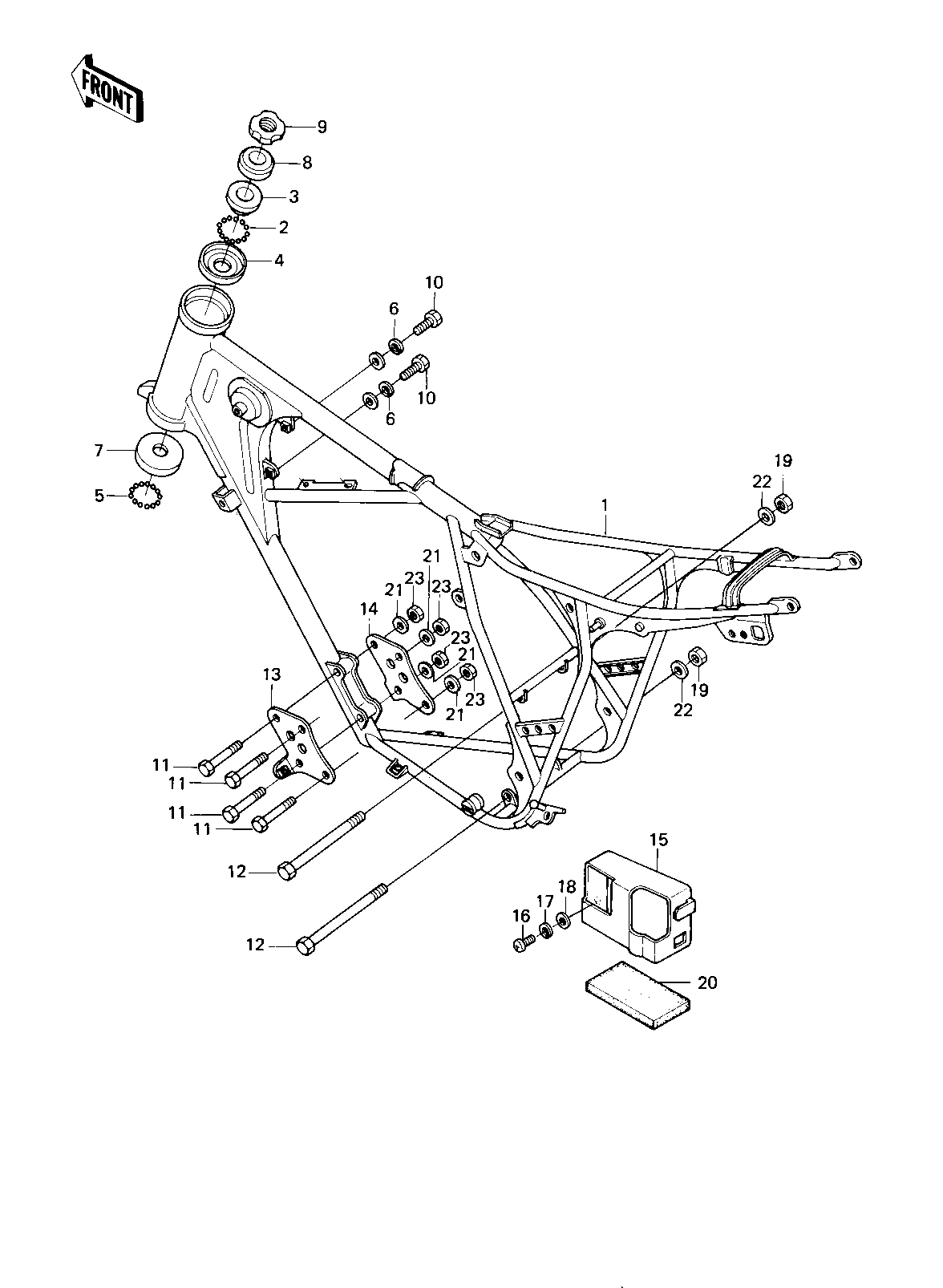

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME | 1 | 32002-1142 | 1 | ||
| BALL STEEL 3/16' | 2 | 600A0600 | 23 | ||
| CONE,STRG STM BRG,UP | 3 | 92047-014 | 1 | ||
| RACE,STRG STM BEARING | 4 | 92048-009 | 1 | ||
| BALL STEEL 1/4' | 5 | 600A0800 | 19 | ||
| COLLAR,REAR FENDER | 6 | 92027-1181 | 2 | ||
| RACE STEERING BEARING | 7 | 92048-005 | 1 | ||
| CAP,STEERING STEM | 8 | 46098-018 | 1 | ||
| NUT,STEERING STEM | 9 | 92090-022 | 1 | ||
| BOLT-UPSET,6X40 | 10 | 112G0640 | 2 | ||
| BOLT-FLANGE | 11 | 92001-1582 | 4 | ||
| BOLT,HEX HEAD,10X120 | 12 | 92001-1247 | 2 | ||
| PLATE,ENGINE MOUNT,LH | 13 | 13169-1156 | 1 | ||
| PLATE,ENGINE MOUNT,RH | 14 | 13169-1157 | 1 | ||
| COVER,BATTERY | 15 | 14025-1048 | 1 | ||
| SCREW PAN HEAD 6X12 | 16 | 220B0612 | 1 | ||
| WASHER SPRING 6MM | 17 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 18 | 411B0600 | 1 | ||
| NUT,LOCK,10MM | 19 | 92019-021 | 2 | ||
| MAT,BATTERY | 20 | 32103-027 | 1 | ||
| WASHER PLAIN 8MM | 21 | 411B0800 | 4 | ||
| WASHER PLAIN 10MM | 22 | 411B1000 | 2 | ||
| NUT,LOCK,8MM | 23 | 92015-1124 | 4 |
