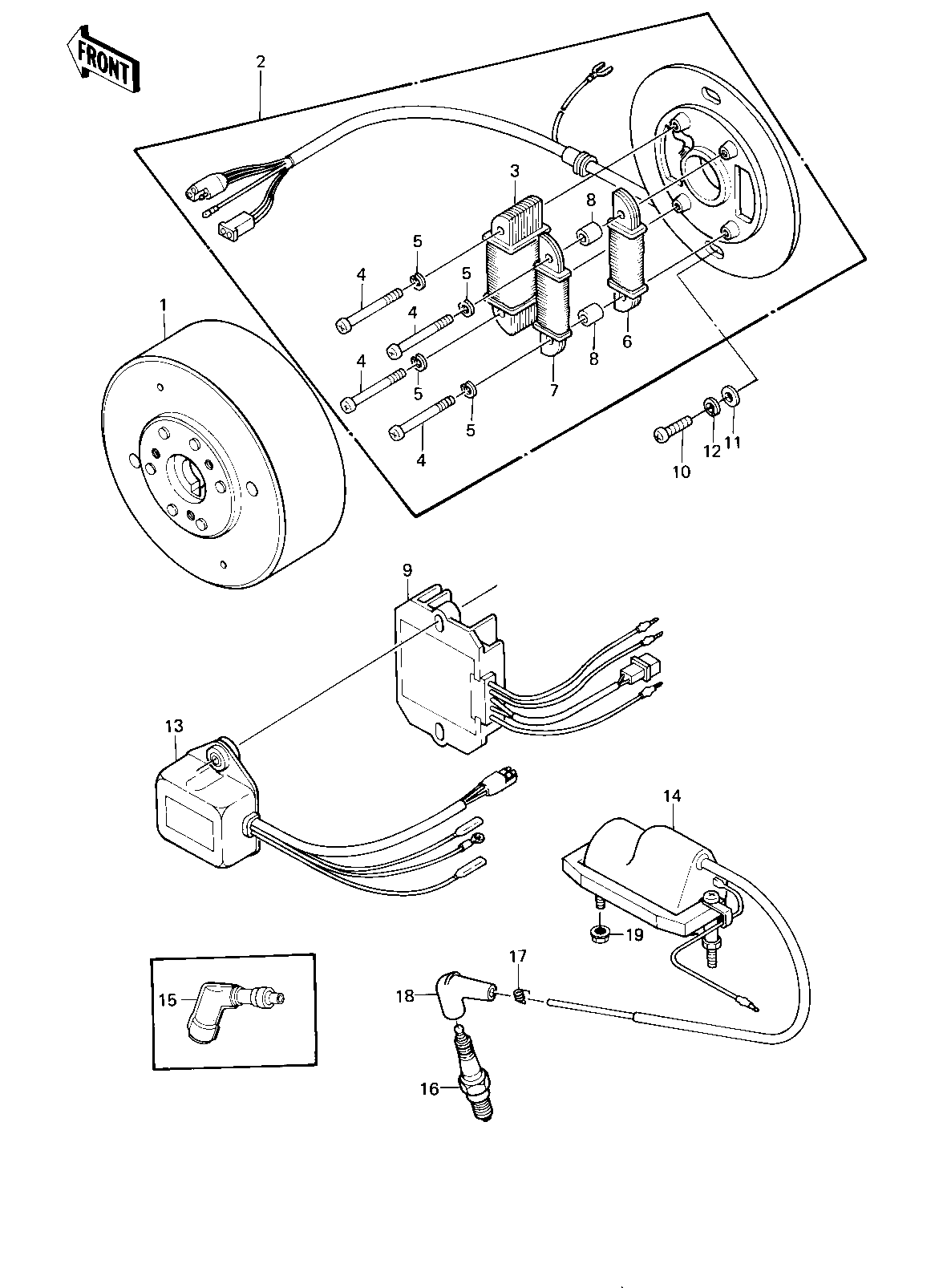

1980 KE175 - IGNITION/GENERATOR/REGULATOR
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FLYWHEEL,MAGNETO | 1 | 21050-1013 | 1 | ||
| STATOR ASSY,MAGNETO | 2 | 21003-1031 | 1 | ||
| COIL,CHARGING | 3 | 59031-1003 | 1 | ||
| SCREW-PAN-CROS | 4 | 220B0540 | 4 | ||
| WASHER SPRING 5MM | 5 | 461F0500 | 4 | ||
| COIL,EXITING | 6 | 21049-1006 | 1 | ||
| COIL,PULSING | 7 | 59026-1008 | 1 | ||
| COLLAR,COIL | 8 | 92027-1221 | 2 | ||
| REGULATOR,VOLTAGE | 9 | 21066-1012 | 1 | ||
| SCREW PAN HEAD 6X20 | 10 | 220B0620 | 2 | ||
| WASHER PLAIN 6MM | 11 | 410B0600 | 2 | ||
| WASHER SPRING 6MM | 12 | 461F0600 | 2 | ||
| IGNITER | 13 | 21119-1003 | 1 | ||
| COIL,IGNITION | 14 | 21121-1012 | 1 | ||
| CAP,SPARK PLUG | 15 | 21160-005 | 1 | USE FOR CANADIAN MARKET | |
| SPARK PLUG B7ES | 16 | B7ES | 1 | ||
| SPRING-SPARK PLUG CAP | 17 | 92101-001 | 1 | ||
| CAP SPARK PLUG | 18 | 21130-009 | 1 | ||
| NUT-6MM | 19 | 92015-1078 | 2 |
